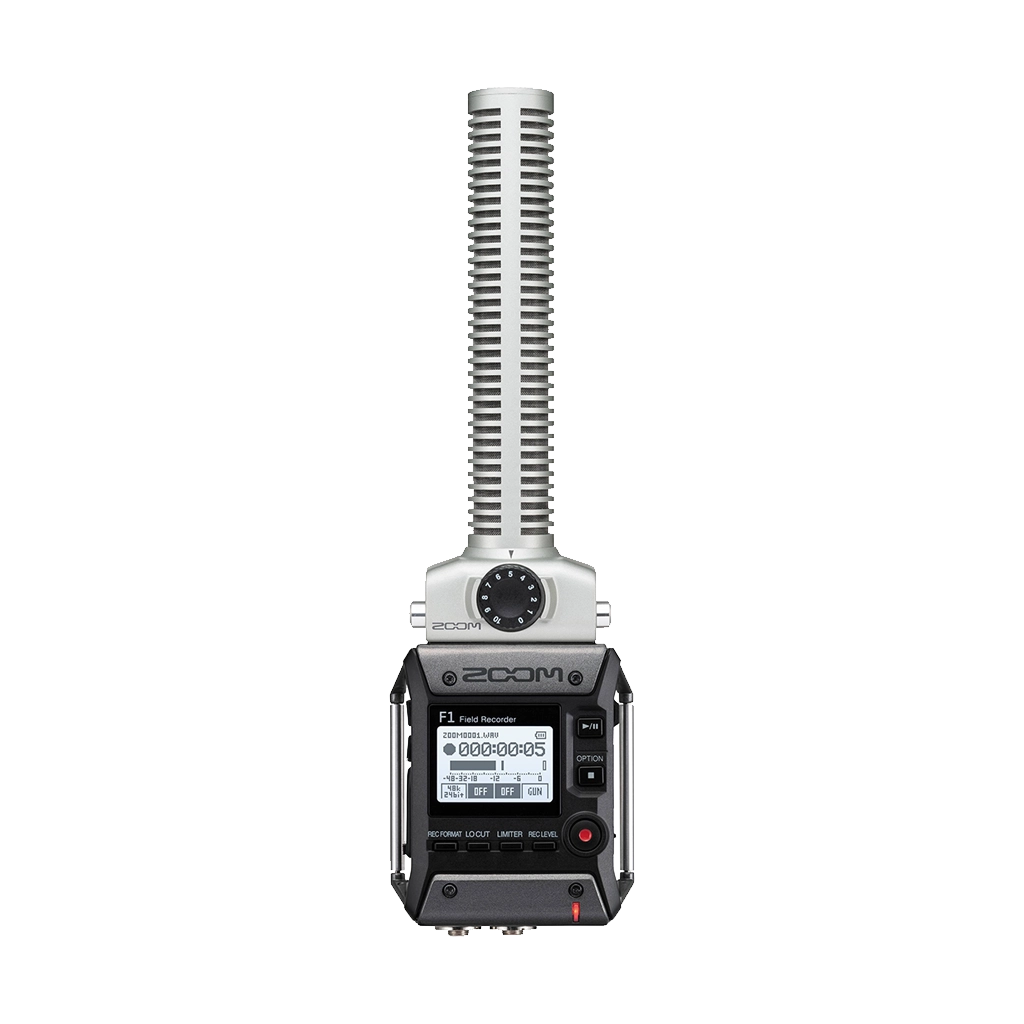

Zoom F1 Field Recorder with Shotgun Microphone
Choose PayGate at checkout for MobiCred Payments.
- 2-Channel Field Audio Recorder
- SGH-6 Shotgun Microphone
- SMF-1 Shockmount Attaches to Camera
- 3.5mm Stereo Mic/Line Input
- 24-Bit/96 kHz Audio, WAV and MP3
- On-Board Limiter and Auto-Level Control
- One-Touch Controls, Easy-to-Read Display
- Up to 32GB on microSD or microSDHC Card
- 2 x AAA Batteries Record up to 6.5 Hours
- Windscreen, Audio Cable for Camera
Orms Bellville
Orms Cape Town
Zoom F1 Field Recorder with Shotgun Microphone
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 2-Channel Field Audio Recorder
- SGH-6 Shotgun Microphone
- SMF-1 Shockmount Attaches to Camera
- 3.5mm Stereo Mic/Line Input
- 24-Bit/96 kHz Audio, WAV and MP3
- On-Board Limiter and Auto-Level Control
- One-Touch Controls, Easy-to-Read Display
- Up to 32GB on microSD or microSDHC Card
- 2 x AAA Batteries Record up to 6.5 Hours
- Windscreen, Audio Cable for Camera
Choose PayGate at checkout for MobiCred Payments.
- 2-Channel Field Audio Recorder
- SGH-6 Shotgun Microphone
- SMF-1 Shockmount Attaches to Camera
- 3.5mm Stereo Mic/Line Input
- 24-Bit/96 kHz Audio, WAV and MP3
- On-Board Limiter and Auto-Level Control
- One-Touch Controls, Easy-to-Read Display
- Up to 32GB on microSD or microSDHC Card
- 2 x AAA Batteries Record up to 6.5 Hours
- Windscreen, Audio Cable for Camera
The professional Zoom F1 Field Recorder with the Shotgun Mic is a 2-channel recording device that connects onto the shock mount that attaches to your digital camera, along with the audio output 3.5mm stereo cable to record high-quality audio directly to the microSD card in WAV and MP3 format for post-production or straight to the camera.
Operate this professional device in bright sunlight as it features a monochromatic display for better viewing of your battery life, monitor your audio levels and also have better control with the one-touch control buttons.
The Zoom F1 Field Recorder with the Shotgun microphone makes it the ideal device for filmmakers as they have full access of proper audio levels and with the integrated on-board limiter to keep your levels safe when spikes in loud environments.
Features at a glance
- Two-channel audio recorder Device
- Compatible with Zoom microphone capsules
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- One-touch button controls for better control over your audio levels
- 1.25” monochrome LCD display
- Rec Hold function to avoid accidental operation of buttons
- Stereo 3.5mm Mic/Line In mini phone jack with Plug-in power (2.5V)
- Stereo 3.5mm Phone/Line Output jack with dedicated volume control
- Built in limiter and auto level control to avoid clipping
- Pre-Record function
- Tone generator for calibrating audio levels between the Zoom F1 microphone and a DSLR or video camera without the need for an attenuator cable
- Sound marker function that outputs quick tone to make syncing audio and video easy
- Records and stores directly to micro SD and SDHC cards up to 32 GB
- Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Record up to 10 hours of high quality audio with alkaline batteries (when using lavalier
- Zoom F1 Field Recorder with Shotgun Microphone
- SGH-6 Shotgun Microphone
- SMF-1 Shockmount
- WSS-6 Windscreen
- SMC-1 Stereo Mini Cable for Camera
- 2 x AAA Batteries
Zoom F1 Specs
Type | 2-channel audio recorder |
Recording Formats | WAV 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit BWF-compliant MP3 48, 128, 192, 256, 320 kb/s Mono/stereo ID3v1 tags supported |
Recording Media | microSD and microSDHC cards (Class 4 or higher, up to 32 GB) |
Inputs | Mic In Proprietary 10-pin connector, compatible with all Zoom mic capsules Mic/Line In Connector: 1/8" / 3.5 mm stereo mini, with screw lock Plug-In Power: 2.5 V Input Gain: -12 to +36 dB Input Impedance: 2 kOhms or more |
Outputs | Connector: 1/8" / 3.5 mm stereo mini, with screw lock Maximum Output Level: 2 x 11 mW (into 32 Ohms load) |
Shotgun Microphone | Type: SGH-6, mono Polar Pattern: Supercardioid Sensitivity: -39 dB/1 Pa at 1 kHz Maximum Sound Pressure Input: 122 dB SPL Construction: Aluminum body |
USB | Connector Micro-USB Mass Storage Operation USB 2.0 high-speed Audio Interface Operation 2 x in / 2 x out 44.1 kHz/16-bit, 48 kHz/16-bit USB class-compliant Transfer method Asynchronous |
Power | 2 x AAA batteries, alkaline, NiMH, or lithium AD-17 AC adapter (available separately): 5 VDC / 1 A |
Recording Time | With SGH-6 Shotgun Mic Capsule (48 kHz/24-bit, Mono): Alkaline Batteries: 6.5 hours, approximately NiMH Batteries (750 mAh): 6 hours, approximately Lithium Batteries: 11 hours, approximately |
Dimensions (W x D x H) | 2.5 x 3.1 x 1.3" / 64.0 x 79.8 x 33.3 mm |
Weight | 120.0 g (without batteries) |
