Sony FR7 Cinema Line PTZ Camera
Choose PayGate at checkout for MobiCred Payments.
- Supports up to UHD 4K120 Video
- Sony E-Mount Lens Interchangeability
- 4K Full-Frame Sensor
- 12G-SDI, HDMI & Streaming Output
- Variable Electronic ND Filter
- Smooth, Slow Pan & Tilt Movement
- IR, IP & Web App Remote Control
- Flexible PoE+ Installation
- Genlock, Timecode & Tally Lamps
Orms Cape Town
Sony FR7 Cinema Line PTZ Camera
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Supports up to UHD 4K120 Video
- Sony E-Mount Lens Interchangeability
- 4K Full-Frame Sensor
- 12G-SDI, HDMI & Streaming Output
- Variable Electronic ND Filter
- Smooth, Slow Pan & Tilt Movement
- IR, IP & Web App Remote Control
- Flexible PoE+ Installation
- Genlock, Timecode & Tally Lamps
Choose PayGate at checkout for MobiCred Payments.
- Supports up to UHD 4K120 Video
- Sony E-Mount Lens Interchangeability
- 4K Full-Frame Sensor
- 12G-SDI, HDMI & Streaming Output
- Variable Electronic ND Filter
- Smooth, Slow Pan & Tilt Movement
- IR, IP & Web App Remote Control
- Flexible PoE+ Installation
- Genlock, Timecode & Tally Lamps
The Sony FR7 Cinema Line PTZ Camera is designed to capture cinematic, full-frame footage in PTZ format. Making it perfect for applications such as broadcast use, houses of worship, reality shows, and live events like concerts and sports events.
The Sony FR7 Cinema Line PTZ Camera features the unique ability to be used with Sony E-Mount interchangeable lenses. The large image sensor provides 15+ stops of dynamic range, captures up to UHD 4K120 video, offers live streaming, supports S-Cinetone, Cine EI, and MLUT looks for matching select Sony cameras, and enables you to create shallow depth-of-field bokeh effects.
Expressive 4K Imaging
Full-Frame Sensor
The Sony FR7 Cinema Line PTZ Camera combines a 4K full-frame sensor as well compatibility with Sony E-Mount lenses to enable you to create expressive, as well as cinematic imagery.
Featuring up to 15+ stops of dynamic range as well as a base ISO of 800 that can be expanded from 12800 to 409600 to capture optimal video in an array of lighting conditions.
Sony E Mount
The Sony FR7 Cinema Line PTZ Camera features compatibility with Sony E-Mount lenses which covers a range of 12mm to 1200mm, this will enable you to capture the widest vistas and the closest details.
For impressive resolution and pleasing bokeh, the G Master (GM) lens series can be used.
Imaging Functions
You can capture rich detail as well as a wide range of colours using Sony S-Log3 as well as create nuanced contrast with Hybrid Log Gamma (HLG).
Built- In ND Filters
The Sony FR7 Cinema Line PTZ Camera features integrated electronic ND filters that offer variable filtration ranging from 1/4 (2 Stops) right through to 1/1218 (7 Stops). The ND filter is used to compensate for changes in exposure without affecting the depth of field.
UHD 4K 120p Recording
The Sony FR7 Cinema Line PTZ Camera enables you to record UHD 4K video at rates of up to 120 fps for slow-motion effects.
Remote & Robotics Functions
IP Control
Use the IP remote function to control your camera from a distance like a broadcast truck and/or to control multiple cameras simultaneously.
Smooth Movements
With the Sony FR7 Cinema Line PTZ Camera, you are able to slowly and smoothly make pan and tilt movements, this enables you to unobtrusively zoom in on the action.
Video Output & Streaming
You will find HDMI video output as well as up to 12G-SDI video outputs.
Control Options
By using the included IR remote you can pan, tilt, zoom, focus, record, playback, as well as many more camera settings.
Mounting
The Sony FR7 Cinema Line PTZ Camera can easily be mounted on a tripod or riser using the two 1/4"-20 threads. Furthermore, you can use the 15mm rod mounts to attach additional camera accessories.
Cinematic Multicamera Use
Cine-Style Capture
Featuring an S-Cinestone picture profile, this brings a cinematic look to PTZ capture and this matches footage from other Sony cameras. When using S-Log3 or raw recording can be used with Cine EI mode with MLUT management. As well as XAVC recording with metadata capture supporting up to 10-bit, 4:2:2 colour ad HDR recording.
Hybrid Autofocus
With fast hybrid autofocus featuring face detection as well as touch tracking. This enables you to keep even dynamic actions in perfect focus.
Up to 100 Presets
The Sony FR7 Cinema Line PTZ Camera offers quick control with up to one hundred preset positions.
Interface

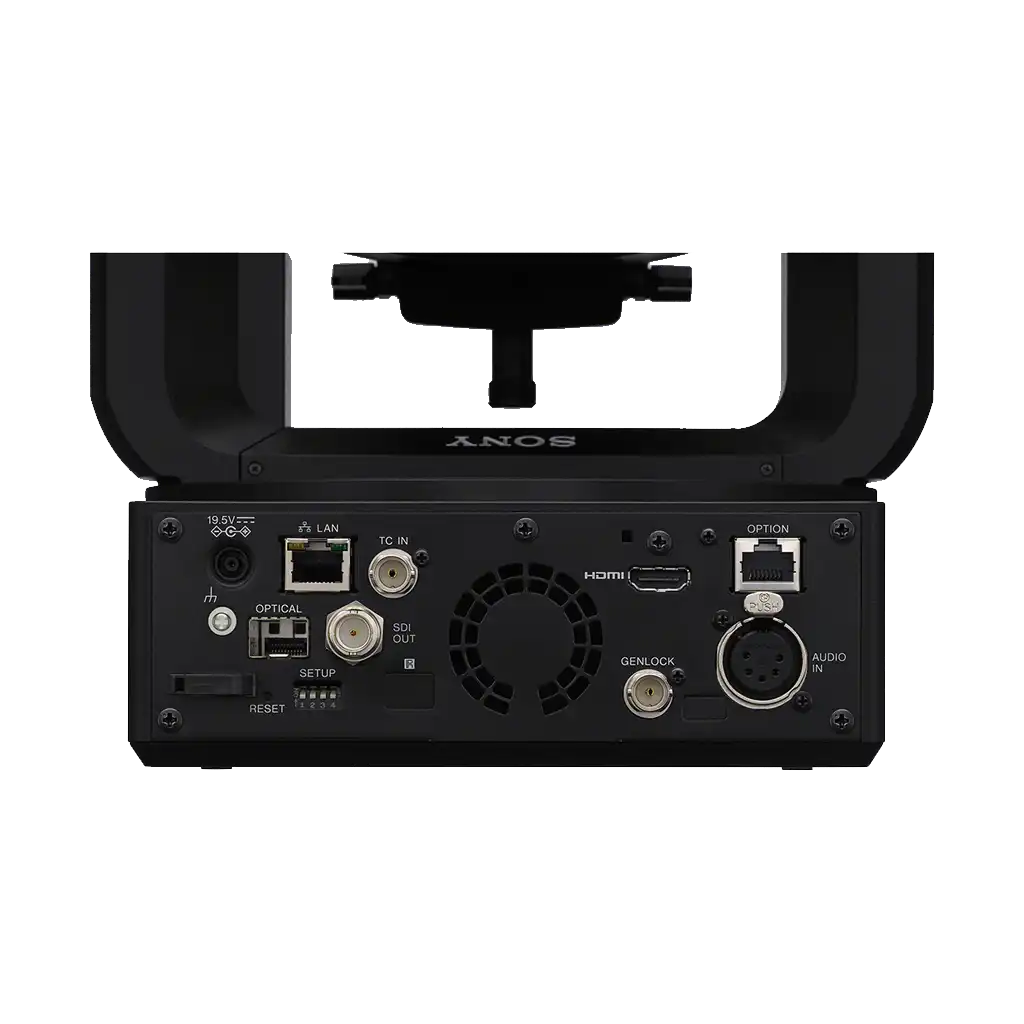

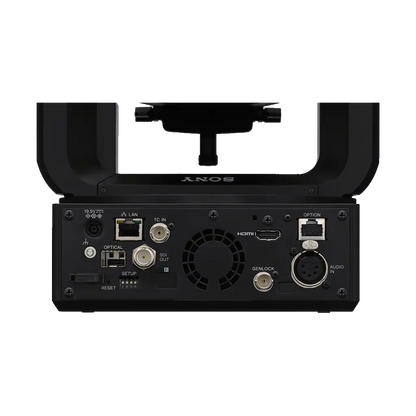

The Sony FR7 Cinema Line PTZ Camera features a robust interface, that includes a LAN port for network as well as PoE++ use, timecode input, genlock connector, as well as red and green tally lights.
You will also find dual media slots that are compatible with both CFextress Type A as well as SDXC memory cards.
- Sony FR7 Cinema Line PTZ Camera
- RMT-RC1 Remote Commander
- Lens Mount Cap for Body
- AC Adapter
- Power Cord
- HDMI Cable Clamp
Imaging
Lens Mount | Sony E |
Sensor Type | CMOS Sensor |
Sensor Resolution | Actual: 12.9 Megapixel Effective: 10.3 Megapixel |
Lens Communication | Yes, with Autofocus Support |
Built-In ND Filter | 2 to 7 Stop Electronic ND Filter |
Focus Control | Autofocus |
Autofocus Points | Phase Detection: 627 |
Exposure Control
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/8000 to 1 Second |
ISO Sensitivity | 800 to 12,800 (Extended: 409,600) |
Gain | -3 to 30 dB |
Advertised Dynamic Range | 15 Stops |
Flip / Mirror Support | Image Flip |
White Balance | 2000 to 15,000K Presets: ATW, Set A |
Video Capture
External Recording Modes | Raw 16-Bit via SDI/BNC 4096 x 2160 at 24.00p/25p/50p 3840 x 2160 at 25p/50p 1920 x 1080 at 24.00p/25p/50i/50p HDMI 4096 x 2160 at 24.00p/25p/50p 3840 x 2160 at 25p/50p 1920 x 1080 at 24.00p/25p/50i/50p 720 x 480 at 59.94p 720 x 576 at 50p |
Internal Recording Modes | XAVC-I 4:2:2 10-Bit DCI 4K (4096 x 2160) at 24.00p/25p/50p [240 to 600 Mb/s VBR] UHD 4K (3840 x 2160) at 25p/50p [240 to 600 Mb/s VBR] 1920 x 1080 at 25p/50p [89 to 222 Mb/s] XAVC-L UHD 4K (3840 x 2160) at 25p/50p [100 to 150 Mb/s VBR] 1920 x 1080 at 25p/50pp [35 to 50 Mb/s VBR] |
Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio |
Gamma Curve | HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard |
IP Streaming | NDI|HX, RTSP, SRT: 640 x 360 to 4096 x 2160 (0.5 to 80.00 Mb/s) |
Control
Presets | 3 via IR 100 via IP |
Move Speed | Pan: 0.02 to 60°/sec Tilt: 0.02 to 60°/sec |
Movement Range | Pan: 340° (-170 to 170°) Tilt: 225° (-30 to 195°) |
Tally Light | Yes |
Supported Control Protocols | IR VISCA |
Interface
Media/Memory Card Slot | Dual Slot: CFexpress Type A / SD |
Video I/O | 1 x BNC (12G-SDI) Output 1 x SFP+ Output 1 x HDMI Output |
Audio I/O | 1 x XLR 5-Pin Mic/Line (+48 V Phantom Power) Input |
Other I/O | 1 x BNC (Timecode) 1 x RJ45 (LAN) Control 1 x BNC (Genlock) 1 x RJ45 (Tally) |
Power
PoE Support | PoE++ 802.3bt |
Power I/O | 1 x Barrel (19.5 VDC) Input |
Power Consumption | PoE: to 71.3 W Power Supply: to 80 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
General
Mounting | 2 x 1/4"-20 Female for Tripod |
Sound Level | NC35 |
Dimensions (W x H x D) | 289 x 233 x 227 mm (Without Protrusions) |
Weight | 4.6 kg (Body Only) |
