Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalist, Presenters
- MMD 835 Dynamic Cardioid Mic Capsule
- Lightweight Handheld Transmitter
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Advanced Controls for Flexible Use
- Daylight-Readable Display
- 8-Hour AA Batteries
- Up to 12 Mics on Set / 1000 m Range
Orms Bellville
Orms Cape Town
Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalist, Presenters
- MMD 835 Dynamic Cardioid Mic Capsule
- Lightweight Handheld Transmitter
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Advanced Controls for Flexible Use
- Daylight-Readable Display
- 8-Hour AA Batteries
- Up to 12 Mics on Set / 1000 m Range
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalist, Presenters
- MMD 835 Dynamic Cardioid Mic Capsule
- Lightweight Handheld Transmitter
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Advanced Controls for Flexible Use
- Daylight-Readable Display
- 8-Hour AA Batteries
- Up to 12 Mics on Set / 1000 m Range
The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System features the proven combination of reliability and flexible control and broadcast quality sound Sennheiser has become the industry standard for. The perfect companion for videographers, journalists, and content creators.
Providing all the tools needed to adapt to the challenges that arise from working on set. This unit automatically scans for the strongest frequency at the location as well as the sensitivity on the transmitter offers the ability to change mic capsules for different polar patterns to suit the applications.

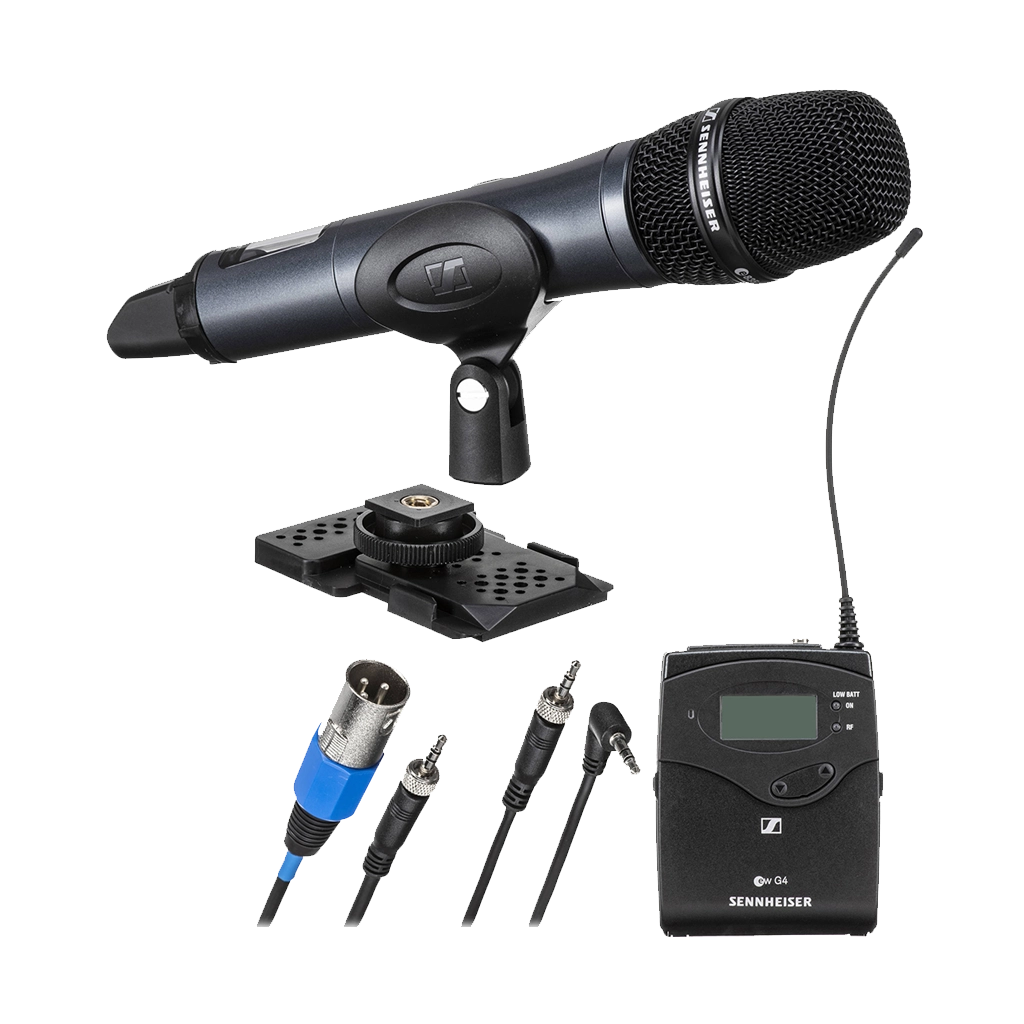

The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System includes a camera-mount receiver and an updated, lightweight handheld transmitter equipped with an MMD 835 cardioid capsule, this is ideal if you do not have time for positioning a mic on a person, or the need arises where the mic needs to be passed from one person the next. The receiver connects to a camcorder or any DSLR/mirrorless camera to capture crisp sounding audio for any application for weddings to man-on-the-street interviews.
- Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System provides reliable transmission for up to 1000 m.
- Featuring 20 frequency banks with up to 12 factory preset channels to prevent inter-modulation.
- Pilot tone squelch for eliminating RF noise when transmitter is turned off.
- The units transmitter as well receiver features a 4 step battery life indicator, with a 8 hour battery life cycle.
- The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System features a RF mute system.
- System is powered by AA batteries, or rechargeable BA 2015 Accupack batteries - Sold Separately.
- One can operate up to 12 wireless mics from the system at any given time.
- The EW 135P system can transmit to a unlimited number of EW series receivers.
- Mount Wireless Cardioid Handheld Microphone System
- Sennheiser EK 100 G4 Camera-Mount Wireless Receiver
- Sennheiser SKM 100 G4 Handheld Wireless Microphone Transmitter with No Mic Capsule
- Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
- Sennheiser MZQ1 Clip for SKM Wireless Handheld Microphone
- Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
- Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver
- Sennheiser CA2 Shoemount Adapter
System
Wireless Transmission | Analog UHF |
Number of RF Channels | 1680 |
Included Transmitters | 1 x Bodypack with Microphone |
Diversity | Antenna Diversity |
Frequency Step Size | 25 kHz |
Max Operating Range | 100.6 m (Line of Sight) |
Max Systems per Setup | 12 |
Deviation | 48 kHz (Peak) |
Modulation | Wideband FM |
Receiver
Form Factor | Camera-Mount |
Mounting Options | Shoe-Mount (with Included Hardware) |
Antenna | 1 x Flexible Whip, Fixed |
Number of Audio Channels | 1 |
Audio I/O | 1 x 3.5 mm TRS Female Unbalanced Output (Lockable) |
Gain Range | 42 dB (6 dB Steps) |
Audio Output Level | +12 dBu |
Squelch | 5 to 25 dBμV |
Adjacent Channel Isolation | >65 dB |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Battery Status, Output Level, RF Level) |
Housing | Metal |
Operating Temperature | -10 to 55°C |
Dimensions | 64 x 82 x 24 mm |
Weight | 160 g (with Batteries) |
Transmitter
Form Factor | Handheld |
Audio I/O | None |
Muting | None |
Audio Input Level | 3 V RMS (Max) |
Gain Range | 48 dB (6 dB Steps) |
Frequency Response | 80 Hz to 18 kHz (Mic) 80 Hz to 18 kHz (Line) |
Sync Method | IR |
Antenna | 1 x Internal |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) 1 x Sennheiser Accupack (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength) |
Housing | Metal |
Dimensions | 50 x 265 mm |
Weight | 450 g (with Batteries) |
Microphone
Form Factor | Handheld Capsule |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Maximum SPL | 154 dB SPL Peak |
Sensitivity | 2.1 mV/Pa |
