Saramonic UwMic9 Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalism, Video, Vlog
- SR-M1 Omnidirectional Lav Mic
- Rugged Bodypack Transmitter
- 2-Channel Camera-Mount Receiver
- Receiver Can Run Two Mics
- 96 Auto-Scan Frequencies
- Headphone Output
- 6-Hr AA Batteries
- Up to 8 Mics on Set / 100m Range
Orms Bellville
Orms Cape Town
Saramonic UwMic9 Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalism, Video, Vlog
- SR-M1 Omnidirectional Lav Mic
- Rugged Bodypack Transmitter
- 2-Channel Camera-Mount Receiver
- Receiver Can Run Two Mics
- 96 Auto-Scan Frequencies
- Headphone Output
- 6-Hr AA Batteries
- Up to 8 Mics on Set / 100m Range
Choose PayGate at checkout for MobiCred Payments.
- For Mobile Journalism, Video, Vlog
- SR-M1 Omnidirectional Lav Mic
- Rugged Bodypack Transmitter
- 2-Channel Camera-Mount Receiver
- Receiver Can Run Two Mics
- 96 Auto-Scan Frequencies
- Headphone Output
- 6-Hr AA Batteries
- Up to 8 Mics on Set / 100m Range

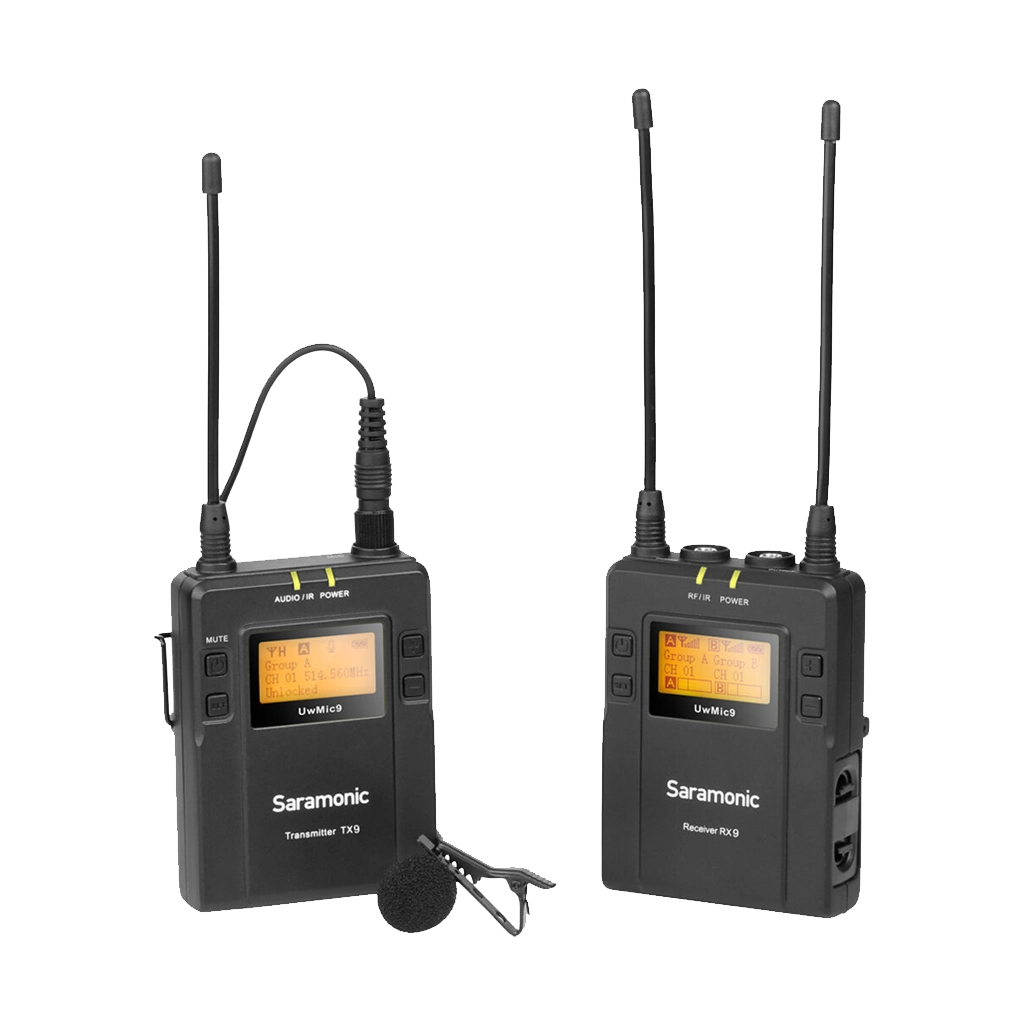

The Saramonic UwMic9 Camera-Mount Wireless Omni Lavalier Microphone System is quite handy and portable. The wireless RX9 Receiver perfectly mounts to the camera and the TX9 Transmitter features a 1/8 type mic, which can easily be attached to you along with the supplied lavalier microphone to capture audio in a variety of environments, such as video; field recording; interviews, ENG applications and broadcast TV.
The included RX9 camera-mountable receiver is equipped with a wide switching RF bandwidth and a bright and easy to read LCD display. Also, it features built-in infrared synchronisation between the transmitter and receiver, equipped with an auto-can function. Additionally, the headphone jack delivers real-time monitoring which is quite useful for cameras without a monitor output. The TX9 Transmitter incorporates a crystal-controlled PPL synthesizer and is also equipped with a muting function.
Saramonic UwMic9 Camera-Mount Wireless Omni Lavalier Microphone System (514 to 596 MHz)
- 1 x Saramonic UwMic9-RX9 Dual-Channel Camera-Mount Wireless Receiver (514 to 596 MHz)
- 1 x Saramonic TX9 96-Channel Digital UHF Wireless Bodypack Transmitter with Lavalier Mic (514 to 596 MHz)
- Shoemount Adapter
- Mic Clip
- Windscreen
- 3.5mm to 3.5mm Coiled Locking Output Cable
- 3.5mm to XLR-M Locking Output Cable
- 2 x Belt Clips
System
Wireless Technology | Analog UHF |
Number of RF Channel Frequencies | 96 |
Included Transmitters | 1 x Bodypack with Microphone |
RF Frequency Band | 514 to 596 MHz |
Max Operating Range | 100.6 m (Line of Sight) |
Max Transmitters per Band | 8 |
Latency | 12 ms |
Deviation | ±5 kHz |
Receiver
Receiver Type | Camera-Mount |
Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
Antenna | 2 x 1/4 Wave External, Fixed (Top-Mount) |
Number of Audio Channels | 2 |
Audio I/O | 1 x 3.5 mm TRS Female Unbalanced Output (Lockable) 1 x 3.5 mm TRS Female Unbalanced Headphone Output |
Audio Output Level | -60 dBV |
Frequency Response | 40 Hz to 18 kHz ±3 dB |
Power Requirements | Battery |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 6 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (AF Level, Battery Status, Channel, Level) |
Housing | Metal |
Dimensions | 63.5 x 170.9 x 30 mm |
Weight | 218.3 g (without Batteries) |
Transmitter
Transmitter Type | Bodypack |
RF Output Power | 10 / 20 / 30 mW |
Audio I/O | 1 x 3.5 mm TRS Female Unbalanced Input (Lockable) |
Muting | Off/On Switch |
Audio Input Level | 60 dBV (Mic Level) |
Frequency Response | 40 Hz to 18 kHz ±3 dB |
Sync Method | IR |
Antenna | 1 x 1/4 Wave External, Fixed (Beltpack) |
Power Requirements | Battery |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 6 Hours (Alkaline) |
Display & Indicators | 1 x Backlit LCD (Battery Status, Channel, Mute, RF Output Power) |
Housing | Metal |
Dimensions | 63.5 x 170.9 x 30 mm |
Weight | 211.4 g (without Batteries) |
Microphone
Microphone Type | Lavalier |
Sound Field | Mono |
Polar Pattern | Omnidirectional |
Output Connectors | 1 x 3.5 mm TRS Male Unbalanced (Lockable) |
