Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer
Choose PayGate at checkout for MobiCred Payments.
- Portable Microphone/Guitar Interface
- 2 Simultaneous Input Channels
- XLR, 1/4", and 3.5mm Connection Points
- Smartphone & DSLR Connectivity
- Toggle Between Mono and Stereo Operation
- 48V Phantom Power for Condenser Mics
- 2 Gain-Control Thumbwheels
- Headphone Out for Real-Time Monitoring
- Outputs to Stereo 3.5mm Cable
- Powered by 9V Battery
Orms Bellville
Orms Cape Town
Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Portable Microphone/Guitar Interface
- 2 Simultaneous Input Channels
- XLR, 1/4", and 3.5mm Connection Points
- Smartphone & DSLR Connectivity
- Toggle Between Mono and Stereo Operation
- 48V Phantom Power for Condenser Mics
- 2 Gain-Control Thumbwheels
- Headphone Out for Real-Time Monitoring
- Outputs to Stereo 3.5mm Cable
- Powered by 9V Battery
Choose PayGate at checkout for MobiCred Payments.
- Portable Microphone/Guitar Interface
- 2 Simultaneous Input Channels
- XLR, 1/4", and 3.5mm Connection Points
- Smartphone & DSLR Connectivity
- Toggle Between Mono and Stereo Operation
- 48V Phantom Power for Condenser Mics
- 2 Gain-Control Thumbwheels
- Headphone Out for Real-Time Monitoring
- Outputs to Stereo 3.5mm Cable
- Powered by 9V Battery

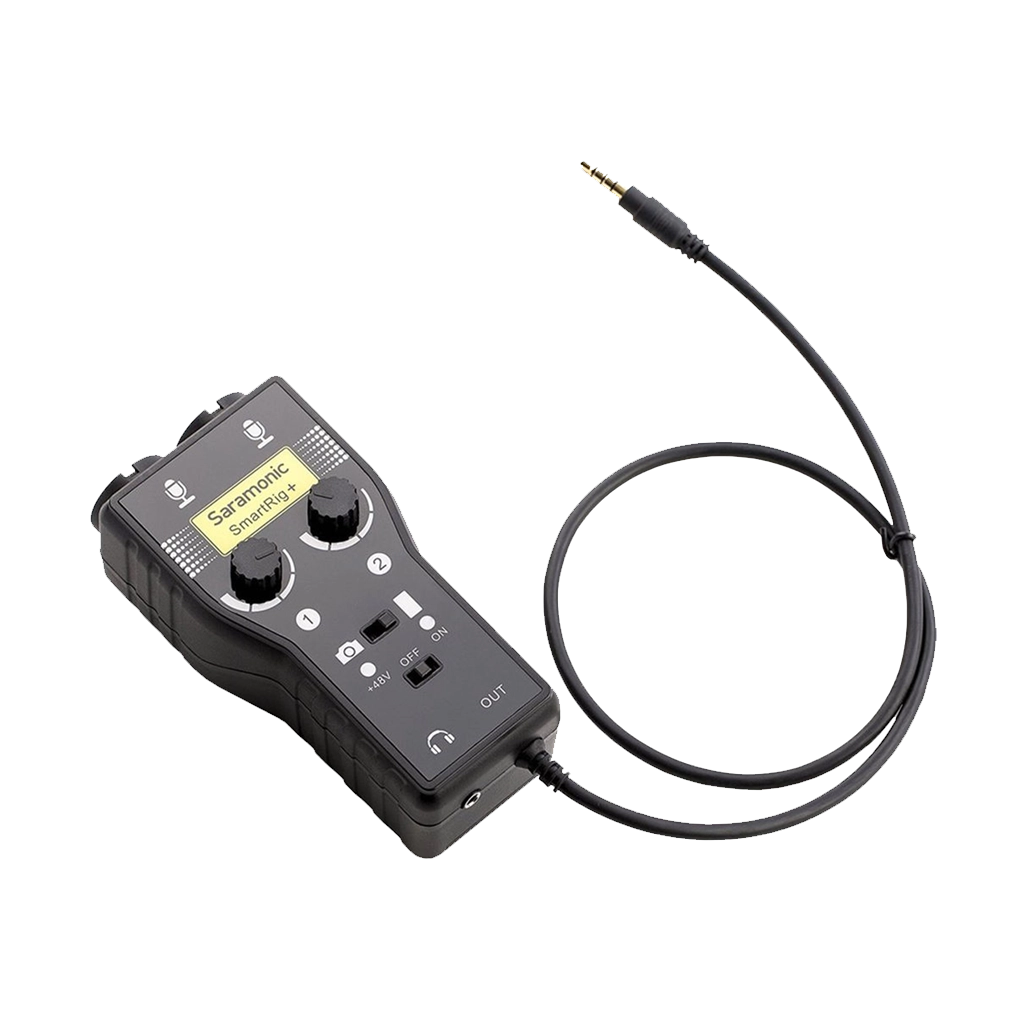

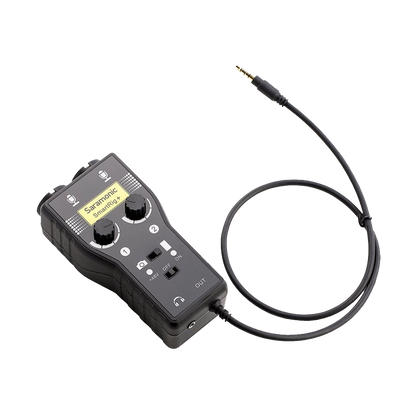

The Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer is designed to enable you to record professional-grade quality from your microphone/guitar straight to your smartphone, tablet, camera, or camcorder.
The Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer features two independent channels allowing you to connect as well as gain multiple microphones or guitars simultaneously.

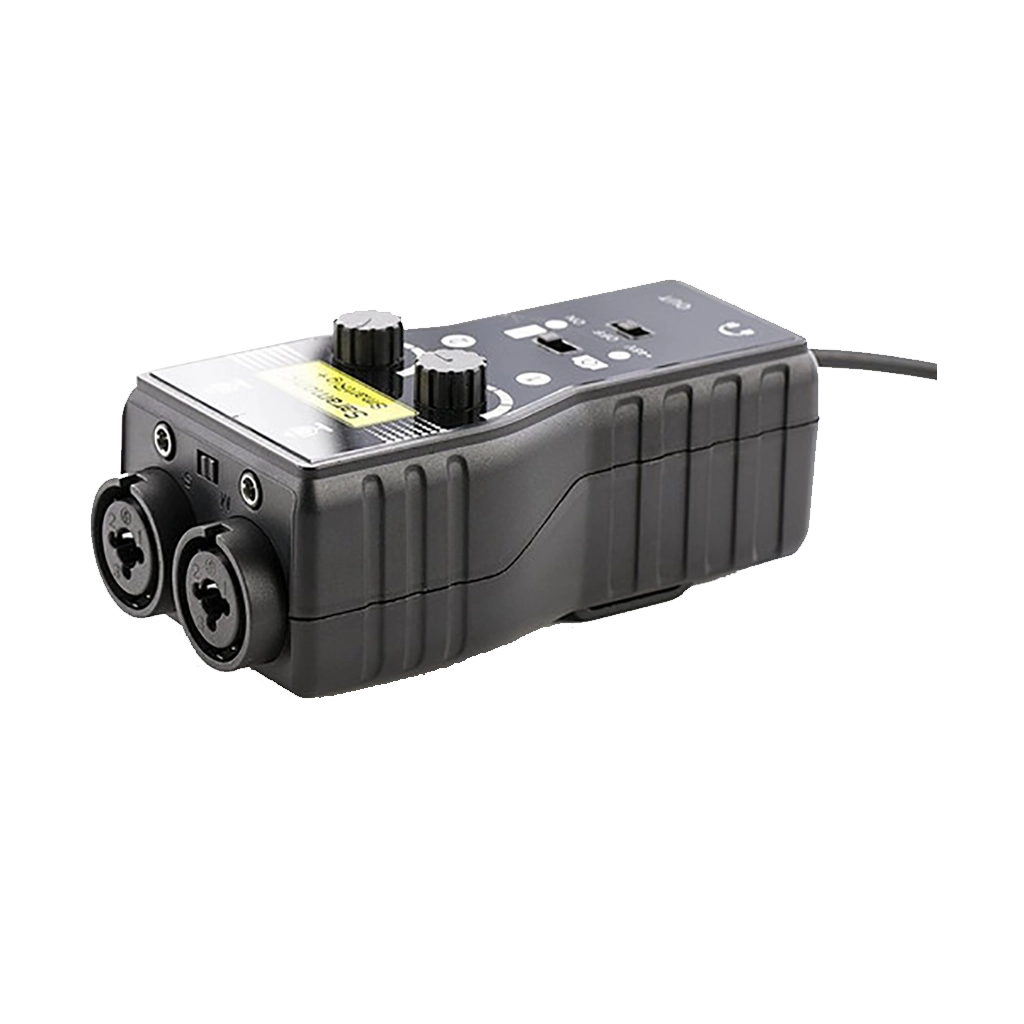

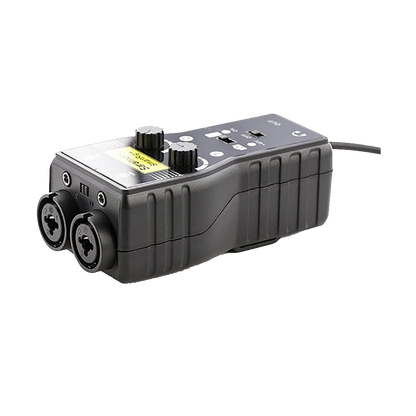

Featuring three types of input to accommodate any type of setup. With two combo XLR / 1/4" inputs, and two 1/8" jacks to enable you to connect any instrument or microphone.
Additionally, you are able to switch between mono and stereo modes as needed.
- Outputs to a standard 3.5mm cable for use with smartphones, cameras, and other devices
- Provides 48V phantom power for microphones
- 3.5mm headphone output for real-time sound monitoring
- Two gain control thumbwheels make it easy to set precise levels
- Powered by one 9V battery
Saramonic SmartRig+ 2-Channel XLR Microphone Audio Mixer
Mixer
Form Factor | Mobile |
Display | 1 x Monochrome LCD |
Channels of I/O | 2 Input / 1 Output |
Number of Mic Preamps | 2 |
Built-In Microphone | None |
Input Level Adjustment | 2 x Knob |
Signal Processing
Pad | None |
Gain/Trim Range | 23 dBu |
High-Pass Filter | None |
Connectivity
Analog Audio I/O | 2 x Combo XLR-1/4" TRS Input 2 x 3.5 mm TRS Input 1 x 3.5 mm TRRS Output 1 x 3.5 mm TRS Output |
Phantom Power | 48 V (on 2 Channels) |
Phantom Power Current | 13 mA |
Digital Audio I/O | None |
Host Connection / USB | None |
Performance
Frequency Response | 20 Hz to 20 kHz |
Max Output Level | 2 Vrms |
SNR | 80 dB (-30 dBu Input, 1 kHz) |
THD | < 0.01% (-30 dBu Input, 1 kHz) |
Connectivity
OS Compatibility | Android iOS |
Included Software | None |
Mobile Device Compatibility | iPhone iPad iPod Touch Android Smartphone |
Power
Power Requirements | Battery |
Battery Type | 1 x 9V |
Physical
Dimensions | 120 x 40 x 40 mm |
Weight | 130.0 g |
