Roland V-40HD Multi-Format Video Switcher
Choose PayGate at checkout for MobiCred Payments.
- 4 Multi-Format Channels from 12 Inputs
- HDMI / Component / Composite Inputs
- Broadcast Quality Scaler on Each Input
- Up to 1080p/60/50 Input & Output Formats
- 4:4:4 / 10-Bit Processing (4:2:2 Output)
- HDMI Multi-Viewer Output
- Compositing Engine
- Built-In HDCP Mode
- Audio Input Bus
- Up to 25 Setting Configurations
Orms Bellville
Orms Cape Town
Roland V-40HD Multi-Format Video Switcher
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 4 Multi-Format Channels from 12 Inputs
- HDMI / Component / Composite Inputs
- Broadcast Quality Scaler on Each Input
- Up to 1080p/60/50 Input & Output Formats
- 4:4:4 / 10-Bit Processing (4:2:2 Output)
- HDMI Multi-Viewer Output
- Compositing Engine
- Built-In HDCP Mode
- Audio Input Bus
- Up to 25 Setting Configurations
Choose PayGate at checkout for MobiCred Payments.
- 4 Multi-Format Channels from 12 Inputs
- HDMI / Component / Composite Inputs
- Broadcast Quality Scaler on Each Input
- Up to 1080p/60/50 Input & Output Formats
- 4:4:4 / 10-Bit Processing (4:2:2 Output)
- HDMI Multi-Viewer Output
- Compositing Engine
- Built-In HDCP Mode
- Audio Input Bus
- Up to 25 Setting Configurations
Roland offers sound & video engineers a complete and portable HD studio in the Roland V-40HD Multi-Format Video Switcher with 25 setting configurations. The Multi-Format Video Switcher however doesn't require that any input sources have to be matched to the output resolution, and with every input that's incorporated in the Roland Multi-Format Video Switcher has its own broadcast quality scaler that can individually scale, crop and zoom, stretch each source as need for the desired resolution.
This beautiful Video Switcher from Roland consists of an audio mixer, video switcher and a video/audio streaming which is perfect for schools, sports events, corporate events, meetings, churches and basically any other event.
Th Roland V-40HD is a powerful video switcher that allows you to input background music, narration, or other analog sound sources, mix and sync the video and audio and then output the result via HDMI signal.
Inputs and Outputs

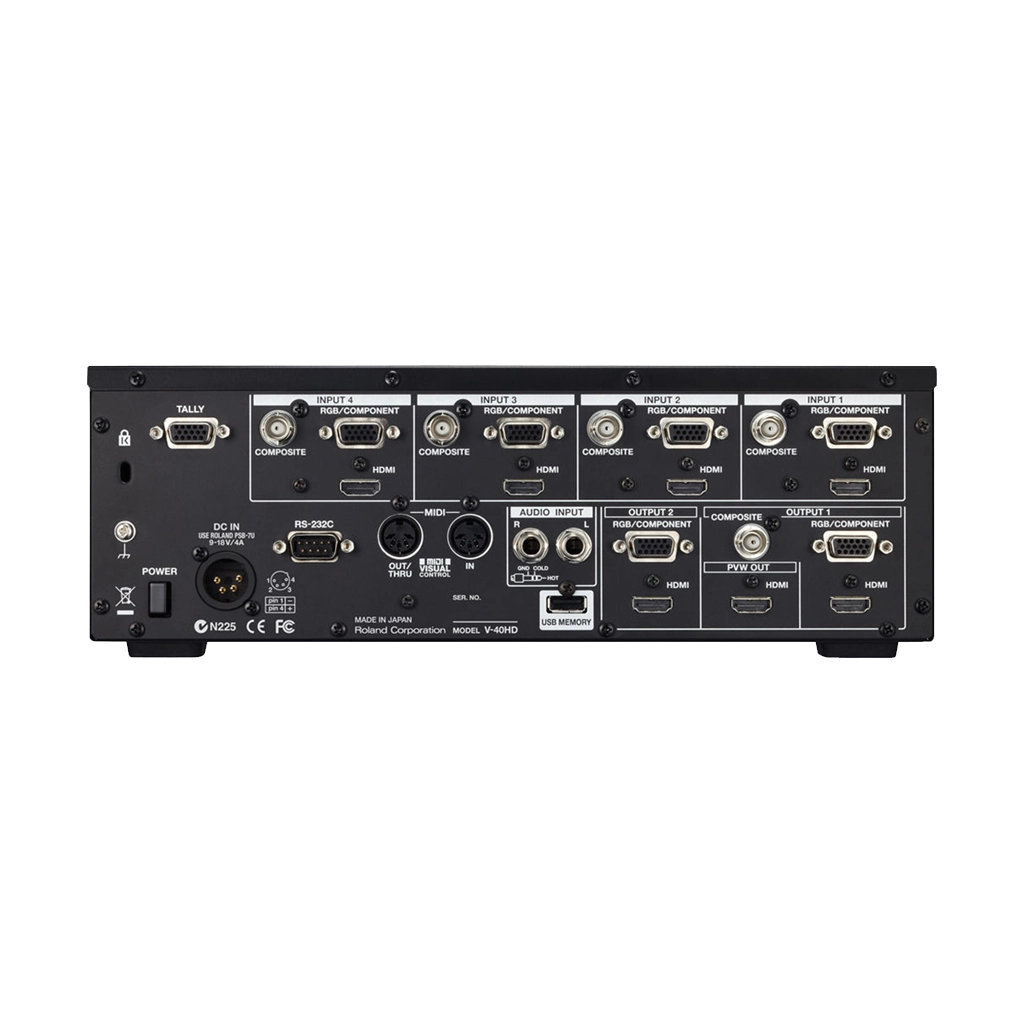

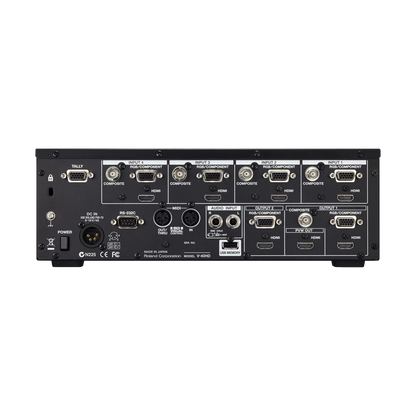

The advanced Roland V-40HD video switcher is a four-channel switcher that consists of three types of Input connectors – 4 x HDMI, 4 x RGB/Component and 4x Composite, that allows you to connect a tally of 12 video devices. Output provides 3 systems that consists of 6 connectors out for HDMI, RGB/Component on HD DB-15, Composite on BNC and preview on HDMI.
Resolution up to 1080/60p
The inputs and outputs that the Roland V-40HD are equipped with, supports resolutions up to 1080/60p and 1080/50p for PAL, or 1920 x 1200 for computer resolution.
4:4:4 / 10-Bit Processing
The video switcher makes use of the 4:4:4 / 10-bit internal signal processing as well as the 4:2:2 / 8-bit output-signal processing.
HDCP Compliant
With the video switcher being HDCP compliant, you can now mix copy-protected game and Blu-ray content with other camera and computer sources without any hassle, however you’ll need permission from the holder if any commercial content is being used. In HDCP, it only allows HDMI or DVI-D via a converter output can be used. It isn’t possible when using the Component and Composite outputs. When any source of display or projector is connected to the HDMI or DVI-D output then it has to support HDCP.
Preview

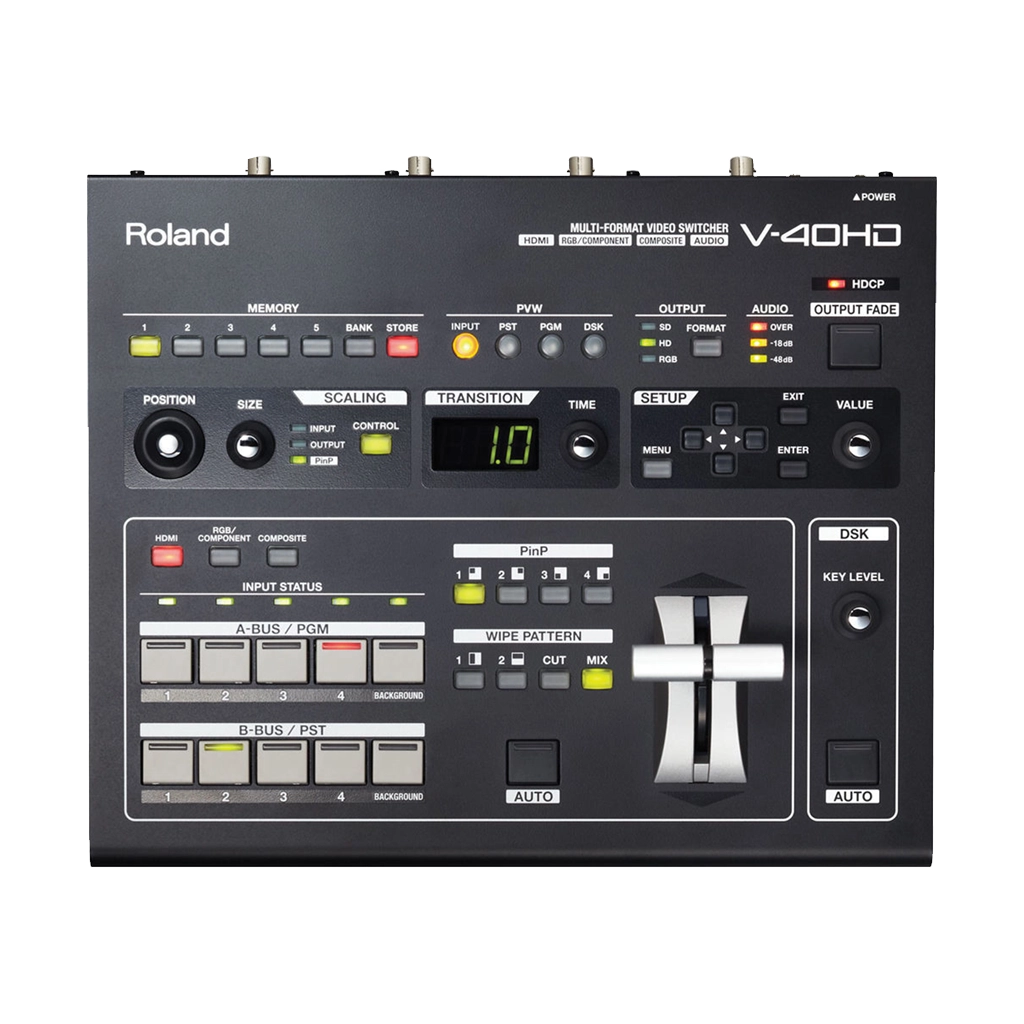

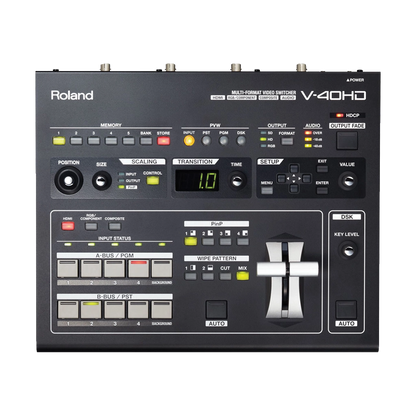

The video switcher is fully advanced as it allows you to choose the view on a preview monitor and you can choose from a four-way-split screen, PST, PGM or DSK to display. The resolution and refresh rate of the monitor is fixed at 1080 at 60 fps, so an HDMI monitor that supports HDCP and 60p signals is required and on the four-way-split-screen you’ll have a much lower frame rate.
Memory
The Roland V-40HD allows you to save the switchers configured settings in internal memory, and with each of the five memory banks, can hold five sets of settings which tallies up to a total of 25 configurations.
Effects
- Downstream Keyer: composites logos and text into output video
- Mix, Cut, Wipe (9 patterns)
- Picture in Picture
- Output Fade
- Roland V-40HD Multi-Format Video Switcher
- 4-Pin XLR AC Adapter
- Power Cord
- 4 x RCA-to-BNC Conversion Plugs
Processing | Video: 4:4:4 Y/Pb/Pr, 10 bits (output signal processing is 4:2:2, 8 bits) Audio: 24 bits / 48 kHz, 2 channels |
Input Formats | HDMI video: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz The video signal frame rate must match with the unit's frame rate setting Conforms to VESA DMT version 1.0 revision 11 1920 x 1200/60Hz: reduced blanking HDMI audio: Linear PCM, 24 bits / 48 kHz, 2 channels RGB/ Component: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz The video signal frame rate must match with the unit's frame rate setting Conforms to VESA DMT version 1.0 revision 11 1920 x 1200/60Hz: reduced blanking Composite: NTSC, PAL |
Output Formats | HDMI video: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz The output refresh rates of 640 x 480 - 1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz Conforms to VESA DMT version 1.0 revision 11 1920 x 1200/60Hz: reduced blanking HDMI audio: Linear PCM, 24 bits / 48 kHz, 2 channels RGB/ Component: 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz The output refresh rates of 640 x 480 - 1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz Conforms to VESA DMT version 1.0 revision 11 1920 x 1200/60Hz: reduced blanking Composite: NTSC, PAL Preview (HDMI): Video: 1920 x 1080/60 Hz (fixed) When input is selected, the sources are displayed with a reduced frame rate Audio: linear PCM, 24 bits/48 kHz, 2ch |
Inputs | 4x HDMI Type A 4x RGB/Component on HD DB-15 4x Composite on BNC 1x 1/4" TRS phone type balanced/unbalanced pair 1x Tally on HD DB-15 (max input: 12 V/200 mA, open collector type) 2x MIDI on 5-pin DIN (In / Out / Thru) 1x RS-232C on 9-pin D-sub 1x USB type A (host, for USB storage) |
Outputs | 2x HDMI Type A (output 1 / 2) 2x RGB/Component on HD DB-15 (output 1 / 2) 1x Composite on BNC 1x Preview on HDMI Type A |
RGB / Component | Signal level: 0.7 Vp-p( H,V:5VTTL) Impedance: 75 ohms |
Composite | Signal level: 1.0 Vp-p (luminance) 0.286 Vp-p (chroma, NTSC) 0.3 Vp-p (chroma, PAL) Impedance: 75 ohms |
Audio Effects Delay | 0.0 to 12.0 frames |
0dBu | 0.775 Vrms |
Power | DC 12 V, 2.6 A |
Dimensions | 12.5 x 10.5 x 4.3" (31.7 x 26.7 x 11 cm) |
Weight | 3.4 kg |
