Rode SoundField NT-SF1 Ambisonic Microphone
Choose PayGate at checkout for MobiCred Payments.
- Ideal for VR, Film, and Game Audio
- Cardioid Capsules in Tetrahedral Array
- Four 1/2" TF45C Condenser Capsules
- 20 Hz to 20 kHz Frequency Response
- Ultra-Low Noise, Phantom Powered
- 4-Channel, A-Format Output
- Supports Flexible B-Format Manipulation
- Includes Spherical Windscreen & Cover
- Includes Custom Shockmount
- Includes XLR Breakout Cable
Orms Bellville
Orms Cape Town
Rode SoundField NT-SF1 Ambisonic Microphone
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Ideal for VR, Film, and Game Audio
- Cardioid Capsules in Tetrahedral Array
- Four 1/2" TF45C Condenser Capsules
- 20 Hz to 20 kHz Frequency Response
- Ultra-Low Noise, Phantom Powered
- 4-Channel, A-Format Output
- Supports Flexible B-Format Manipulation
- Includes Spherical Windscreen & Cover
- Includes Custom Shockmount
- Includes XLR Breakout Cable
Choose PayGate at checkout for MobiCred Payments.
- Ideal for VR, Film, and Game Audio
- Cardioid Capsules in Tetrahedral Array
- Four 1/2" TF45C Condenser Capsules
- 20 Hz to 20 kHz Frequency Response
- Ultra-Low Noise, Phantom Powered
- 4-Channel, A-Format Output
- Supports Flexible B-Format Manipulation
- Includes Spherical Windscreen & Cover
- Includes Custom Shockmount
- Includes XLR Breakout Cable

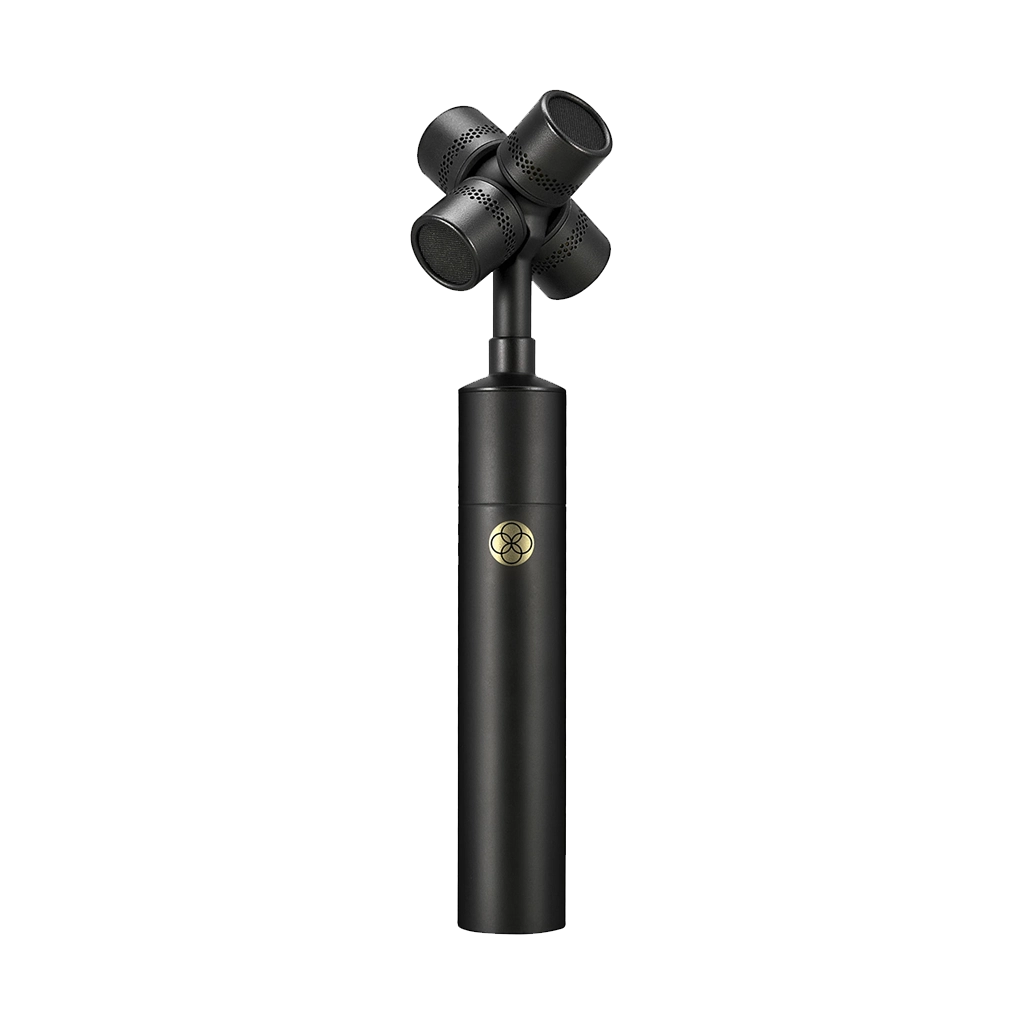

The Rode SoundField NT-SF1 Ambisonic Microphone is designed to record clear sound 360° on VR, film production, and audio for video games in accurate reproduction using the four 1/2" TF45C cardioid condenser capsules arranged in a tetrahedral array. These capsules are wired to an XlR 10-pin connector for four-channel, a-format output.
Flexible B-format manipulation of polar patterns and output format is supported through the downloadable SoundField by Rode ambisonic processor plug-in. Included in the box you will find a custom shockmount, spherical windscreen, furry wind cover, as well as a breakout cable designed to convert the XKR 10-pin output to four standard XLR-3-pin connectors.
Microphone Features
- Tetrahedral array with four externally biased cardioid condenser capsules
- Created in-house at Rode's Sydney headquarters, each TF-45C capsule is machined to tolerances of less than one micron
- JFET impedance converter with bipolar output buffer
- Low noise of 15 dBA
- Handles SPLs up to 129 dB
- Sturdy brass body
Plug-In Features
- Utilizes frequency-domain processing instead of matrices and correction filters to deliver spatial accuracy at all frequencies
- Change polar patterns in post-production and even create shotgun-type patterns
- Set up mixes for all common surround-sound formats from 5.1 to 7.1.4, and accommodate custom formats and speaker arrays
- Intuitive user interface with sound level visualization for immediate feedback on levels and soundscape information
- Advanced mode opens up all parameters and controls for precise, detailed manipulation
- Accepts A-Format, B-Format (FuMa), or B-Format (Ambix)
- Outputs B-Format (FuMa), B-Format (Ambix), mono, stereo, 5.1, 7.1, 5.1.2, 7.1.2, 5.1.4, or 7.1.4
- Compatible with macOS 10.11 or later, and Windows 10
- Supports AAX, Audio Units, and VST plug-in formats
- Rode SoundField NT-SF1 Ambisonic Microphone
- Custom Suspension Shockmount
- Blimp-Style Spherical Windshield
- Furry Wind Cover
- XLR Breakout Cable
Sound Field | Tetrahedral |
Operating Principle | Pressure Gradient |
Capsule | 4 x Condenser |
Polar Pattern | Cardioid |
Pad | None |
High-Pass Filter | None |
Windscreen | Blimp, Windsock/Windjammer (Included) |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 129 dB SPL |
Impedance | 63 Ohms |
Sensitivity | -30.4 dBV/Pa |
Equivalent Noise Level | 15 dB A-Weighted |
Operating Voltage | 48 V |
Dimensions | ø: 45.72 x L: 192.3 mm |
Weight | 286 g |
