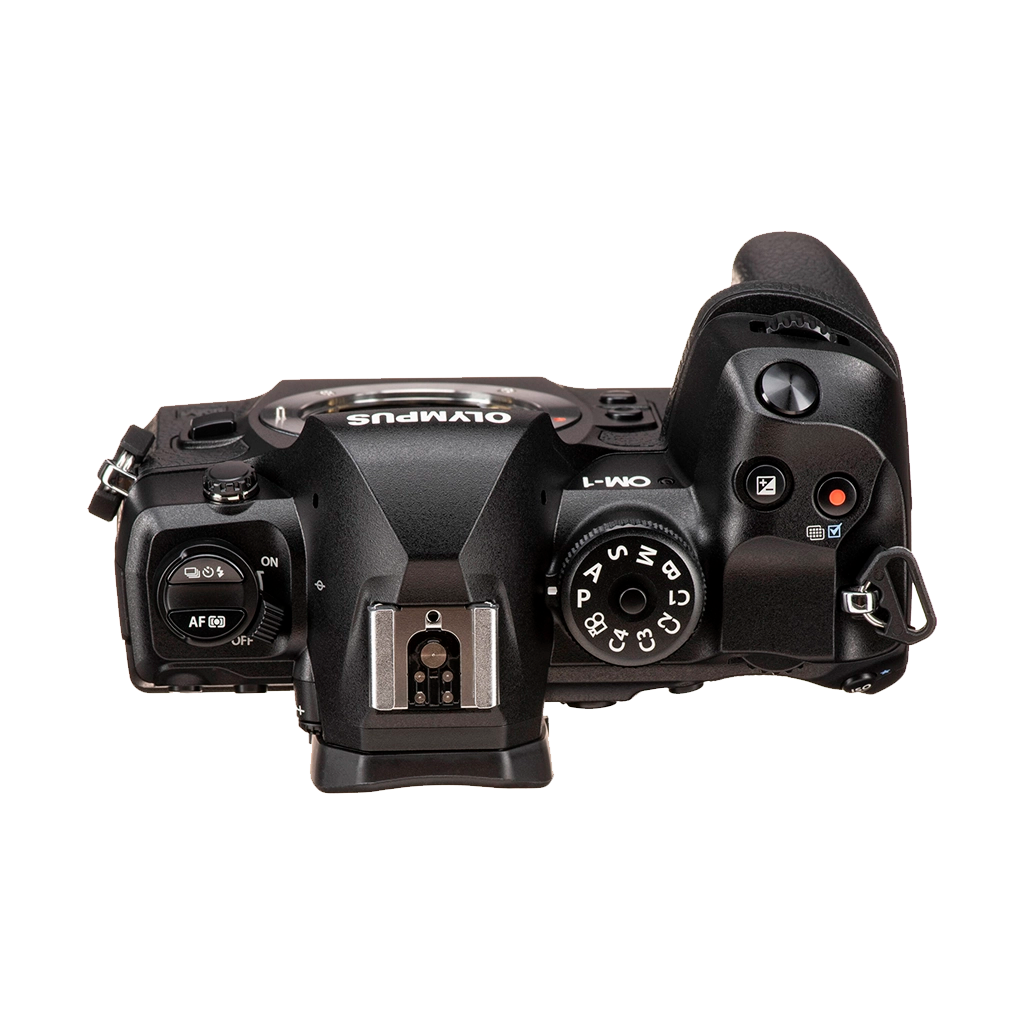

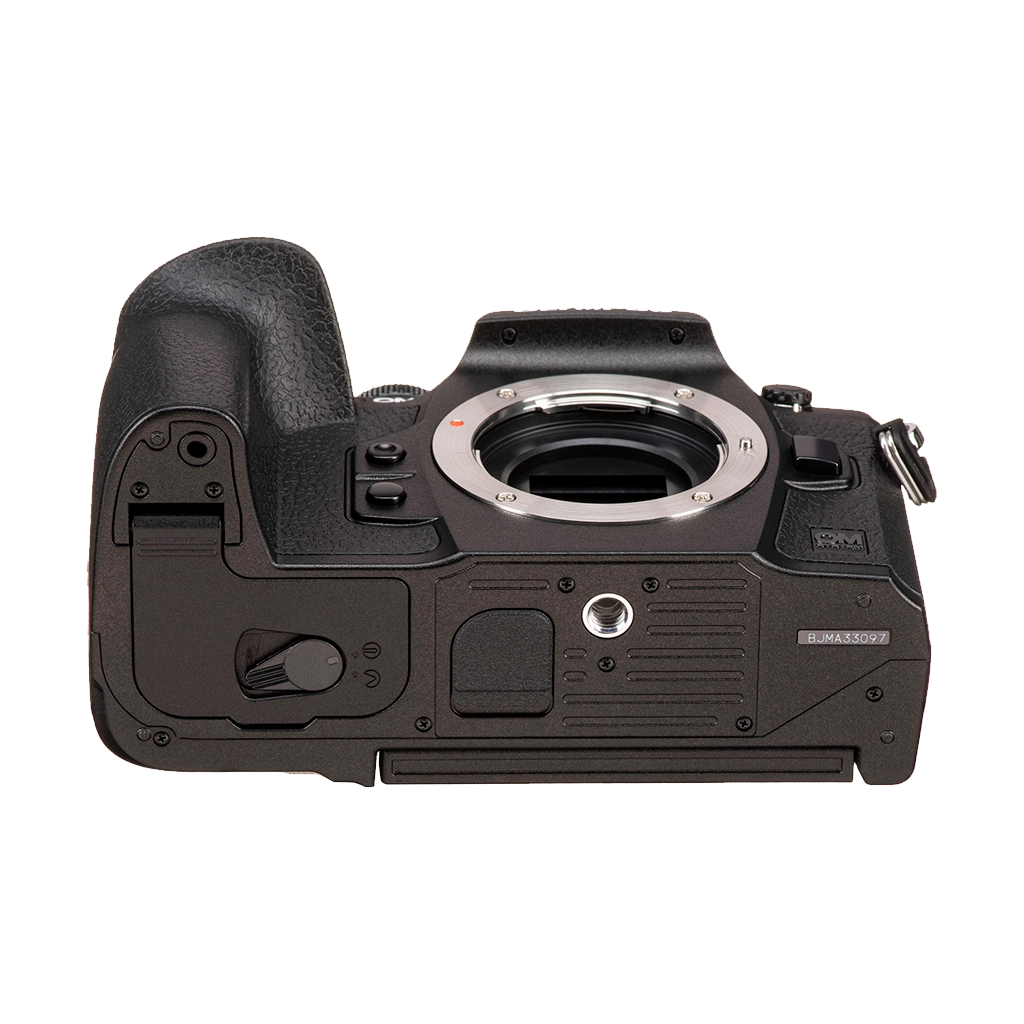

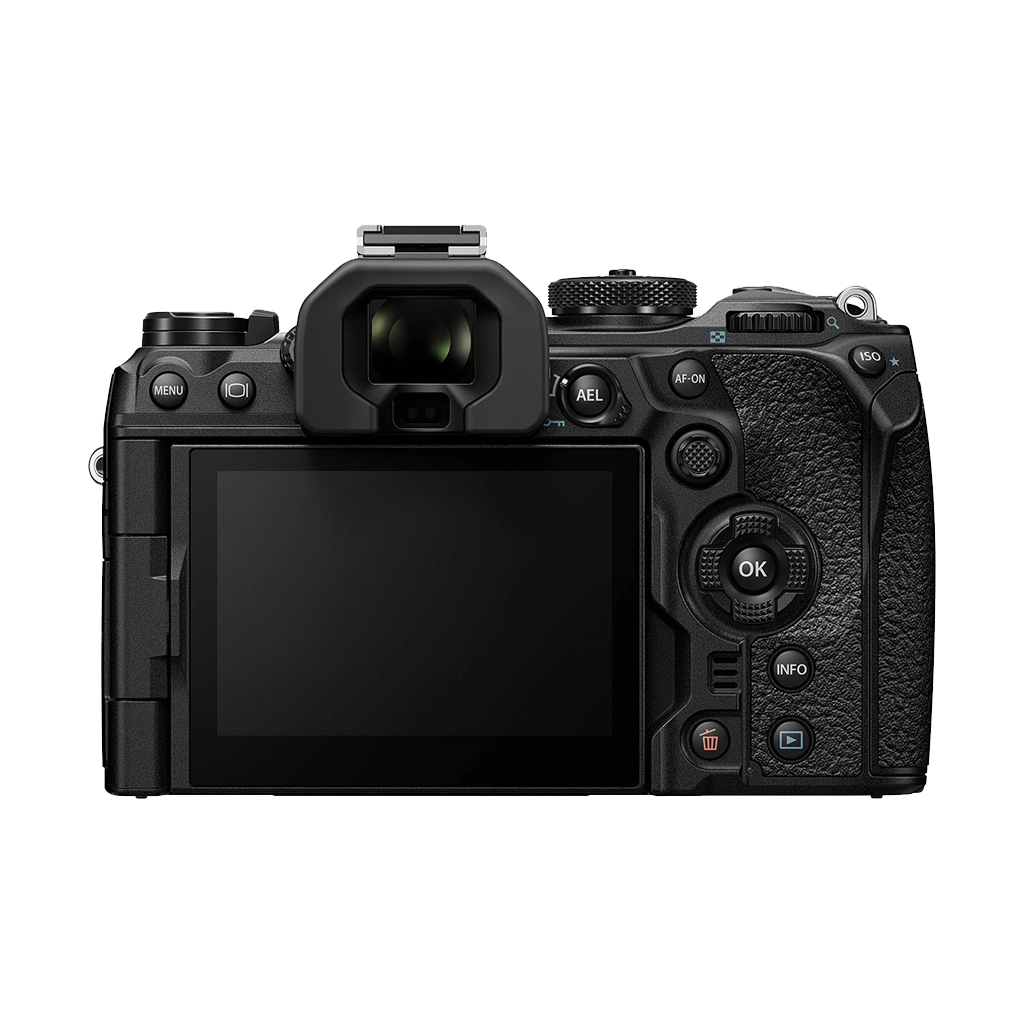

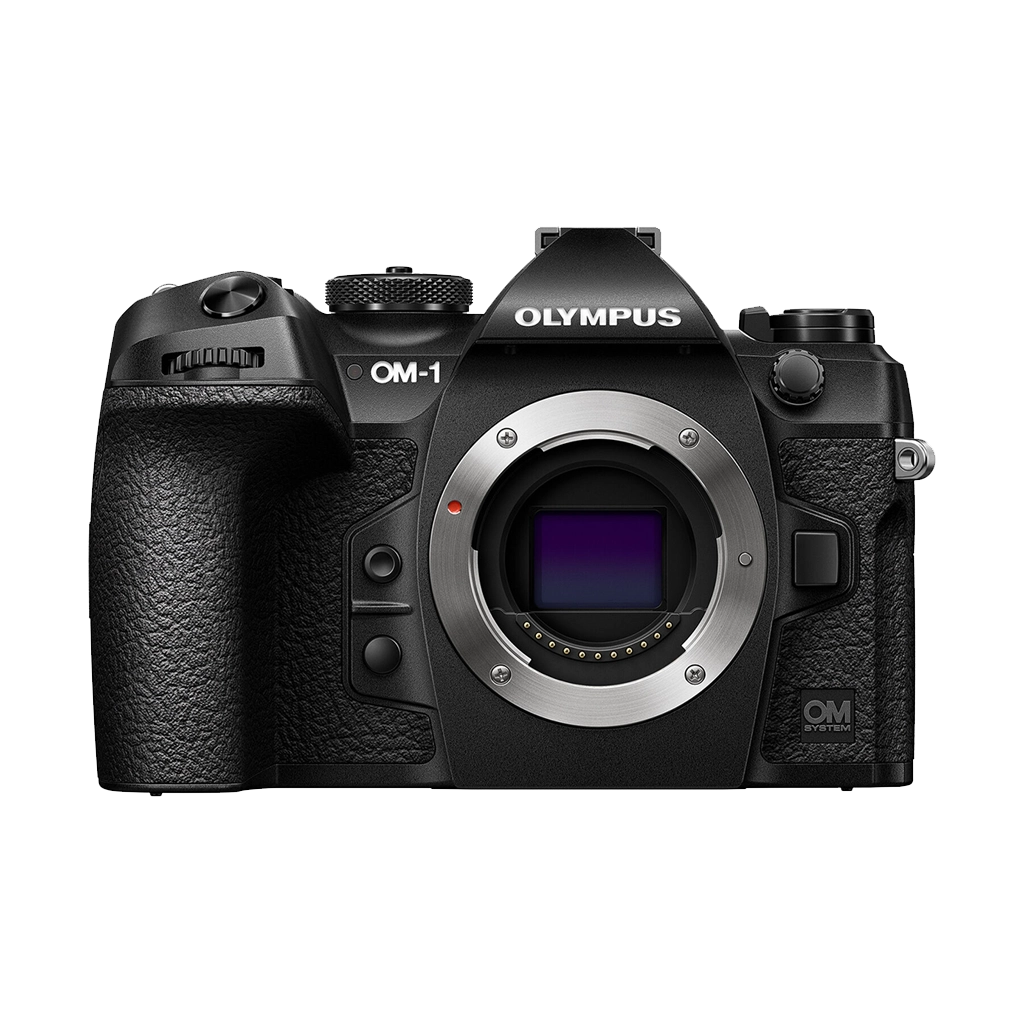

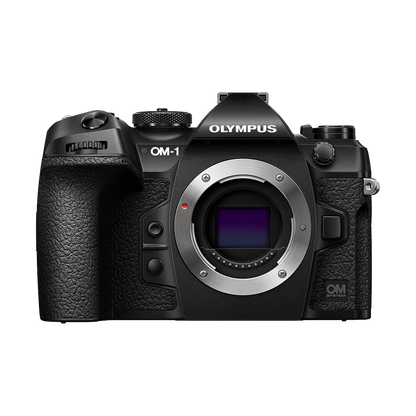

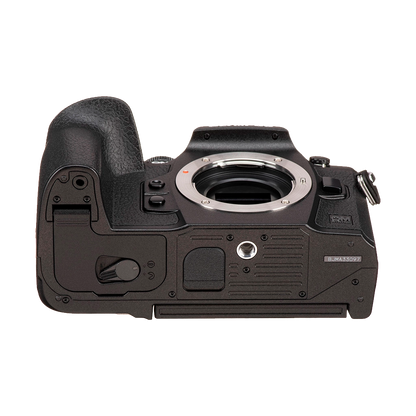

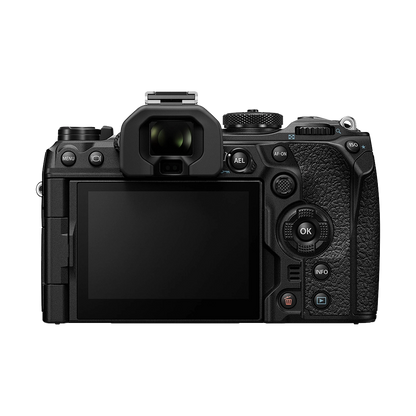

OM SYSTEM OM-1 Mirrorless Camera
Choose PayGate at checkout for MobiCred Payments.
- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 10-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF
- 5.76m-Dot OLED Electronic Viewfinder
- 3.0" 1.62m-Dot Swivel Touchscreen LCD
- 5-Axis In-Body Image Stabilization
- High-Res Shot, Live ND & Composite Modes
- IP53 Weather-Sealed & Freezeproof Design
- Dual UHS-II SD Card Slots
Orms Bellville
Orms Cape Town
Remote Warehouse (Available in 2 - 4 Business Days)
OM SYSTEM OM-1 Mirrorless Camera
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 10-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF
- 5.76m-Dot OLED Electronic Viewfinder
- 3.0" 1.62m-Dot Swivel Touchscreen LCD
- 5-Axis In-Body Image Stabilization
- High-Res Shot, Live ND & Composite Modes
- IP53 Weather-Sealed & Freezeproof Design
- Dual UHS-II SD Card Slots
Choose PayGate at checkout for MobiCred Payments.
- 20MP Stacked BSI Live MOS MFT Sensor
- DCI/UHD 4K 60p 10-Bit Video Recording
- 10 fps Shooting, 120 fps with E. Shutter
- Cross Quad Pixel Phase-Detection AF
- 5.76m-Dot OLED Electronic Viewfinder
- 3.0" 1.62m-Dot Swivel Touchscreen LCD
- 5-Axis In-Body Image Stabilization
- High-Res Shot, Live ND & Composite Modes
- IP53 Weather-Sealed & Freezeproof Design
- Dual UHS-II SD Card Slots
The new flagship OM SYSTEM OM-1 Mirrorless Camera provides the perfect combination between image quality, portability, speed, and reliability.
The OM - 1 is characterized by the Micro Four Thirds platform, combining outstanding performance in stills as well as 4K video recording.
20MP Stacked Sensor and TruePic X
Micro Four Thirds BSI Live MOS Sensor
Built into the new flagship, the OM SYSTEM OM-1 Mirrorless Camera is a newly designed 20.4MP Micro Four Thirds Live MOS sensor. Featuring a stacked BSI design offering improved speeds, lower noise levels, and greater dynamic range than the previous designs.
This 20.4MP Micro Four Thirds Sensor truly comes to its worth, especially at higher ISO's with the structure of the sensor you will find exceptionally improved noise performance by two stops and dynamic range by one stop.
TruePic X Processor
For faster and more responsive shooting the OM SYSTEM OM-1 Mirrorless Camera offers the TruePic X for three times faster processing along with 120 fs sensor readouts. The sensor also offers an ISO range of 200-102400 which is expandable down to an ISO of 80.
Continuous shooting up to 10 fps with full-time AF/AE and a buffer of 169 raw frames when working with a mechanical shutter. If working with a silent electronic shutter, 20 fps shooting is possible with full-time AF/AE and a buffer of 108 raw frames. SH1 and SH2 are blackout-free high-speed shooting modes, offering rates up to 120 fps without AF/AE in SH1 and 50 fps with AF/AE in SH2.
Cross Quad Pixel AF and AI Detection
The 20.4MP Stacked Sensor features a unique design employing on-sensor phase-detection AF using a Cross Quad Pixel system that splits each pixel into four sub-pixels, making the sensor easier to adopt to focusing in tricky lighting conditions. An autofocusing system performs at up to 120 fps suitable for all recording methods, with 1053 individual points fully covering the sensor.
The Cross Quad Pixel AF structure along with the colour contrast information gathered from the sensor assist in subject tracking and detection. Using AI, this focusing system can automatically detect a range of subject types, like cars, motorcycles, aeroplanes, helicopters, trains, birds, dogs, cats, and humans, as well as faces and eyes. And, compared to earlier iterations of this focusing system, improved processing now makes focusing performance 2x more accurate and 3x faster.
5-Axis Image Stabilization
The OM SYSTEM OM-1 Mirrorless Camera provides for 5-axis image stabilisation providing compensation for up to 8 stops of camera shake, providing use of longer shutter speeds for when the OM SYSTEM OM - 1 Mirrorless Camera is used in handheld positions.
Handheld Assist relies on this stabilization technology for more stable framing, making it easier to use with long focal length lenses. Furthermore, when using additional shooting modes, such as High Res Shot Modes, Handheld Live Compensate, and an advanced dust reduction system, the in-body image stabilisation also assist.
DCI/UHD 4K Video Recording
With DCI/UHD 4K video recording is possible at up to 60p and 10-bit 4:2:0 sampling. The OM SYSTEM OM-1 Mirrorless Camera enables you to record to frame rates of up to 240 fps for slow-motion playback.
For external recording, 12-bit raw is supported via a micro-HDMI port. When post-production is needed the HLG picture mode permits in-camera HDR recording and an OM-Log gamma.
Reliable, Adventure-Ready Design
EVF and LCD
The electronic viewfinder features a 5.76m-dot OLED panel, offering a bright and clear means for eye-level monitoring. The finder has a 0.83x-equivalent magnification, a 21mm eyepoint, and a 120 fps refresh rate for realistic motion rendering.
3.0" 1.62m-dot LCD touchscreen features a vari-angle design with 270° of swivel to suit working from high, low and front-facing angles.
Durable, Weather-Sealed Build
The OM SYSTEM OM-1 Mirrorless Camera provides for up to 400,000 shutter activations. And a lightweight magnesium alloy body provides a camera that is dust- as well as splash-resistant. Featuring an IP53 rating for working in inclement weather conditions.
Practical and Intuitive Handling
The OM SYSTEM OM-1 Mirrorless Camera employs the new OM SYSTEM BLX-1 battery providing up to 520 shots on a single charge. Not only can the battery be charged via the USB Type-C port, but also a connected USB power bank.
With dual UHS-II SD memory card slots for flexible file saving, as well as making in-camera file backups, splitting file types, or just having spare memory on hand for overflow storage. Separate AEL and AF-ON buttons offer better control over camera functions and settings.
Bluetooth and Wi-Fi (5 and 2.4GHz) allow wireless file transferring and remote control over the camera via the OI.Share app for mobile devices.
- OM SYSTEM OM-1 Mirrorless Camera
- OM SYSTEM BLX-1 Lithium-Ion Battery (7.2V, 2280mAh)
- OM SYSTEM CB-USB13 USB Connection Cable
- USB-AC Adapter
- Eyecup
- Cable Clip
- Cable Protector
- Shoulder Strap
Imaging
Lens Mount | Micro Four Thirds |
Sensor Resolution | Actual: 22.9 Megapixel Effective: 20.4 Megapixel |
Sensor Type | 17.4 x 13 mm (Four Thirds) MOS |
Crop Factor | 2x |
Image Stabilization | Sensor-Shift, 5-Axis |
Built-In ND Filter | None |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
Shutter Speed | Mechanical Shutter 1/8000 to 60Â Seconds Electronic Front Curtain Shutter 1/320 to 60Â Seconds Electronic Shutter 1/32000 to 60Â Seconds |
Bulb/Time Mode | Bulb Mode, Time Mode |
ISO Sensitivity | Photo/Video 200 to 102,400 in Manual, Auto Mode (Extended: 80 to 102,400) |
Metering Method | Centre-Weighted Average, Highlight Weighted, Multi-Zone, Spot |
Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority |
Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
Metering Range | -2 to 20 EV |
Continuous Shooting | Mechanical Shutter Up to 10 fps at 20.4 MP for up to 139 Frames (Raw) / 169 Frames (JPEG) Electronic Shutter Up to 20 fps at 20.4 MP for up to 108 Frames (Raw) / 116 Frames (JPEG) Up to 120 fps at 20.4 MP for up to 92 Frames (Raw) / 92 Frames (JPEG) Up to 50 fps at 20.4 MP for up to 96 Frames (Raw) / 97 Frames (JPEG) |
Interval Recording | Yes |
Still Image Capture
Image Sizes | 4:3 JPEG / Raw 20 MP (5184 x 3888) |
Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
Image File Format | JPEG, Raw |
Bit Depth | 12-Bit |
Internal Video Capture
Recording Modes | H.265 Long GOP/MOV 4:2:0 10-Bit DCI 4K (4096 x 2160) at 23.98p/25p/29.97p/50p/59.94p [77 to 152 Mb/s] UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p [77 to 152 Mb/s] Full HD (1920 x 1080) at 23.98p/24.00p/29.97p/50p/59.94p [22 to 42 Mb/s] H.265/MOV 4:2:0 10-Bit Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [82 to 162 Mb/s] Full HD (1920 x 1080) at 100p/119.88p/200p H.264 Long GOP/MOV 4:2:0 8-Bit DCI 4K (4096 x 2160) at 23.98p/25p/29.97p/50p/59.94p [102 to 202 Mb/s] UHD 4K (3840 x 2160) at 23.98p/25p/29.97p/50p/59.94p [102 to 202 Mb/s] Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [27 to 52 Mb/s] H.264/MOV 4:2:0 8-Bit Full HD (1920 x 1080) at 23.98p/25p/29.97p [202 Mb/s] Full HD (1920 x 1080) at 100p/119.88p/200p/239.76p |
Gamma Curve | HDR-HLG, OM-Log |
Video System | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | MOV: 2-Channel 24-Bit 96 kHz LPCM Audio MOV: 2-Channel 16-Bit 48 kHz LPCM Audio |
External Video Capture
External Recording Modes | Raw 12-Bit via HDMI DCI 4K (4096 x 2160)UHD 4K (3840 x 2160) |
IP Streaming | None |
Interface
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1 x Micro-HDMI Output |
Audio I/O | 1 x 3.5 mm TRS Stereo Microphone (Plug-in Power) Input on Camera Body 1 x 3.5 mm TRS Stereo Headphone Output on Camera Body |
Other I/O | 1 x USB Type-C Input/Output (Shared with Power Input) 1 x 2.5 mm Sub-Mini 1 x PC Sync Socket FlashSync Output |
Wireless | 2.4 / 5 GHz Wi-Fi Bluetooth |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 3.0" |
Resolution | 1,620,000 Dot |
Display Type | Articulating Touchscreen LCD |
Viewfinder
Type | Built-In Electronic (OLED) |
Resolution | 5,760,000 Dot |
Eye Point | 21 mm |
Coverage | 100% |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
Autofocus Points | Photo, Video Phase Detection: 1053 |
Autofocus Sensitivity | -6 to +19 EV |
Flash
Built-In Flash | No |
Flash Modes | Fill Flash, First-Curtain Sync, Manual, Off, Red-Eye Reduction, Second-Curtain Sync, Slow Sync |
Maximum Sync Speed | 1/250 Second |
Flash Compensation | -3 to +3 EV (1/3, 1/2, 1 EV Steps) |
Dedicated Flash System | TTL |
External Flash Connection | Hot Shoe, PC Terminal |
Environmental
Operating Temperature | -10 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 30 to 90% |
Storage Humidity | 10 to 90% |
General
Battery Type | 1 x BLX-1Â Rechargeable Lithium-Ion (Approx. 520 Shots) |
Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
Accessory Mount | 1 x Hot Shoe Mount on Camera Body |
Dimensions (W x H x D) | 134.8 x 91.6 x 72.7 mm |
Weight | 599 g (Body with Battery and Memory) 511 g (Body Only) |
