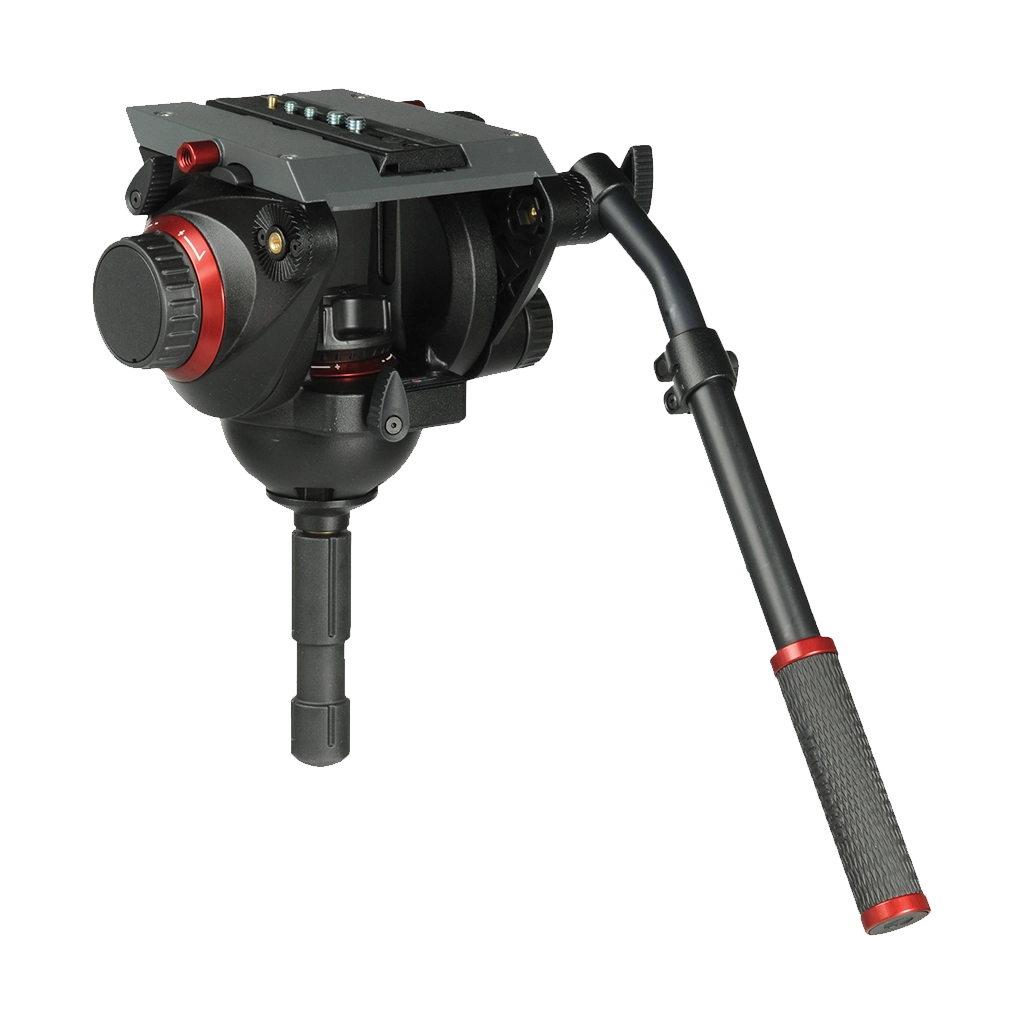

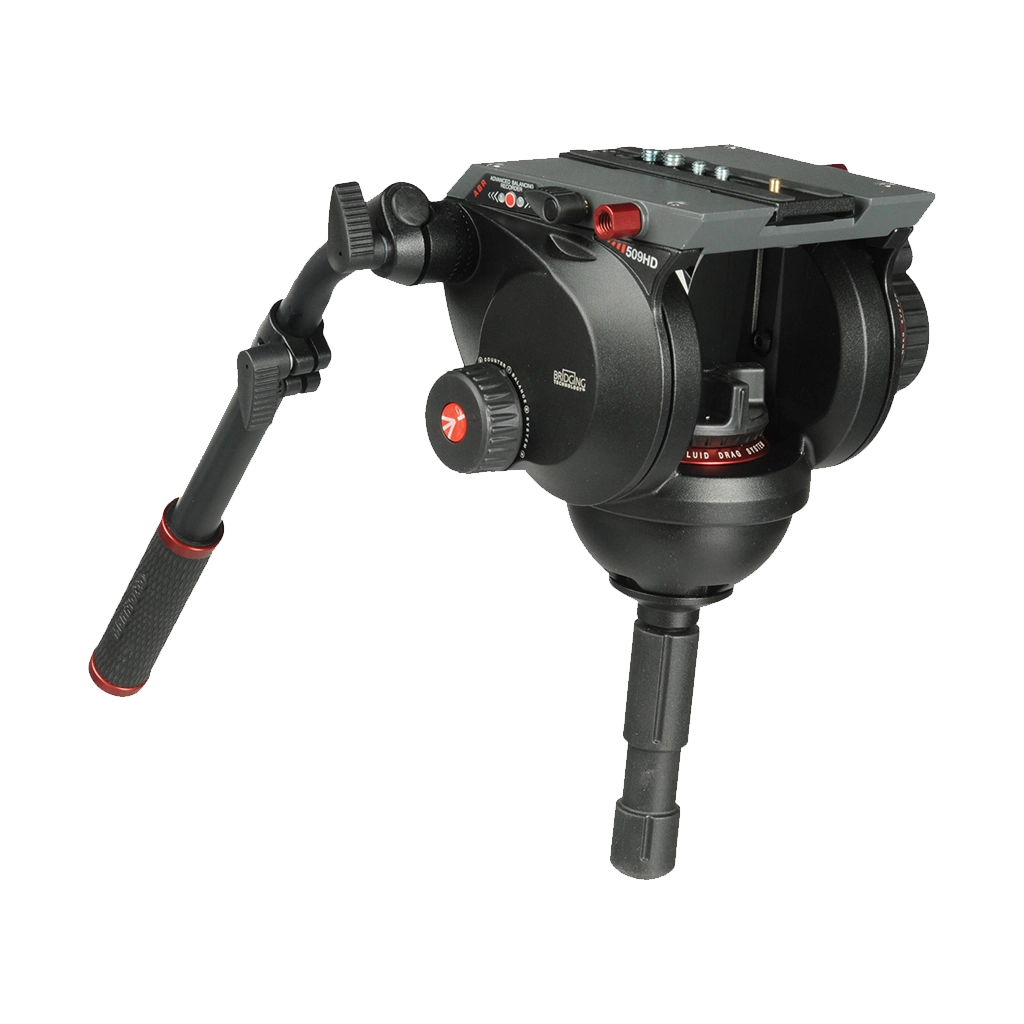

The Manfrotto 509HD professional video head supports professional video camera systems weighing up to 13.1 kg. The 509HDs FDS (Fluid Drag System) is based on variable fluid cartridges on both, TILT and PAN axes; the ergonomics of the controls have been noticeably improved to make use of the FDS even easier. Movement around the axes is smoothed by ball-bearing units which remove all unwanted vibration. All of this guarantees ultimate control and excellent video camera support, no matter what the situation, the shooting style, or the equipment set-up.
The 509HD is capable of carrying up to 13,5kg at 55mm C.O.G or 9kg at 125mm C.O.G. and properly counterbalance 12,8kg at 55mm C.O.G or 8,5kg at 125mm C.O.G. The two 3/8 threads on the top plate allow accessories, such as monitors and arms, to be fitted straight to the head, thus eliminating the need for extra clamps, saving set-up time and freeing the video cameras hot shoe for other components. The 509HD features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The system can be leveled thanks to the 100mm half ball and the illuminated leveling bubble. Systems are available with aluminum twin leg tripods (middle spreader or ground spreader) or carbon fiber single tubes tripod. A new bridge leading the videographer and photographer to even better results with today's high-definition cameras. The 509HDs FDS (Fluid Drag System) is based on variable fluid cartridges on both, TILT and PAN axes; the ergonomics of the controls have been noticeably improved to make use of the FDS even easier. Movement around the axes is smoothed by ball-bearing units which remove all unwanted vibration. All of this guarantees ultimate control and excellent video camera support, no matter what the situation, the shooting style, or the equipment set-up. The load capacity has also been improved: the 509HD supports kit up to 28.8lb (13kg) at 55mm c.o.g and two 3/8 threads on the top plate allow accessories, such as monitors and arms, to be fitted straight to the head, thus eliminating the need for extra clamps, saving set-up time and freeing the video cameras hot shoe for other components. 509HD features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The system can be levelled thanks to the 100mm half ball and the illuminated levelling bubble. Systems available with aluminium twin legs tripods (middle spreader or ground spreader) or carbon fibre single tubes tripod.
- Manfrotto 509HD Professional Video Head
- 509PLONG Quick-Release Plate
additional pan handle | 509HLV |
attachment | 3/8'' male thread attachment type |
attachment number | 1/4'' and 3/8'' screws attachment type |
balance control | 4 step: 0kg – 2.8kg – 5.6kg – 8.5kg |
Center Of Gravity | 125 mm |
Counterbalanced Weight | 8.5 kg |
front tilt | -60° / +90° tilt range |
half ball diameter | 100 mm |
independent pan lock | yes |
independent tilt lock | yes |
material | aluminum |
maximum working temperature | 60 °C |
minimum working temperature | -20 °C |
pan bars included (no.) | 1 number |
pan drag | continuously adjustable from 0 to max level |
panoramic rotation | 360 ° |
patent | pat. pending |
plate type | 509PLONG |
quick release | yes |
Safety Payload Weight | 13.5 kg |
secondary safety system | yes |
sliding travel of plate | 83 mm |
tilt drag | continuously adjustable from 0 to max level |
Weight | 4.636 kg |
working height | 18 cm |
