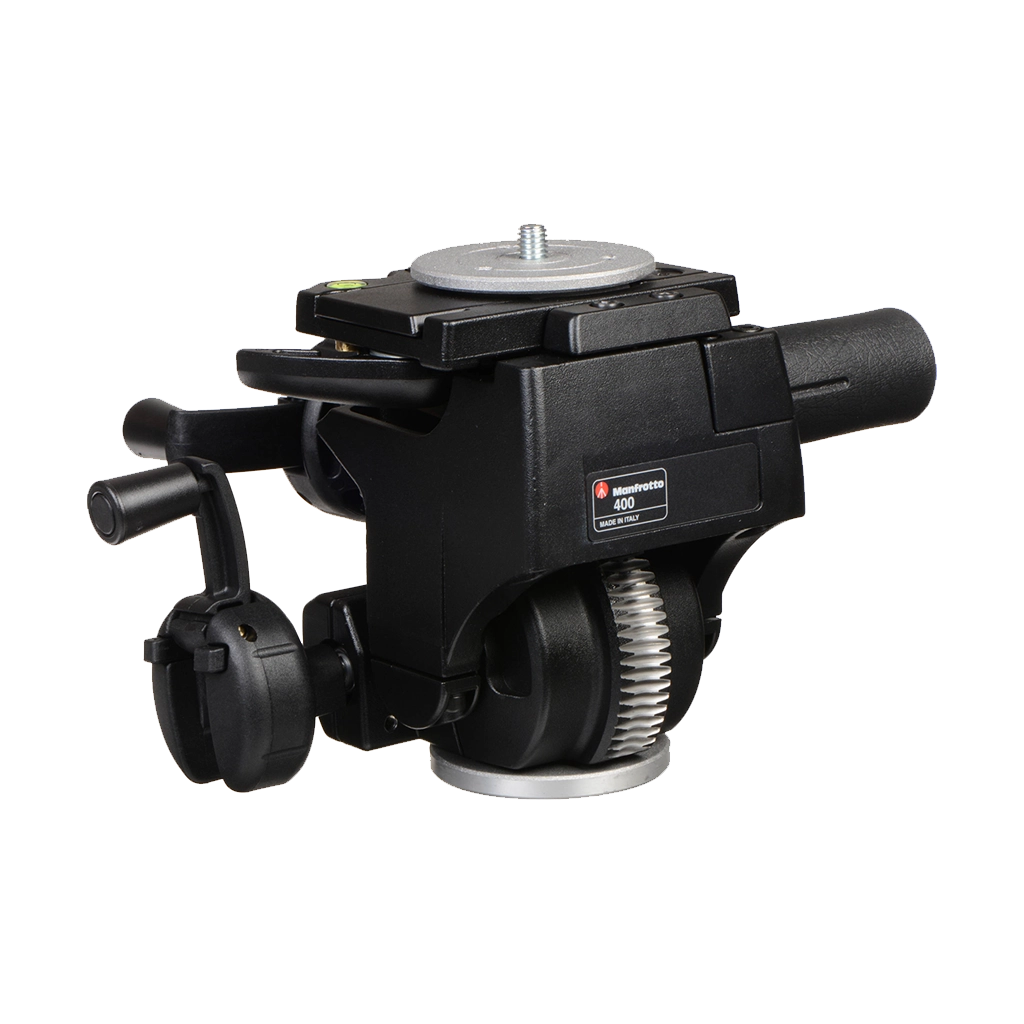

Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates
Choose PayGate at checkout for MobiCred Payments.
- Load Capacity: 10 kg
- 3 Independent Movements
- Incremental, Geared Movements
- 90 Forwards & 30 Backwards Tilt
- Provides 7.5 of Tilt, Left or Right
- 360 Rotation, Built-In Bubble Level
- Crank Handles for 90/30/360 Movements
- 8.6 Tilt/Rotation per Full Handle Turn
- 13, 23 & 42mm Tall Quick Release Plates
- 1/4"-20 Mount, 3/8"-16 Mount
Orms Bellville
Orms Cape Town
Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Load Capacity: 10 kg
- 3 Independent Movements
- Incremental, Geared Movements
- 90 Forwards & 30 Backwards Tilt
- Provides 7.5 of Tilt, Left or Right
- 360 Rotation, Built-In Bubble Level
- Crank Handles for 90/30/360 Movements
- 8.6 Tilt/Rotation per Full Handle Turn
- 13, 23 & 42mm Tall Quick Release Plates
- 1/4"-20 Mount, 3/8"-16 Mount
Choose PayGate at checkout for MobiCred Payments.
- Load Capacity: 10 kg
- 3 Independent Movements
- Incremental, Geared Movements
- 90 Forwards & 30 Backwards Tilt
- Provides 7.5 of Tilt, Left or Right
- 360 Rotation, Built-In Bubble Level
- Crank Handles for 90/30/360 Movements
- 8.6 Tilt/Rotation per Full Handle Turn
- 13, 23 & 42mm Tall Quick Release Plates
- 1/4"-20 Mount, 3/8"-16 Mount
The Manfrotto 400 3-Way Geared Pan-and-Tilt Head is the perfect solution for photographers who seeks maximum precision, especially when correcting the perspective in architectural shooting or studio still-life photography.
The advanced Manfrotto 400 3-Way Geared Pan-and-Tilt Head incorporates a couple of innovative features such as a tooth and cog mechanism on each axis of rotation to allow extra-fine control over framing adjustment; precise geared movement in three directions: fold away rotating handles for pan and tilt, and side to side levelling by a separate handle. The design is carefully engineered to mount on either studio column stands or larger tripods to hold medium or large format cameras with a payload of up to 10 kg. Other features to the Manfrotto 400 3-Way Geared Pan-and-Tilt Head includes a weight of 2.6 kg, a head height of 16 cm, and provides a 360 of rotation, 90 of forwards and 30 of backwards tilt, as well as 7.5 of left or right tilt.
- Manfrotto 400 3-Way Geared Pan-and-Tilt Head with Select Quick Release Plates
- 400PL-LOW Quick Release Plate (13mm) for 400 Deluxe Geared Head
- 400PL-MED Quick Release Plate (23mm) for 400 Deluxe Geared Head
- 400PL-HIG Quick Release Plate (44mm) for 400 Deluxe Geared Head
Pan & Tilt Range | |
---|---|
Lateral Tilt | -8° to +8° |
Vertical Tilt | -30° to +90° |
Panning Range | 360° |
Physical | |
---|---|
Base Diameter | 7.39 cm |
Dimensions | H: 16.0 cm |
Weight | 2.99 kg |
