Hollyland Mars 4K Wireless Video Transmission System
Choose PayGate at checkout for MobiCred Payments.
- Transmitter and Receiver Set
- Transmit up to UHD 4K30 Video up to 137.2m
- SDI & HDMI Inputs & Outputs
- L-Series Battery/USB Type-C/DC Power
- Smart Channel Scanning, Touchscreen LCD
- Low 0.06s Latency, 12 Mb/s Data Rate
- DC, L-Series & USB Type-C Power Options
- Transmits to up to 4 x Apps as Monitor
Orms Bellville
Orms Cape Town

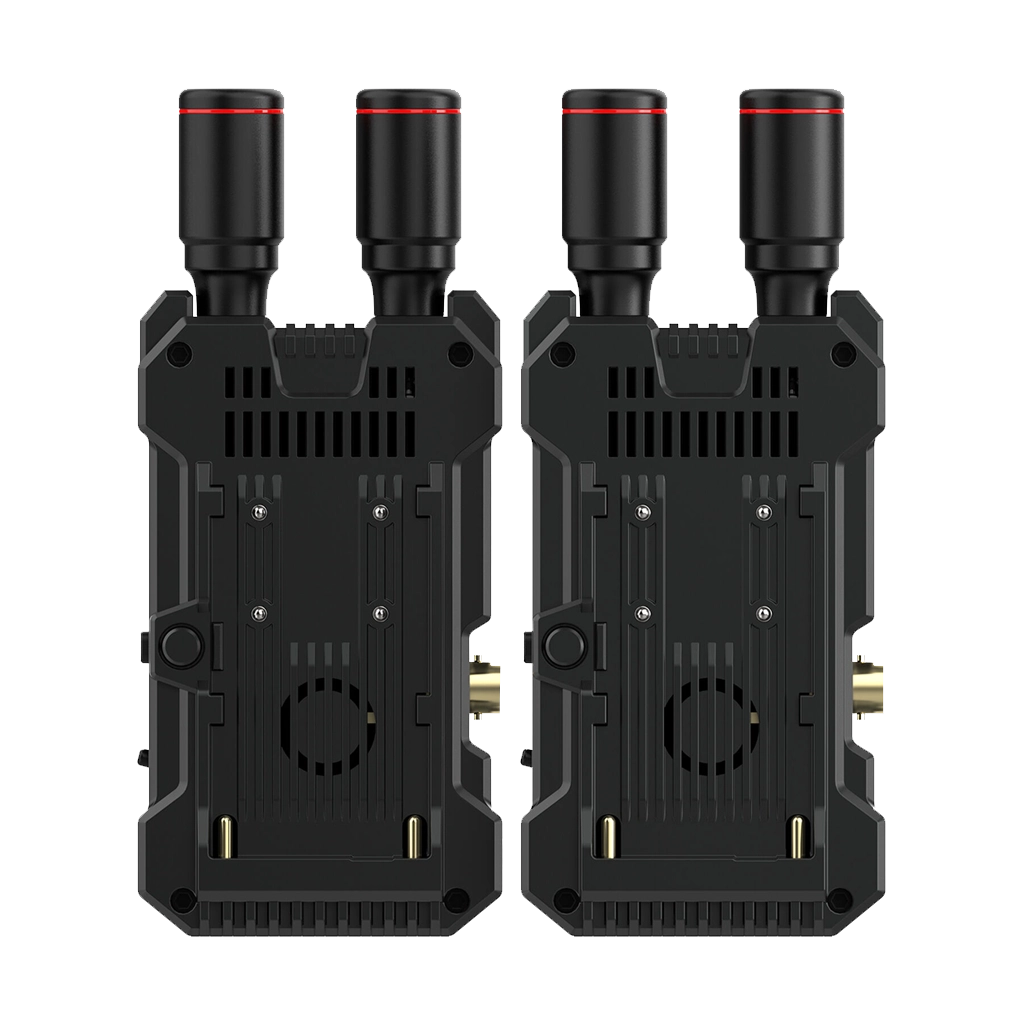

Hollyland Mars 4K Wireless Video Transmission System
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Transmitter and Receiver Set
- Transmit up to UHD 4K30 Video up to 137.2m
- SDI & HDMI Inputs & Outputs
- L-Series Battery/USB Type-C/DC Power
- Smart Channel Scanning, Touchscreen LCD
- Low 0.06s Latency, 12 Mb/s Data Rate
- DC, L-Series & USB Type-C Power Options
- Transmits to up to 4 x Apps as Monitor
Choose PayGate at checkout for MobiCred Payments.
- Transmitter and Receiver Set
- Transmit up to UHD 4K30 Video up to 137.2m
- SDI & HDMI Inputs & Outputs
- L-Series Battery/USB Type-C/DC Power
- Smart Channel Scanning, Touchscreen LCD
- Low 0.06s Latency, 12 Mb/s Data Rate
- DC, L-Series & USB Type-C Power Options
- Transmits to up to 4 x Apps as Monitor
The Hollyland Mars 4K Wireless Video Transmission System enables yo to add 4K30 wireless video transmission to your camera rig. The Transmitter and receiver both include a SDI input as well as a HDMI input.
It features extremely low 0.06s latency with line-of-sight transmission up to 137.2m to the receiver.
UHD 4K Video Transmission
The Hollyland Mars 4K Wireless Video Transmission System supports UHD 4K30 video transmission for videographers looking for high-resolution production capability. The Mars 4K also supports FHD and HD formats at varying frame rates such as 24, 30, and 60p.
Long Range and Low Latency
Featuring a 137.2m line-of-sight at an ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a 12 Mb/s data transfer rate.

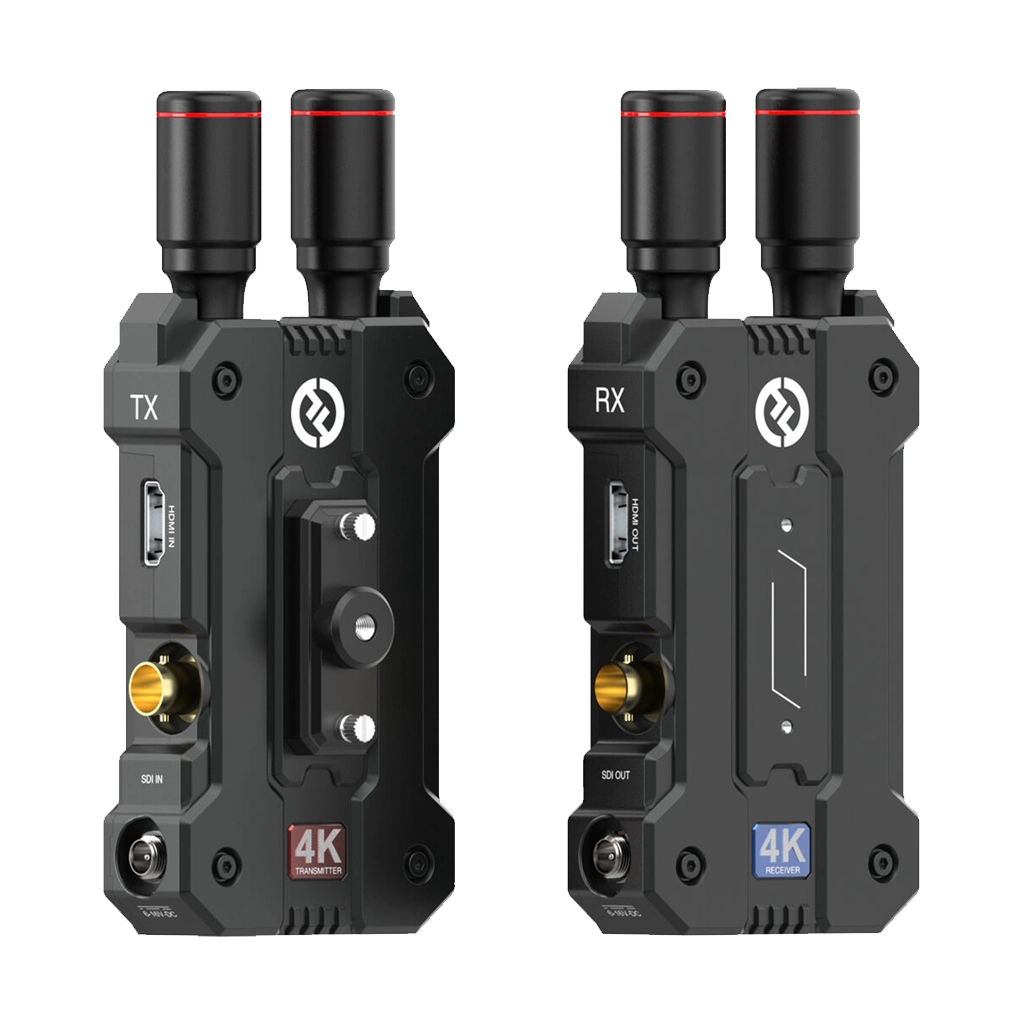

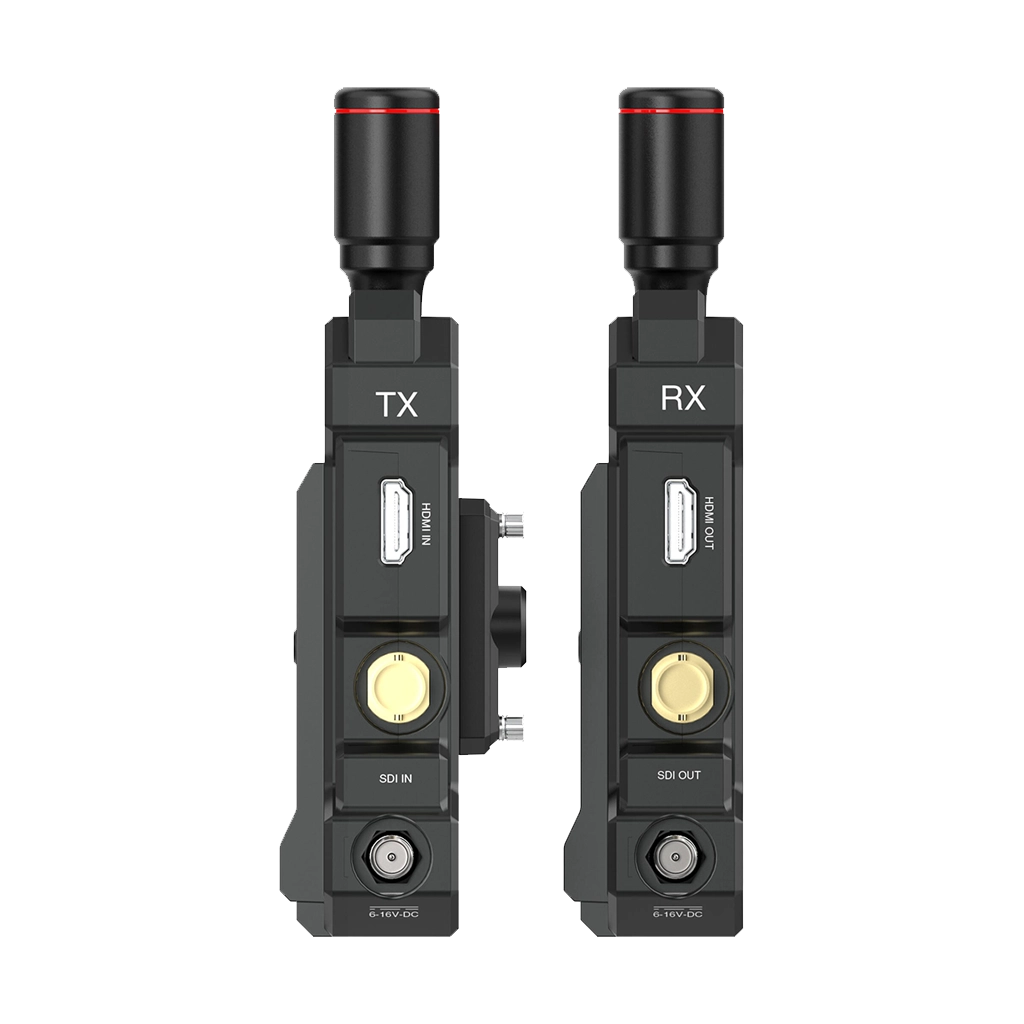

HDMI and SDI Interfaces
For expanded connectivity and compatibility you will also find an HDMI and SDI in and output. The SDI ports provide expanded frame rate flexibility for broadcast and production frame rate standards and compatibility through production and postproduction.
Form Factor
The Hollyland Mars 4K Wireless Video Transmission System feature corrosion and wear resistance for additional durability.
Optimizing operational functionality for fast configurations, and with wiggle-free, bullet styled antennas attached.
Color Touchscreen LCD
You will find a LCD colour touch LCD with easy to use UI that will enable quick configuration, and status checks.
Multiple Power Options
With the Hollyland Mars 4K Wireless Video Transmission System supports various DC power options, 6 or 16 VDC coax input, L-Series/NO-F batteries, and USB Type-C chargers.
App Monitoring
By using the Hollyview App for Android and iOS, this allows you to monitor your transmission on a smartphone or tablet.
- Hollyland Mars 4K Wireless Video Transmission System
- Mars 4K Transmitter
- Mars 4K Receiver
- 4 x Antenna
- 2 x Power Adapter
- Expansion Accessory
Antenna I/O | Transmitter/Receiver: 2 x RP-SMA Female |
Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC Input Receiver: 1 x HDMI Output Receiver: 1 x HDMI Output |
Embedded Audio | HDMI/SDI |
Audio I/O | None |
Power | Transmitter/Receiver: 1 x Coax Input Transmitter/Receiver: 1 x USB-C Input |
Encryption | None |
Wireless Range | 137.2 m (Line-of-Sight) |
Channel Bandwidth | 20 MHz |
Frequency Range | US: 5.1 to 5.8 GHz |
Latency | 0.06 ms |
RF Power | 21 dBm |
RF Sensitivity | -90 dBm |
Wi-Fi | Wi-Fi 4 (802.11n) |
Bluetooth | None |
Mobile App Compatible | Yes |
Video Format | HDMI UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 |
Audio Format | Not Specified by Manufacturer |
Timecode Support | Yes |
DC Input Power | 6 to 16 VDC |
Mounting | 1 x 1/4"-20 Female |
Environmental Protection | None |
Operating Temperature | -10 to 60°C |
Storage Temperature | -40 to 60°C |
Dimensions | Transmitter/Receiver: 115 x 65 x 32 mm |
