Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor
Choose PayGate at checkout for MobiCred Payments.
- Full HD 1080p Touchscreen Display
- DCI 4K24/UHD 4K30 HDMI Input & Output
- Headphone Port / Camera Control Port
- 3D LUT Import via SD Card Slot
- Waveform, Zebra, Audio Meters & More
- L-Series Battery Plate
- DC Input & Output Power Ports
- Sun Hood & Shoe Mount Included
- Six Function Buttons
Orms Bellville
Orms Cape Town
Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Full HD 1080p Touchscreen Display
- DCI 4K24/UHD 4K30 HDMI Input & Output
- Headphone Port / Camera Control Port
- 3D LUT Import via SD Card Slot
- Waveform, Zebra, Audio Meters & More
- L-Series Battery Plate
- DC Input & Output Power Ports
- Sun Hood & Shoe Mount Included
- Six Function Buttons
Choose PayGate at checkout for MobiCred Payments.
- Full HD 1080p Touchscreen Display
- DCI 4K24/UHD 4K30 HDMI Input & Output
- Headphone Port / Camera Control Port
- 3D LUT Import via SD Card Slot
- Waveform, Zebra, Audio Meters & More
- L-Series Battery Plate
- DC Input & Output Power Ports
- Sun Hood & Shoe Mount Included
- Six Function Buttons

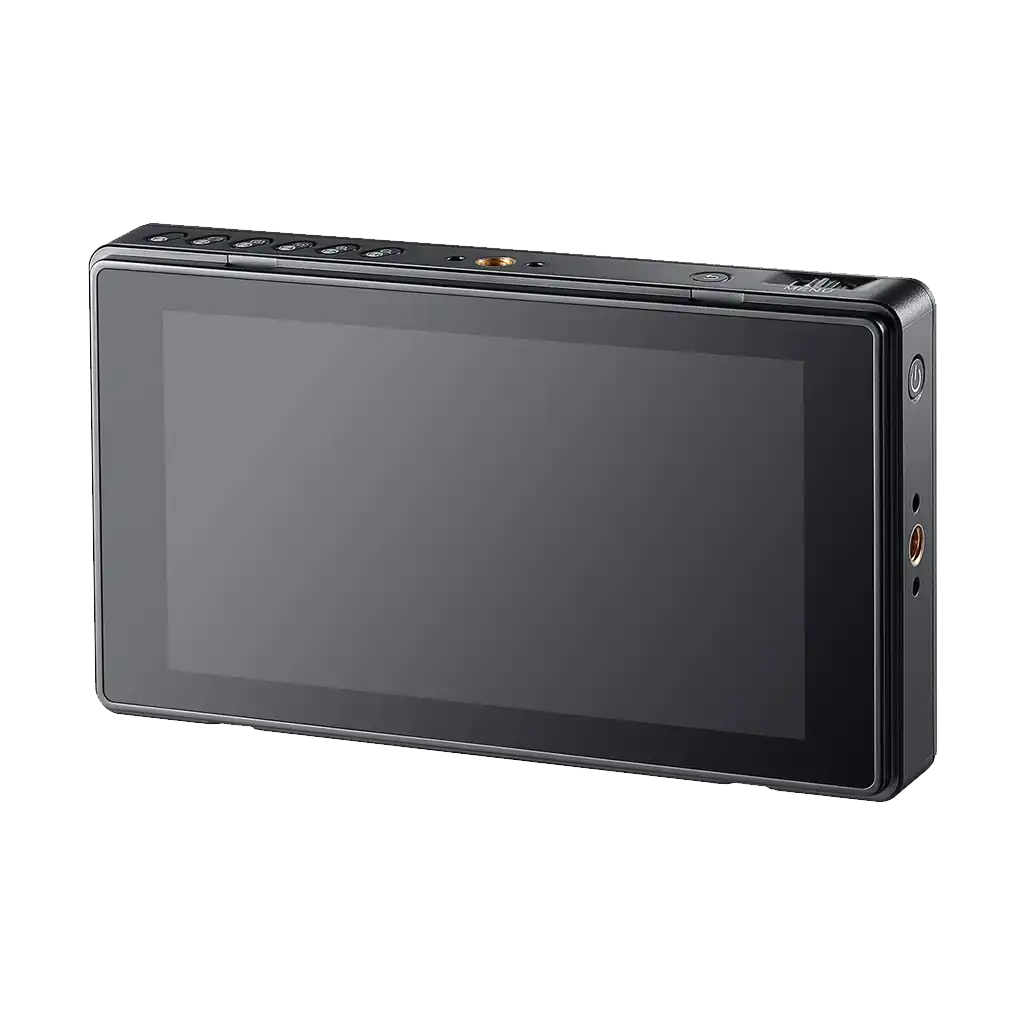

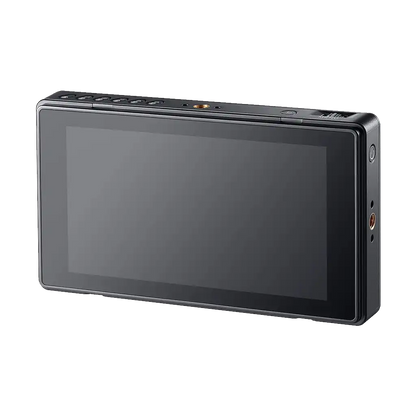

The Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor is a compact and lightweight on-camera monitor with a 1080p touchscreen display, HDMI in and output supporting up to DCI 4K24 and UHD 4K30 camera signals.
It is possible for other operators to monitor the image on-site by connecting a wireless transmitter.

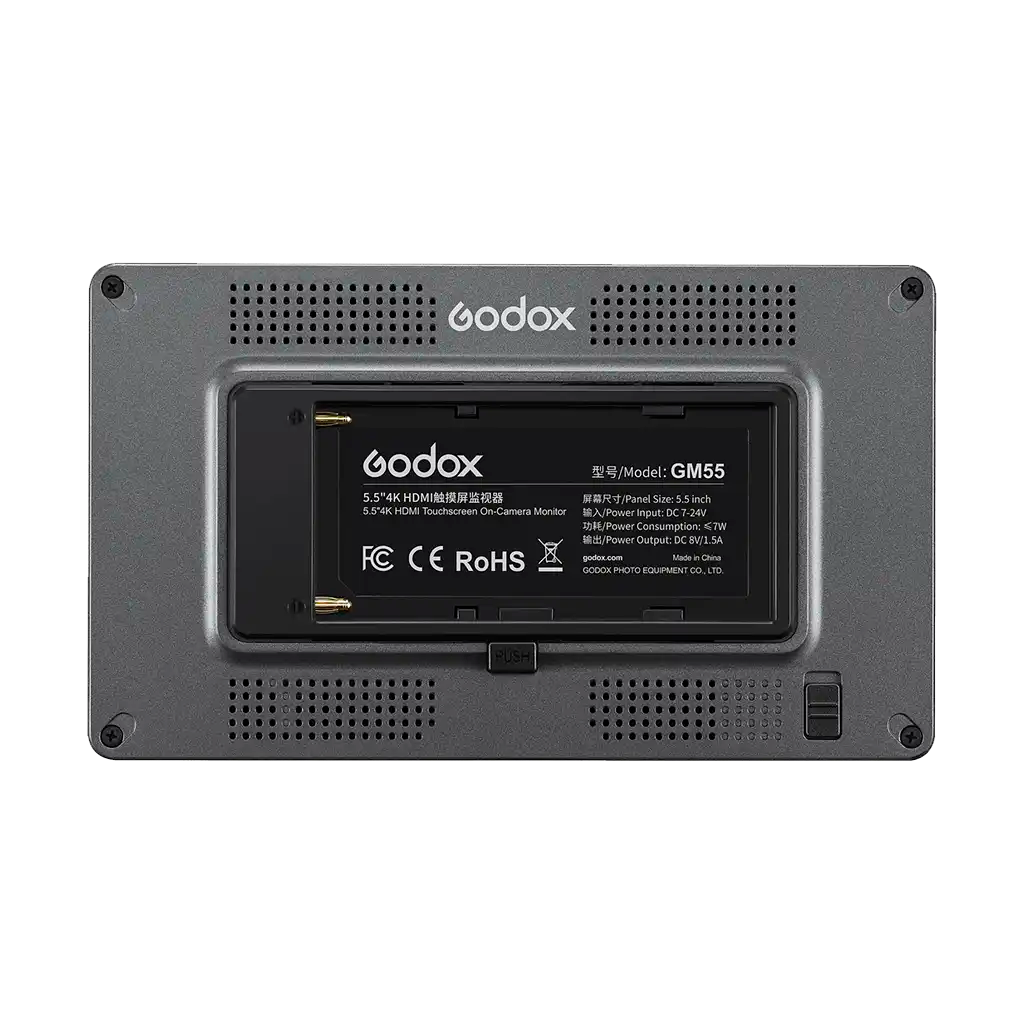

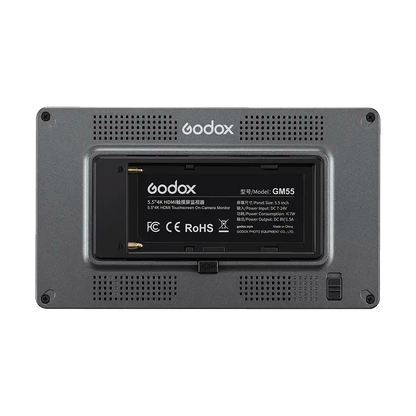

You will also find a headphone jack on the Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor for live monitoring. On the rear, you will find an L-Series battery plate for additional purchasable batteries and an additional-purchasable DC power input port for optional power cables.
With the Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor you have the ability to import up to 25 3D LUTs via an SD card slot. The wide variety of features can be adjusted via the touchscreen including the ability to adjust monitor focus, exposure and more in detail. Various buttons on top of the monitor and the sides enable you to control more functions as well.
Software Monitoring Features
- Rec. 709 color space
- False colour
- Zebra
- Waveform
- Vectorscope
- Histogram
- Focus assist
- Safety marker
- Center marker
- Audio meters
- Zoom
- Grid lines
- Aspect ratio (up to anamorphic 2.35:1)
- Image flip
- Godox GM55 5.5" 4K HDMI Touchscreen On-Camera Monitor
- Sun Hood
- Tilting Shoe Mount to 1/4"-20 Adapter
- 2 x HDMI Cable
- Screen Cloth
Display
Panel Type | IPS-Type LCD |
Display Size | 5.5" / 14.0Â cm |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° Vertical: 160° |
Touchscreen | Yes |
Maximum Brightness | 410 cd/m2 |
Contrast Ratio | 1000:1 |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
Pixels Per Inch (ppi) | 400 ppi |
I/O
Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power | 1 x Barrel Input |
Other I/O | 1 x Proprietary |
Format Support
Video Format | HDMI DCI 4K: 24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50 576p: 60 576i: 50 480p: 60 480i: 60 |
Gamma Curve | Rec709 |
Power
Battery Type | 1 x L-Series |
Power Consumption | 7 W |
Mounting
Mounting | 3 x 1/4"-20 Female |
Environmental
Operating Temperature | -10 to 50°C |
General
Material of Construction | Plastic |
Dimensions | 154 x 90 x 34 mm, Including Sun Hood |
Weight | 318 g, Including Sun Hood |
