DJI High-Bright Remote Monitor
Choose PayGate at checkout for MobiCred Payments.
- 1,500-nit high-bright monitor
- 7-inch wide colour gamut touchscreen display
- Output of HDMI and SDI signals
- Mirror Control Mode
- Independent recording and playback
- Remote parameter setting, remote control
- Motion control
- Customizable LUT and independent LUT for monitoring
- Focus assistance and exposure assistance
- Independent monitoring of HDMI input
Orms Bellville
Orms Cape Town
DJI High-Bright Remote Monitor
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1,500-nit high-bright monitor
- 7-inch wide colour gamut touchscreen display
- Output of HDMI and SDI signals
- Mirror Control Mode
- Independent recording and playback
- Remote parameter setting, remote control
- Motion control
- Customizable LUT and independent LUT for monitoring
- Focus assistance and exposure assistance
- Independent monitoring of HDMI input
Choose PayGate at checkout for MobiCred Payments.
- 1,500-nit high-bright monitor
- 7-inch wide colour gamut touchscreen display
- Output of HDMI and SDI signals
- Mirror Control Mode
- Independent recording and playback
- Remote parameter setting, remote control
- Motion control
- Customizable LUT and independent LUT for monitoring
- Focus assistance and exposure assistance
- Independent monitoring of HDMI input

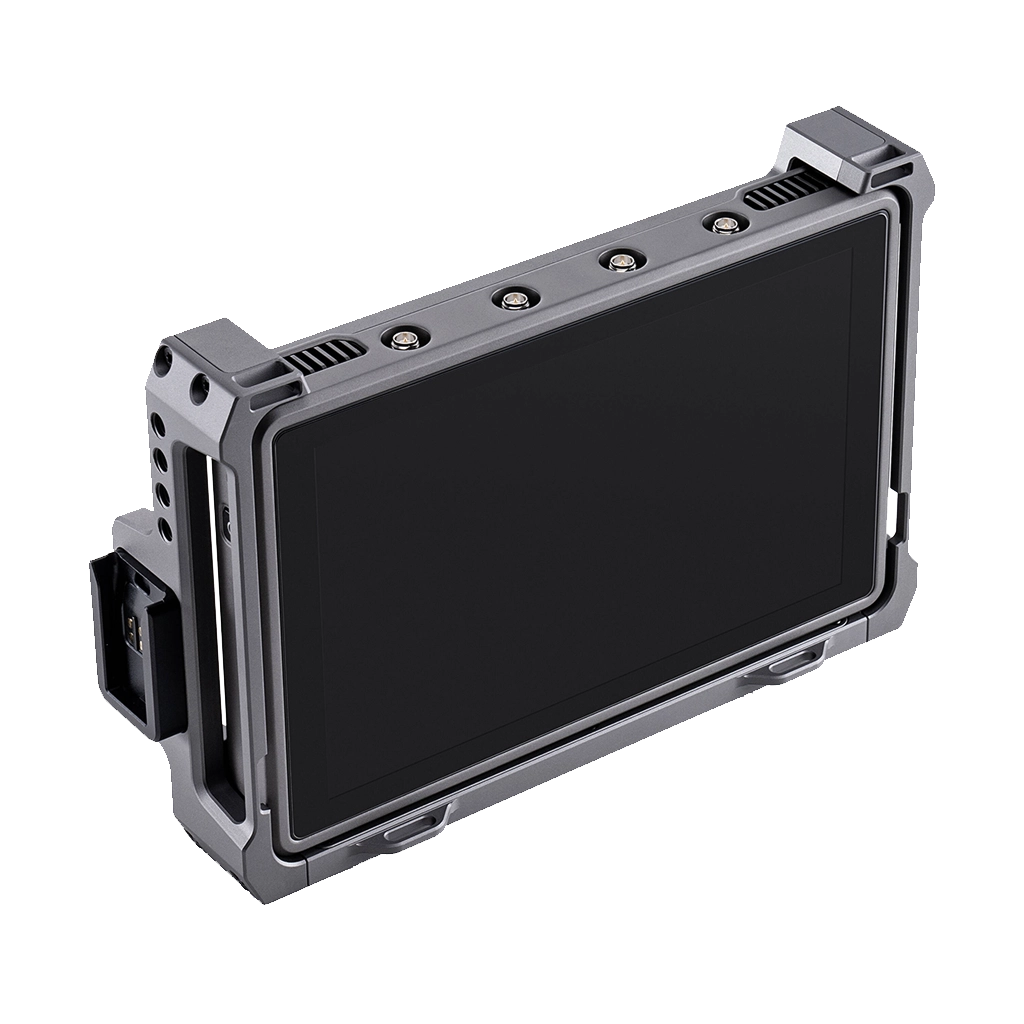

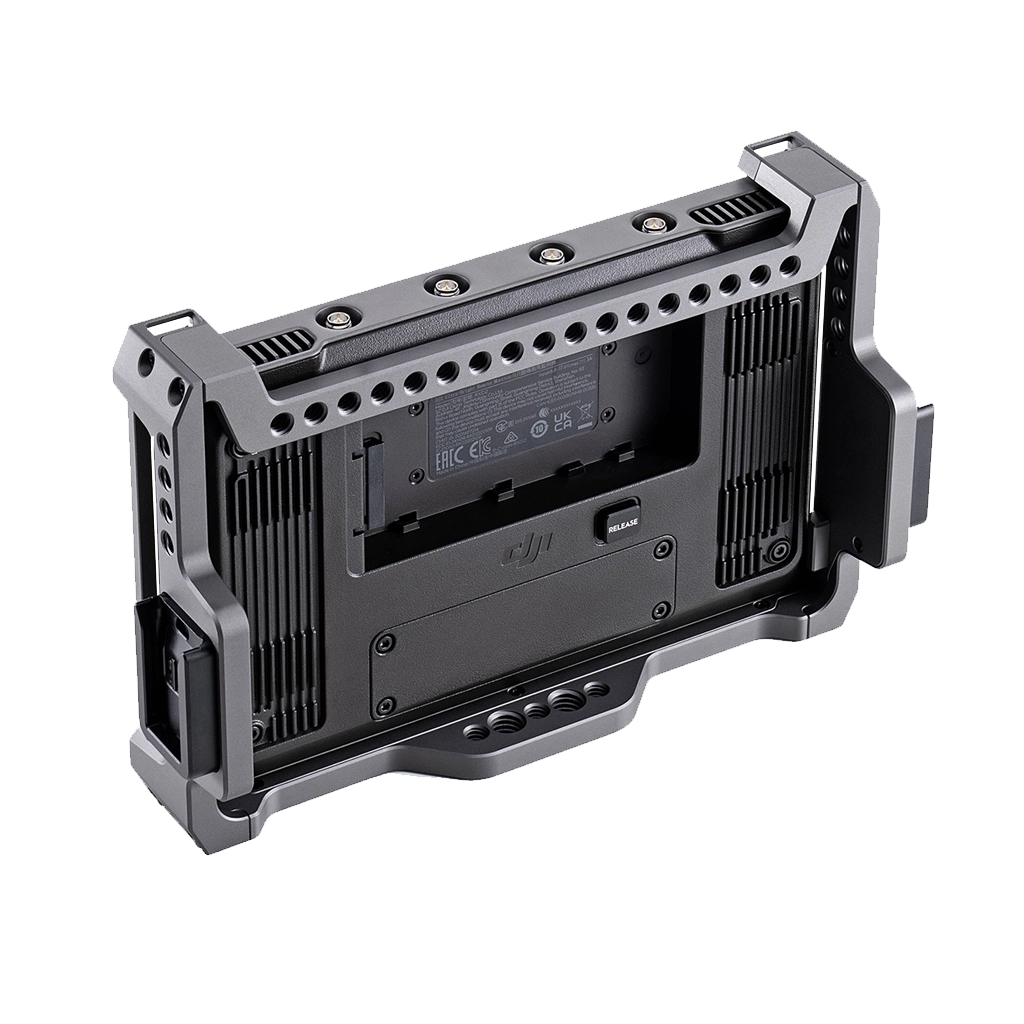

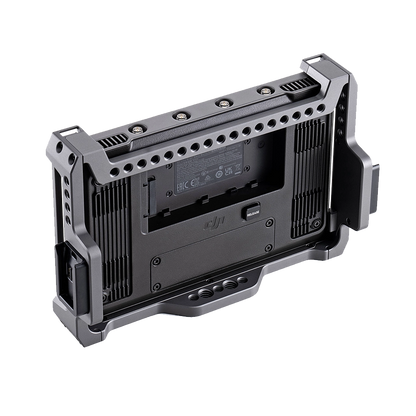

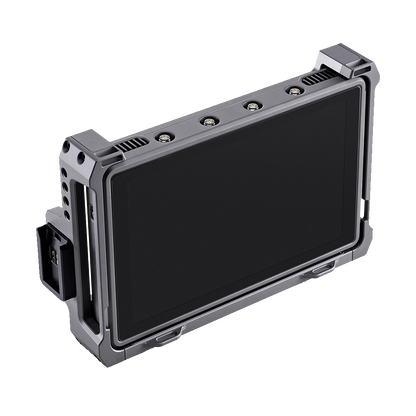

The DJI High-Bright Remote Monitor is designed to be used with your DJI Ronin 4D for crew members a remote view of what the gimbal actually records. This unit, with an included cage this unit is capable of receiving a wireless feed via the integrated received. So the high-bright monitor can be used by the director to view a shot, remotely focus the gimbal, or control gimbal movement.
The DJI Ronin 4D Video Transmitter features a 7" monitor is the perfect size to be handheld, while still big enough for the 1920x1200 resolution makes images big enough to see clearly at a maximum brightness of 1500 cd/m2 for interior as well as exterior shoots.
The monitor can be powered directly from the gimbal using the included power cable, or it can be powered with a DJI WB37 battery. An optional L-series adapter allows you to use an L-series battery.
Please note: In the event that a refund is requested on any DJI product for reasons not based on the rules set out in the Consumer Protection Act, and that product has been registered and/or activated, a 20% handling fee will be applicable.
The DJI High-Bright Remote Monitor supports one transmitter with two available transmission modes available.
The first mode is Broadcast Mode, in broadcast mode there is no limit to the number of receivers and is suitable for motoring with large crews. The second mode is Control Mode, for coordinated operations of two receivers.
- The High-Bright Remote Monitor can connect to the handgrips of the Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus.
- Enables remote control of focus and gimbal movements with high precision, recording start and stop, and camera setting adjustments.
- The built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.

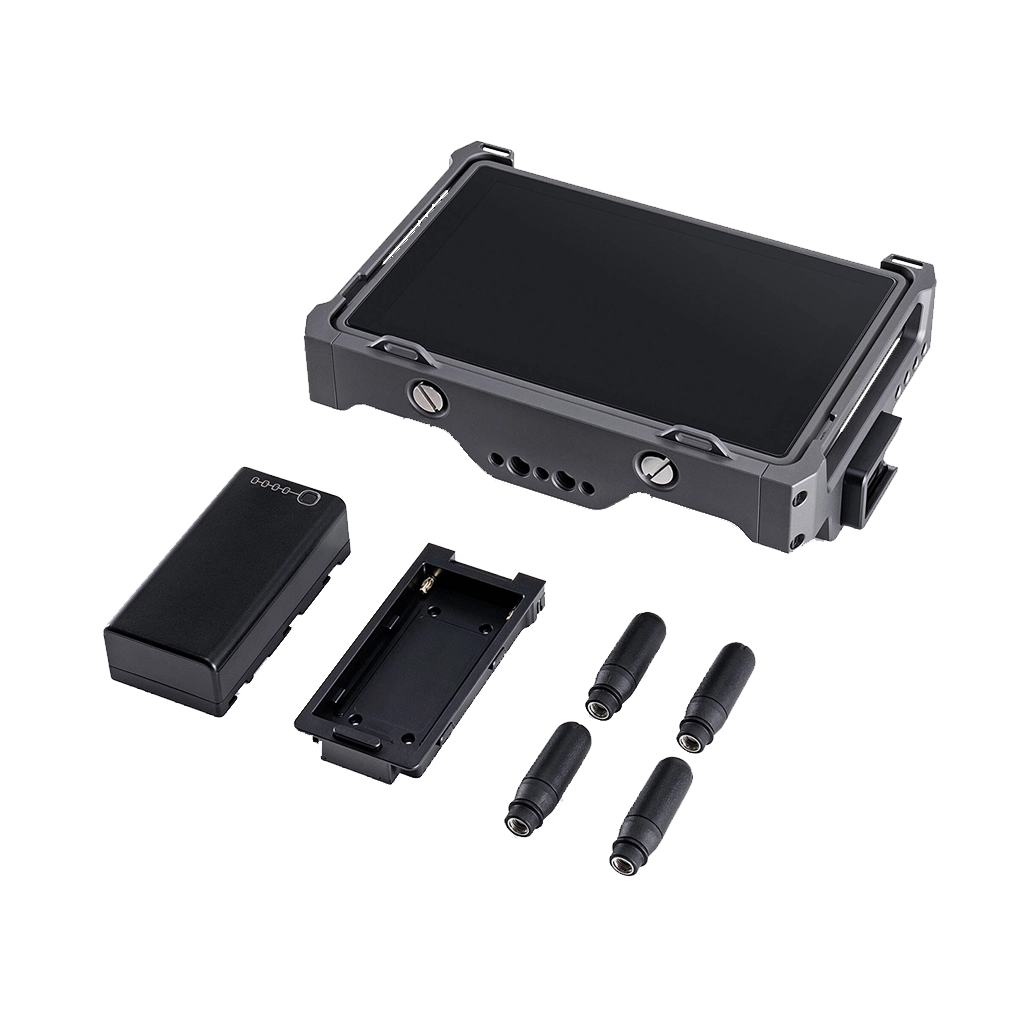

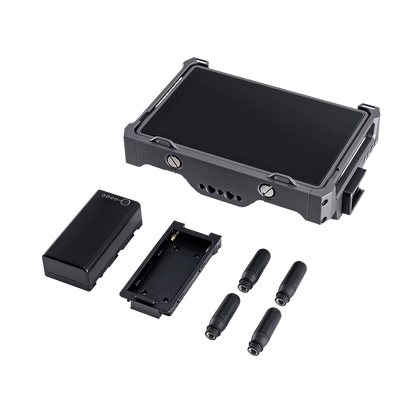

- High-Bright Remote Monitor
- 4 x Ronin Video Transmission Antenna
- Remote Monitor Tempered Glass Screen Protector
- Remote Monitor Hood
- Remote Monitor Cage
- NP-F Battery Adapter
- WB37 Intelligent Battery
- WB37 Battery Charging Hub (USB-C)
- 1.5mm Ball-End Hex Key
General
Compatibility | DJI Ronin 4D |
Display
Panel Type | LCD |
Size | 7" |
Resolution | 1920 x 1200 |
Maximum Brightness | 1500 cd/m2 |
I/O
USB | 1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output |
Video | 1 x HDMI Type A Input |
Audio | 1 x 3.5 mm Output |
Media/Memory Card Slot | Single Slot: microSD/microSDHC |
Power
Power Source | Battery |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Physical
Mounting | Multiple x 1/4"-20 |
Dimensions | 216 x 166 x 58 mm (Includes Cage) |
