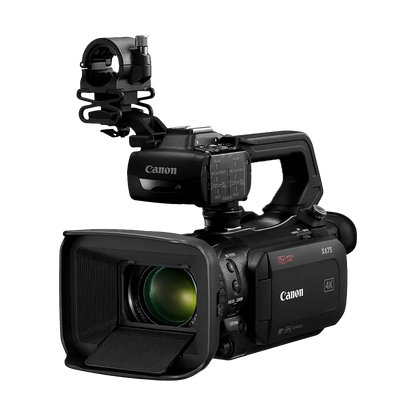

Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus
Choose PayGate at checkout for MobiCred Payments.
- 1" CMOS Sensor, DIG!C DV 6 Processor
- Up to UHD 4K30 Video Recording
- Mini-HDMI and 3G-SDI Outputs
- Integrated 15x Optical Zoom Lens
- Dual XLR and Mic/Line Audio Input
- USB Type-C Output with UVC Support
- 5-Axis Optical Image Stabilization
- Dual-Pixel CMOS Autofocus Feature
- Dual SD Relay and Simultaneous Recording
- 3.5" Touchscreen LCD, Tiltable OLED EVF
Orms Bellville
Orms Cape Town
Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1" CMOS Sensor, DIG!C DV 6 Processor
- Up to UHD 4K30 Video Recording
- Mini-HDMI and 3G-SDI Outputs
- Integrated 15x Optical Zoom Lens
- Dual XLR and Mic/Line Audio Input
- USB Type-C Output with UVC Support
- 5-Axis Optical Image Stabilization
- Dual-Pixel CMOS Autofocus Feature
- Dual SD Relay and Simultaneous Recording
- 3.5" Touchscreen LCD, Tiltable OLED EVF
Choose PayGate at checkout for MobiCred Payments.
- 1" CMOS Sensor, DIG!C DV 6 Processor
- Up to UHD 4K30 Video Recording
- Mini-HDMI and 3G-SDI Outputs
- Integrated 15x Optical Zoom Lens
- Dual XLR and Mic/Line Audio Input
- USB Type-C Output with UVC Support
- 5-Axis Optical Image Stabilization
- Dual-Pixel CMOS Autofocus Feature
- Dual SD Relay and Simultaneous Recording
- 3.5" Touchscreen LCD, Tiltable OLED EVF
The Canon XA75 UHD 4K30 Camcorder is designed as a lightweight compact camcorder featuring UHD 4K with a 1" CMOS sensor, 2 XLR audio inputs as well as one mini-HDMI output and BNC 3G-SDI output
The updated Canon XA75 features a larger 3.5mm LCD touchscreen display with higher resolution and is capable of being tilted with 0.36" OLED EVF, OSD metadata recording, and fast USB Type-C video-only output with UVC support for live streaming to a computer.
Lens optics features an integrated 15x HD optical zoom, a nine-blade circular iris as well as a DR gamma support.
Capable of recording EHD 4K30 and Full HD 1080p60 that captures dual SD card slots in XF-AVC and MP4 formats, also outputs to a mini-HDMI port. Capable of output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI output.
Compact Professional UHD 4K Camcorder
With the Canon XA75 Camcorder, you are able to capture sharp UHD images thanks to a 1" CMOS 4K sensor as well as a DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
On-Screen Display (OSD) "Time Stamp" Recording
OSD recording embeds timecode, date, time, and many more data onto the original camera files, basically timestamping information onto every frame of video.
UVC Livestreaming
With the Canon XA75 you are able to stream HD video directly from the camera via UVC1 to windows or macOS. Audio output through USB is not supported.
4K 15x Optical Zoom Lens
The Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus features adjustable focusing speeds along with advanced Dual-Pixel CMOS AF to provide fast and precise focusing.
The ultrabright 3.5" LCD sets focus by touching the AF point as required. Face Detection AF and Face Tracking are available, while Manual Focus is set via the focus/zoom ring.
Fx-AVC and MP4 for Flexible Recording
You have the option of choosing between XF-AVC and MO4 recording formats. Record XF-AVC UHD 4K 160 Mb/s at 30P and Full HD 45 Mb/s at 60p/60i and 30/24p. For smaller files, record MP4 in 4K 150 Mb/s at 30/24p and Full HD 35 Mb/s or 17 Mb/s at 60/30/24p.
Professional Input and Output
The Canon XA75 UHD 4K30 Camcorder features output options including HDMI, 3G-SDI, simultaneous backup, relay recording via dual SD cards as well and Infrared mode.
Record 5x slow motion in Full HD or Fast Motion in 4K/Full HD up to 1200x. Using a custom picture menu you can colour match with other Canon cameras.
Professional Audio Options
You will find two XLR terminals on the detachable handle as well as a 4-channel linear PCM bring pro audio options.
- Canon XA75 UHD 4K30 Camcorder with Dual-Pixel Autofocus
- Canon PD-E1 USB Power Adapter
- Canon BP-820 Lithium-Ion Single Battery Pack (1780mAh, Retail Packaging)
- Lens Hood with Lens Cover
- Handle
- Microphone Holder
Imaging | Â |
Sensor Resolution | Actual: 13.4 Megapixel (4268 x 3148) Effective: 8.29 Megapixel (3840 x 2160) |
Sensor Type | 1"-Type CMOS Sensor |
Image Stabilization | Optical in Integrated Lens Digital |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
Capture Type | Stills & Video |
 |  |
Exposure Control | Â |
Shutter Speed | 1/2000 to 1 Second |
Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed 0.1 Lux at 1/2 Shutter Speed |
White Balance | 2000 to 15,000K |
 |  |
Lens | Â |
Focal Length | 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) |
Optical Zoom Ratio | 15x |
Maximum Aperture | f/2.8 to 4.5 |
Minimum Focus Distance | Wide: 1.0 cm Entire Zoom Range: 60.0 cm |
Filter Size | 58 mm |
Focus Control | Autofocus Manual Focus |
 |  |
Internal Video Capture | Â |
Recording Modes | H.264/MP4 4:2:0 8-Bit 3840 x 2160 at 23.98p/24.00p/29.97p 1920 x 1080 at 23.98p/24.00p/29.97p/59.94p [35 to 45 Mb/s] 1280 x 720 at 59.94p [8 Mb/s] XF-AVC 4:2:0 8-Bit 3840 x 2160 at 23.98p/24.00p/29.97p 1920 x 1080 at 23.98p/24.00p/29.97p/59.94p |
Recording Limit | Up to 2120 Minutes |
Broadcast Output | PAL |
Built-In Microphone Type | Stereo |
Audio Recording | MP4: 2-Channel 16-Bit AAC Audio MP4: 4-Channel 16-Bit LPCM Audio XAVC: 4-Channel 24-Bit LPCM Audio |
 |  |
External Video Capture | Â |
IP Streaming | None |
 |  |
Interface | Â |
Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
Video I/O | 1 x Mini-HDMI (HDMI 2.0) Output 1 x BNC (3G-SDI) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Input 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
Power I/O | 1 x USB Type-C Input |
Other I/O | 1 x USB Type-C Output |
 |  |
Monitor | Â |
Size | 3.5" |
Resolution | 2,760,000 Dot |
Display Type | Articulating Touchscreen LCD |
 |  |
Viewfinder | Â |
Type | Built-In Electronic (LCD) |
Size | 0.36" |
Resolution | 1,770,000 Dot |
 |  |
Focus | Â |
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
 |  |
Environmental | Â |
Operating Temperature | 0 to 40°C (Recommended) |
Storage Temperature | -5 to 45°C |
Operating Humidity | 85% |
Storage Humidity | 60% |
 |  |
General | Â |
Battery Type | Canon BP-8 Series |
Power Consumption | 5.3 W |
Tripod Mounting Thread | 1/4"-20 Female |
Accessory Mount | 1 x Cold Shoe Mount |
Dimensions (W x H x D) | 21.3 x 10.9 x 9.1 cm |
Weight | 998 g (Body Only) 1451 g (With Battery, Handle, Recording Media) |
