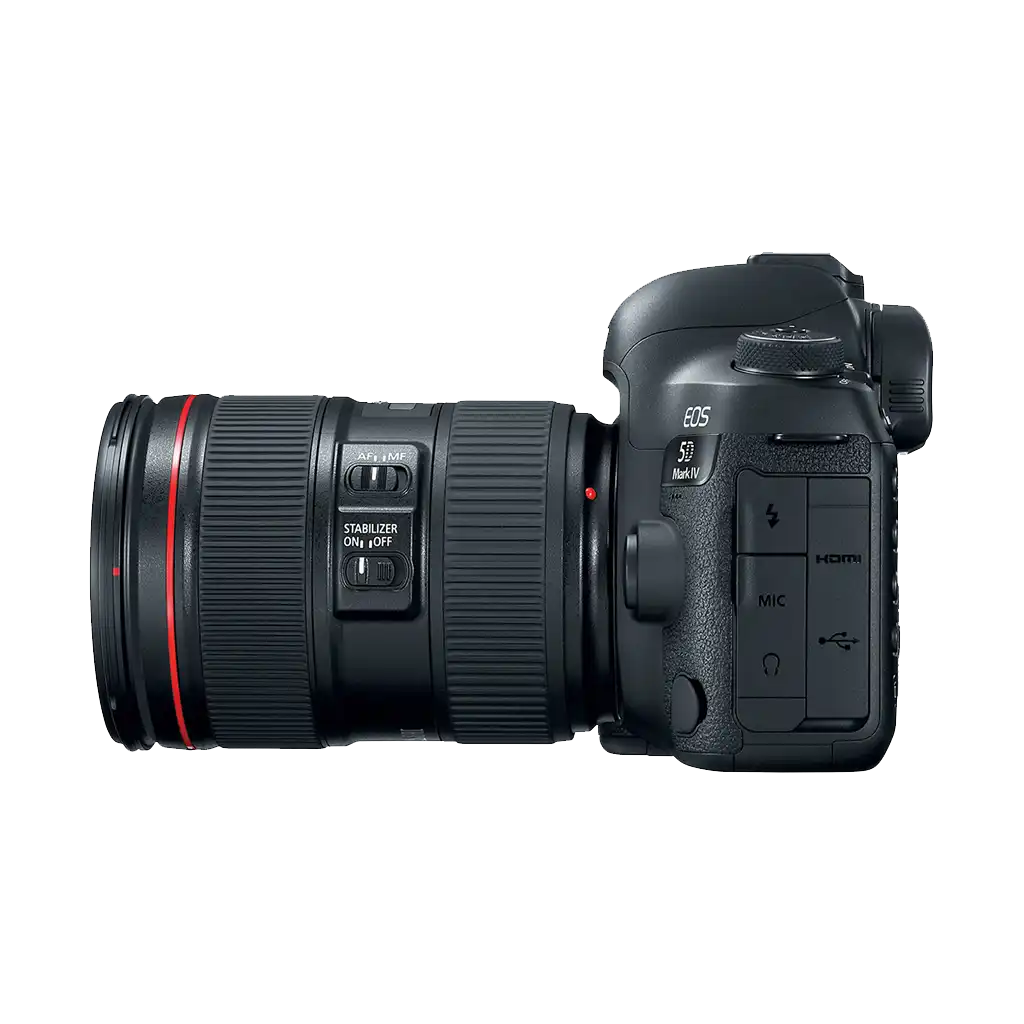

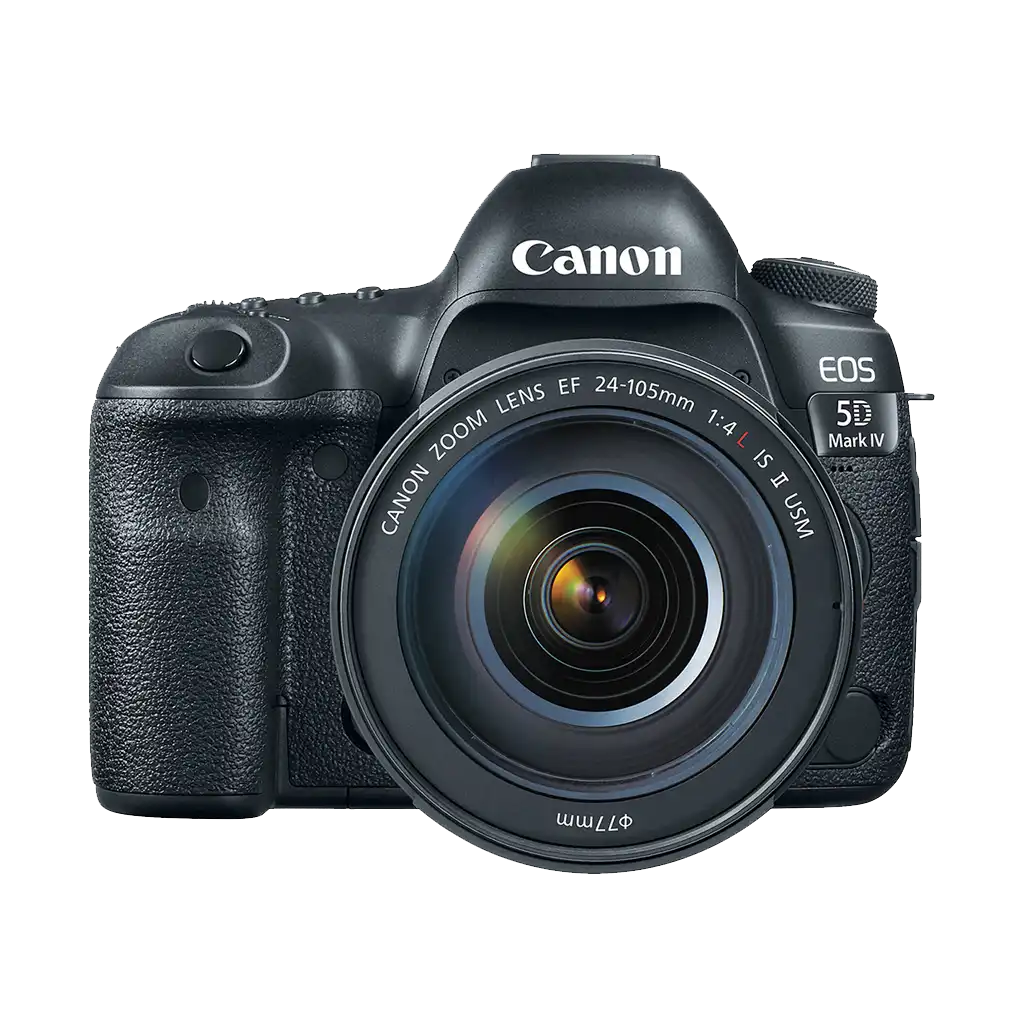

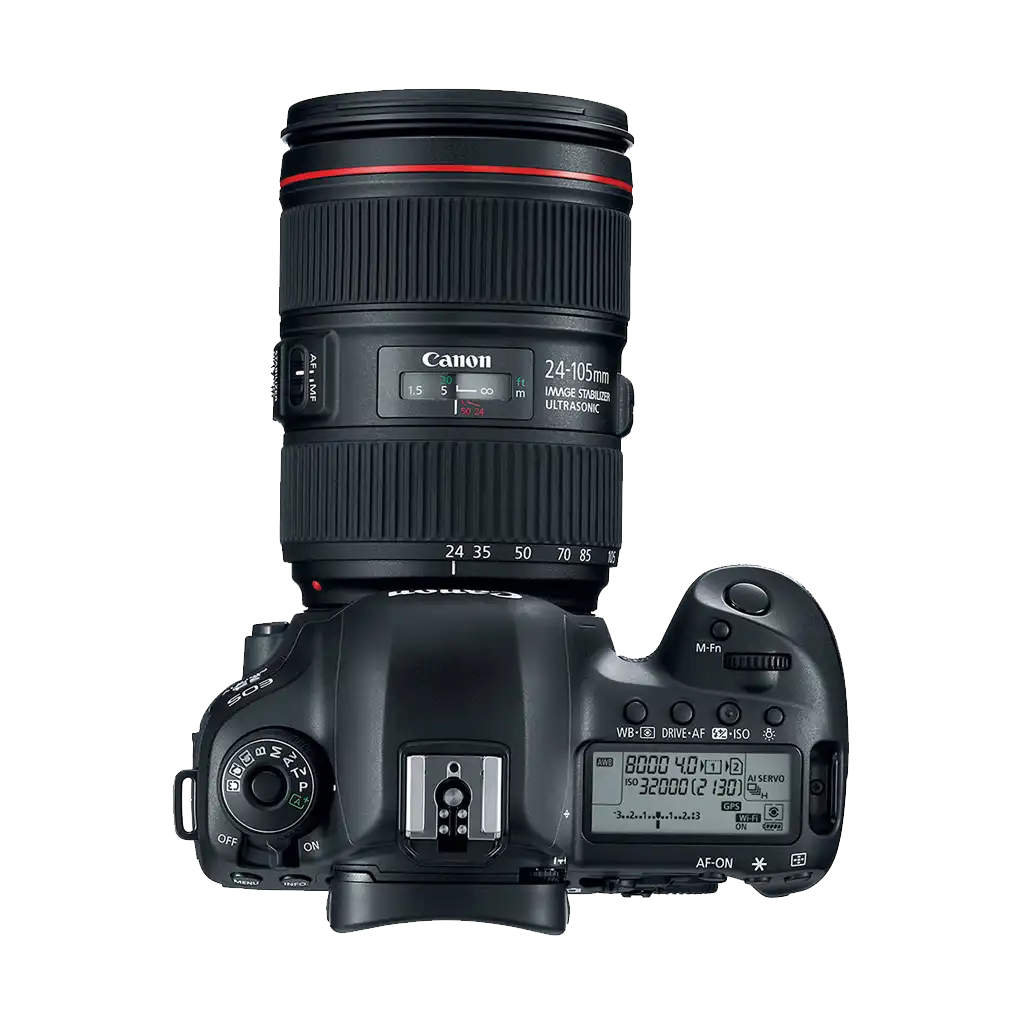

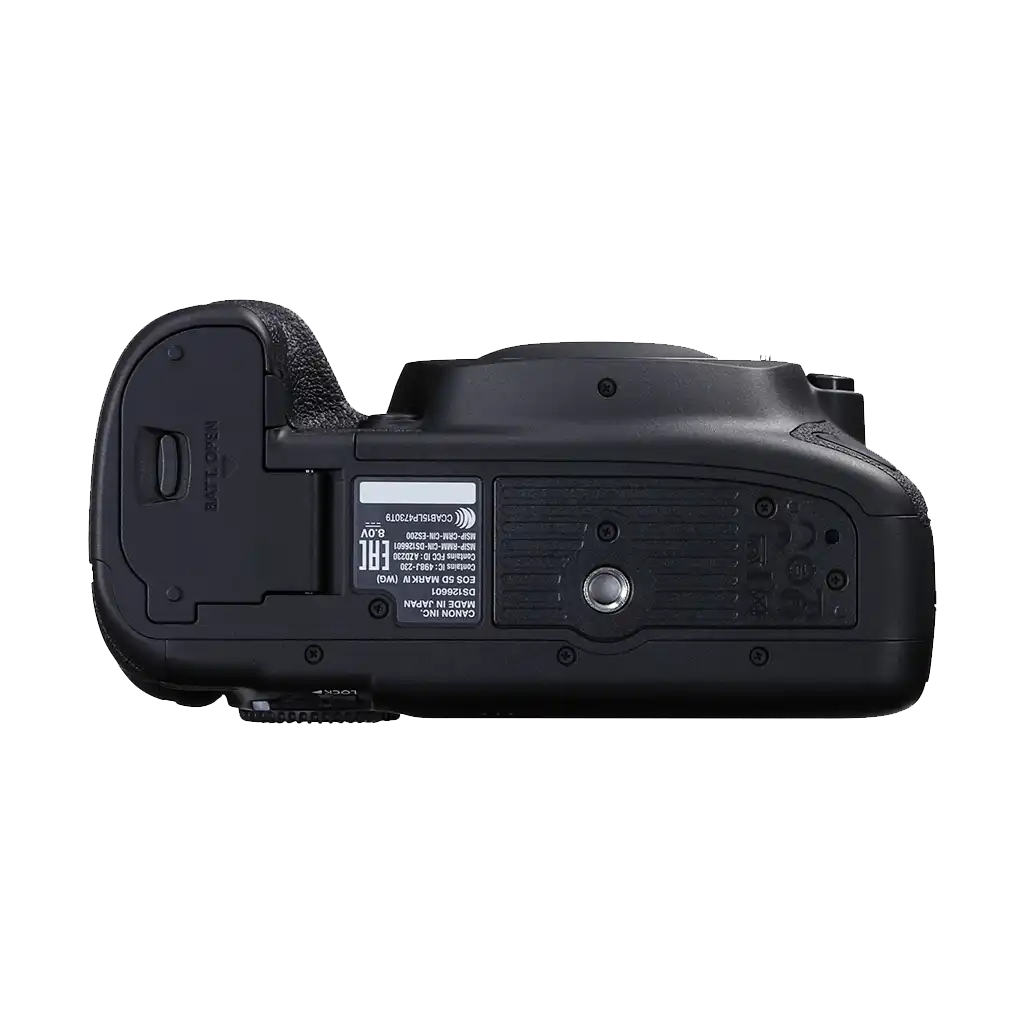

Canon EOS 5D Mark IV DSLR with 24-105mm f/4L IS USM II Lens
Choose PayGate at checkout for MobiCred Payments.
- Canon EOS 5D MK IV / Canon 5D MK 4 Features:
- 30.4MP Full-Frame CMOS Sensor
- Canon EF 24-105mm f/4L II Lens
- DIGIC 6+ Image Processor
- 3.2" 1.62m-Dot Touchscreen LCD Monitor
- DCI 4K Video at 30 fps; 8.8MP Still Grab
- 61-Point High Density Reticular AF
- Native ISO 32000, Expanded to ISO 102400
- Dual Pixel RAW; AF Area Select Button
- Dual Pixel CMOS AF and Movie Servo AF
- 7 fps Shooting; CF & SD Card Slots
- Built-In GPS and Wi-Fi with NFC
Orms Bellville
Orms Cape Town
Canon EOS 5D Mark IV DSLR with 24-105mm f/4L IS USM II Lens
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Canon EOS 5D MK IV / Canon 5D MK 4 Features:
- 30.4MP Full-Frame CMOS Sensor
- Canon EF 24-105mm f/4L II Lens
- DIGIC 6+ Image Processor
- 3.2" 1.62m-Dot Touchscreen LCD Monitor
- DCI 4K Video at 30 fps; 8.8MP Still Grab
- 61-Point High Density Reticular AF
- Native ISO 32000, Expanded to ISO 102400
- Dual Pixel RAW; AF Area Select Button
- Dual Pixel CMOS AF and Movie Servo AF
- 7 fps Shooting; CF & SD Card Slots
- Built-In GPS and Wi-Fi with NFC
Choose PayGate at checkout for MobiCred Payments.
- Canon EOS 5D MK IV / Canon 5D MK 4 Features:
- 30.4MP Full-Frame CMOS Sensor
- Canon EF 24-105mm f/4L II Lens
- DIGIC 6+ Image Processor
- 3.2" 1.62m-Dot Touchscreen LCD Monitor
- DCI 4K Video at 30 fps; 8.8MP Still Grab
- 61-Point High Density Reticular AF
- Native ISO 32000, Expanded to ISO 102400
- Dual Pixel RAW; AF Area Select Button
- Dual Pixel CMOS AF and Movie Servo AF
- 7 fps Shooting; CF & SD Card Slots
- Built-In GPS and Wi-Fi with NFC
The Canon EOS 5D Mark IV is the latest addition to the legendary EOS 5D family. Designed for photographers and videographers alike the Canon EOS 5D Mark IV features a brand new 30.4 megapixel full-frame sensor paired with a DIGIC 6+ processor to provide internal DCI 4K video recording at up to 30 fps, a wide ISO sensitivity range of ISO 50-102400 (expanded), and 7 frames per second (fps) high speed shooting.
The 5D Mark IV is easily the most versatile DSLR camera from Canon yet. Having roughly the same dimensions as a 7D or 6D, but packing video and photo features from the much larger 1D X Mark II, the 5D Mark IV will never feel out of place or underpowered. Whether you're shooting sports indoor or recording/tracking a fast moving subject, the EOS 5D Mark IV will deliver professional results.
This kit includes a Canon EF 24-105mm f/4L II Lens. This lens complements the versatility of the 5D Mark 4 with a wide focal range, USM autofocus motor, and 4-stop image stabilisation.
Canon EOS 5D Mark IV DSLR Camera features:
30.4 Megapixel Full-frame CMOS Sensor
The Canon EOS 5D Mark IV boast a full-frame 30 Megapixel sensor. The high megapixel count delivers images that are rich with detail and also enables ample cropping and recomposing after you have taken the shot. Being a full-frame sensor it shares the same dimensions as a 35mm negative film and provides a wider field-of-view than cropped sensor cameras. This sensor is paired with a DIGIC 6+ image processor to provide the 5D Mark IV with the ability to shoot 4k video internally, and to reduce noise in low light.
Versatile standard light sensitivity of ISO 10032000 (expandable to 50102400)
Featuring a light sensitivity range of ISO 10032000 (expandable to 50102400), the Canon EOS 5D Mark IV is incredibly versatile and well-suited for low-light photography. Its sensor has an improved S/N ratio plus an improved noise-processing algorithm to help deliver high-level light sensitivity along with its high resolution, with virtually no compromise in image quality. Whether working in a dimly lit auditorium, trying to capture the action at night, photographing at the fastest possible shutter speed or simply suppressing camera shake blur, the EOS 5D Mark IV has an extended ISO range that contributes to its ability to excel in nearly every situation it faces.
4K Motion JPEG video (DCI cinema-type 4096 x 2160) at 30p
The EOS 5D Mark IV is a remarkably capable video camera. Thanks to its impressive CMOS sensor and its high-speed DIGIC 6+ Image Processor, it can transition from taking still photographs to shooting videos in a near instant, capturing Digital Cinema (DCI) 4K Motion JPEG videos of 4096 x 2160 pixels at up to 30 fps. Adding to its versatility, it also supports the 4K broadcasting standard of 3840 x 2160 pixels with slight trimming on the left and right sides. Featuring advanced Live View operation and brilliantly responsive Dual Pixel CMOS AF, the EOS 5D Mark IV has a touch panel display with focus points that can easily be selected during operation, and quickly confirmed by selecting and saving an 8.8-Megapixel image with in-camera 4K still frame grab. The camera also supports both MOV and MP4 formats for a variety of applications right out of the camera
60 fps Full HD or 120 fps HD recording for smooth slow motion video
Along with capturing beautiful highly detailed 4K videos, the Canon 5D Mark IV is also able to shoot Full HD video at up 60 to frames per second, or 720p HD at frame rates as high as 120p. These high frame rates are ideal for smooth slow-motion video.
61-point autofocus with f/8 AF for teleconverter/extender setups
The EOS 5D Mark IV has a new AF sensor, with 61 AF points covering a broader vertical area of the image than its predecessor. This autofocus system delivers excellent accuracy and performance, with up to 41 cross-type AF points available, and extra-high-precision AF at up to 25 points on the AF array (when wide-aperture lenses are used). Low-light sensitivity of this AF sensor is also improved, with the center point delivering AF at levels down to EV -4. AF with tele extenders at f/8 maximum effective apertures is also greatly improved AF is possible at up to all 61 AF points, when specific Canon telephoto lenses are combined with Canon's Version III EF tele extenders
DIGIC 6+ processor
Powering all the EOS 5D Mark IV is Canon's DIGIC 6+ processor. This processor controls autofocus, metering, video data, and image data, then uses that data with advanced algorithms to provide autofocus and metering that is quick and accurate; and produce images and videos that are rich in detail and low in noise, with accurate colours and skin tones.
EV-3 or EV-4 focusing
With a highly-sensitive AF sensor the focus performance on the EOS 5D Mark IV is assured, even down to light levels as low as EV-3, or EV-4 when shooting in Live View with Dual Pixel CMOS AF.
Dual Pixel CMOS AF
Adding to its powerful and portable design, the EOS 5D Mark IV camera utilizes Canons smooth, fast and intelligent Dual Pixel CMOS AF. Featuring two photodiodes per pixel and each pixel capable of phase-difference detection autofocus, the CMOS sensor can deliver fast and accurate AF throughout approximately 80% of the image plane. Able to detect shifts in movement at the pixel level, Dual Pixel CMOS AF enables continuous automatic AF and AF tracking that enhances overall camera operation for sharp still images and smooth, accurate focus transitions in movies. Working with the EOS 5D Mark IVs 3.2" touch panel LCD screen, Dual Pixel CMOS AF lets photographers select focus points throughout the frame with the touch of a finger, and confirm focus by zooming in on the image or enlarging stills grabbed from video recordings.
150K RGB+IR metering sensor and EOS iTR AF system
The Canon 5D Mark IV uses a dedicated 150,000-pixel RGB+IR metering sensor to carry out highly accurate exposure metering. This sensor also works in conjunction with the cameras AF systems such as the EOS iTR AF system, which greatly enhances the subject tracking performance. Customise the tracking based on your needs with different modes for when focusing and tracking a face or a different subject
1.62 million dot 3.2" touch panel LCD monitor
The EOS 5D Mark IV camera features a 1.62 million dot, low-reflection 3.2-inch Clear View LCD II monitor for bright, sharp display in a wide variety of shooting situations. The LCDs touch panel surface facilitates fast, intuitive operation, including AF frame switching, menu and setting changes plus image magnification during Live View shooting and movie shooting. Still photographs can also be captured quickly with the touch panels shutter release function. A customizable Quick Control screen adds flexibility and convenience for specific users preferences. Image review and playback are also enhanced with the EOS 5D Mark IV cameras Clear View LCD II Monitor. Not only does the EOS 5D Mark IVs LCD provide a high-precision image for composition and playback, but it also remains visible even when the photographer is wearing polarized sunglasses! In numerous situations in the studio and in the field, the EOS 5D Mark IVs LCD panel is an ideal complement to its amazing TTL viewfinder.
Dual Pixel RAW
Each of the Canon 5D Mark IVs 30 million pixels is made up of two photodiodes which can be used together or individually. This technology enables the creation of Dual Pixel RAW files which contain a pair of images shot from two very slightly different points of view. When processed using Digital Photo Professional software, Dual Pixel RAW files allow photographers to perform one of three types of unique adjustments. Image Micro-adjustment allows the position of maximum sharpness to be adjusted which is great for fine-tuning portrait images. Bokeh Shift allows out-of-focus highlights to be shifted horizontally so they coincide better with in-focus elements, and ghosting reduction can be used to reduce the appearance of artefacts like flare.
SD and CF card slots
The EOS 5D Mark IV offers SD and CF card slots accepting fast UDMA 7 cards for a write speed of up to 167MB per second. Fast cards are essential when recording either 4K or high frame-rate videos.
Microphone and headphones sockets
Microphone and headphone sockets lets you record the perfect soundtrack to your videos and monitor audio for the perfect level.
High dynamic range (HDR) video mode
The Canon 5D MK IV's HDR movie mode can alternate between normal and under-exposed frames, compressing the brightest parts of a scene to retain more highlight detail thus delivering videos with a wider dynamic range.
Anti-flicker Function
The EOS 5D Mark IV features a cameras anti-flicker function that detects the frequency and phase of a light sources flicker and captures images near the point of peak brightness when the subject is most likely to be properly illuminated.
Built-in Wi-Fi and NFC
The 5D Mark IV features built-in Wi-Fi and NFC to connect to your smartphone, tablet or laptop. This makes posting to social media platforms easy, as you can send a file from your camera to your mobile device, and from your mobile device to a platform. FTP/FTPS support is great for those shooting in Wi-Fi equipped venues when added security is required.
Built-in GPS
The 5D MK IV's built-in GPS geotags each image with the taken location and keeps the EOS 5D Mark IVs internal clock accurate. GPS data helps when cataloguing pictures and lets you retrace your steps to find specific shooting locations.
Remote Operation
The 5D Mark IV can be controlled wirelessly from an iOS or Android smart device running the free Canon Camera Connect App. Remote operation is extremely useful for producing stable video or sharp pictures, as most camera operations can be done without touching the camera.
Intelligent Viewfinder II
The EOS 5D Mark IV utilises Canon's Intelligent Viewfinder II which offers a bright, customizable view that displays AF points, an electronic level and current camera settings.
Digital Lens Optimizer
Canon's Digital Lens Optimizer technology , which was previously only accessible when processing RAW files in the camera , can now be applied to JPEG files as they are captured. The Digital Lens Optimizer uses optical design values to correct various lens aberrations, diffraction, and the softening of resolution caused by the low-pass filter .
Canon EF 24-105mm f/4L IS II USM Lens
The Canon EF 24-105mm f/4L IS II USM is a quality versatile full-frame zoom lens that is perfect for covering most photography subjects. The lens is designed to meet the new technologies and high standards of the latest DSLR's. Dual Pixel CMOS works even better on this lens when compared to the mark I; and 4-stop image stabilisation helps to ensure that pictures stay sharp on the 5D mark IV's high resolution sensor.
In-depth video features of the Canon EOS 5D Mark IV
- Canon EOS 5D Mark IV DSLR Camera Body
- Canon EF 24-105mm f/4L II Lens
- LP-E6N
- LC-E6 Charger
- Eyecup Eg
- RF-3 Body Cap
- IFC-150U II USB 3.0 Interface Cable
- Cable Protector
- Wide Neck Strap
- Software CD-ROM
Specifications in detail
Image Sensor
Type
36 x 24 mm CMOS
Effective Pixels
Approx. 30.4 megapixels
Total Pixels
Approx. 31.7 megapixels
Aspect Ratio
3:2
Low-Pass Filter
Built-in/Fixed
Sensor Cleaning
EOS integrated cleaning system
Colour Filter Type
Primary Colour
Type
DIGIC 6+
Lens
Lens Mount
EF (excludes EF-S / EF-M lenses)
Focal Length
Equivalent to 1.0x the focal length of the lens
Focusing
Type
TTL-secondary image-forming phase-difference detection system with dedicated AF sensor
AF System/ Points
61 Point / max of 41 cross-type AF points inc 5 dual cross type at f/2.8 and 61 points / 21 cross-type AF points at f/8
The number of cross-type AF points will differ depending on the lens.
AF working range
EV -3 - 18 (at 23°C & ISO100)
AF Modes
One Shot
AI Focus
AI Servo AF
AF Point Selection
Automatic selection: All 61 point AF (based on EOS iTR AF setting)
Manual selection: Single point AF (selectable points 61, 15, 9 or cross type only points selectable)
Manual selection: Single point Spot AF
Manual selection: AF point Expansion 4 points (up, down, left, right)
Manual selection: AF point Expansion surrounding 8 points
Manual selection: Zone AF (all AF points divided into 9 focusing zones)
Manual selection: Large Zone AF (all AF points divided into 3 focusing zones)
AF points can be selected separately for vertical and horizontal shooting
Selected AF point display
transparent LCD in viewfinder and shown on Quick Control screen
AF Lock
Locked when shutter button is pressed half way or AF ON is pressed in One Shot AF mode. Using customised button set to AF stop in AI servo
AF Assist Beam
Emitted by an optional dedicated Speedlite
Manual Focus
Selected on lens
AF Microadjustment
Manual: Enter adjustment +/- 20 steps (wide and tele setting for zoom lenses)
Adjust all lenses by same amount
Adjust up to 40 lenses individually
Adjustments remembered for lens by serial number
Exposure Control
Metering modes
Approx. 150,000-pixel RGB+IR metering sensor, 252-zone metering. EOS Intelligent Subject Analysis system
(1) Evaluative metering (linked to All AF point)
(2) Partial metering (approx. 6.1% of viewfinder at centre)
(3) Spot metering: Center spot metering (approx. 1.3% viewfinder at centre)
AF point-linked spot metering not provided
(4) Centre weighted average metering
Metering Brightness Range
EV 0 - 20 (at 23°C, ISO100, with evaluative metering)
AE Lock
Auto: In the One-Shot AF mode with evaluative metering, AE lock takes effect when focus is achieved
Manual: By AE lock button in P, Av, Tv and M modes
Exposure Compensation
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
AEB
+/-3 EV in 1/3 or 1/2 stop increments
Anti-flicker shooting
Yes. Flicker detected at a frequency of 100 Hz or 120 Hz. Maximum continuous shooting speed may decrease
ISO Sensitivity
Auto 100-32000 (in 1/3-stop or whole stop increments)
ISO can be expanded to L:50, H1: 51200, H2: 102400,
Shutter
Type
Electronically-controlled focal-plane shutter
Speed
30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
Shutter Release
Soft touch electromagnetic release
White Balance
Type
Auto white balance with the imaging sensor
Settings
AWB (Ambeince priority/White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9
Custom White Balance
Yes, 1 setting can be registered
WB Bracketing
'+/-3 levels in single level increments
3, 2, 5 or 7 bracketed images per shutter release
Selectable Blue/Amber bias or Magenta/ Green bias
Viewfinder
Type
Pentaprism
Coverage (Vertical/Horizontal)
Approx. 100%
Magnification
Approx. 0.71x
Eyepoint
Approx. 21mm (from eyepiece lens centre)
Dioptre Correction
-3 to +1 m-1 (dioptre)
Focusing Screen
Fixed, with information Transparent LCD overlay
Mirror
Quick-return half mirror
Viewfinder Information
AF information: Single/Spot AF points, AF Frame, AF status, Focus indicator, AF mode, AF point selection, AF point registration
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, flash metering, spot metering circle, exposure warning, AEB, metering mode, shooting mode
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+), JPEG/RAW indicator, Dual Pixel RAW, Digital Lens Optimizer.
Composition information: Grid, Electronic level
Other information: Battery check, Warning symbol, Flicker Detection, drive mode, white balance
Depth of field preview
Yes, with Depth of Field preview button
Eyepiece shutter
On strap
LCD Monitor
Type
8.10cm (3.2") Clear View LCD II, approx. 1620K dots
Coverage
Approx. 100%
Viewing Angle (horizontally/vertically)
Approx 170° vertically and horizontally
Coating
Anti-reflection and Anti-smudge. Reinforced glass incorporated
Brightness Adjustment
Manual: Adjustable to one of seven levels
Color Tone Adjument: 4 settings
Touch-screen operations
Capacitive method with menu functions, Quick Control settings, playback operations, and magnified display. AF point selection in Live View and Movies, touch shutter is possible in Live View still photo shooting.
Display Options
(1) Quick Control Screen
(2) Camera settings
(3) Dual Axis Electronic Level
(4) Custom Quick Control Screen
Flash
Modes
E-TTL II Auto Flash, Metered Manual
X-sync
1/200sec
Flash Exposure Compensation
+/- 3EV in 1/3 increments with EX series Speedlites
Flash Exposure Bracketing
Yes, with compatible External Flash
Flash Exposure Lock
Yes
Second Curtain Synchronisation
Yes
HotShoe/ PC terminal
Yes / Yes
External Flash Compatibility
E-TTL II with EX series Speedlites, wireless multi-flash support
External Flash Control
via camera menu screen
Shooting
Modes
Scene Intelligent Auto, Program AE , Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb and Custom (x3)
Picture Styles
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space
sRGB and Adobe RGB
Image Processing
Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Lens optical correction:
- Peripheral illumination correction, Chromatic aberration correction (during/after still photo shooting, during Video only)
- Distortion correction, Diffraction correction, Digital Lens Optimizer (during/after still photo shooting)
Resize to M, S1, S2 or S3
Cropping: JPEG images can be cropped (Aspect ratios 3:2, 4:3, 16:9, 1:1)
- 45 cropping sizes selectable, from 11% to 95% (diagonal)
- Switch between vertical and horizontal cropping orientation
- Cropping frame can be moved using touch screen operation
RAW image processing
Multiple exposure
Drive modes
Single, Continuous High, Continuous Low, Silent Single, Silent Continuous, Self timer (2s+remote, 10s+remote)
Continuous Shooting
Max. Approx. 7fps. with full AF / AE tracking, speed maintained for up to unlimited number of JPEGs or 21 RAW images
Max. 4.3fps in Live View mode with AF Tracking
Interval timer
Built-in, number of shots selectable from 1-99 or unlimited (Selectable interval time - 1sec to 99hr 59mins 59sec). Bulb timer possible (Selectable time - 1sec to 99hr 59mins 59sec)
Live View Mode
Type
Electronic viewfinder with image sensor
Coverage
Approx. 100% (horizontally and vertically)
Frame Rate
29.97 fps (may increase when AF is performed)
Focusing
Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Dual Pixel CMOS AF (Face Detection and Tracking AF, FlexiZone - Single, FlexiZone - Multi), available with all EF lenses and Touch shutter
Metering
Real-time evaluative metering with image sensor (315-zone)
Partial metering (approx. 6.3% of Live View screen)
Spot metering (approx. 2.7% of Live View screen)
Center-weighted average metering
Active metering timer can be changed
Display Options
4 levels available through INFO. button: No information, Basic shooting information, Advanced shooting information and Advanced shooting information with Histogram
Multiple Exposure status also avaible in Multiple Exposure mode
File Type - Stills
Still Image Type
JPEG: 3 compression options
RAW: RAW, M-RAW, S-RAW and Dual Pixel RAW (14bit, Canon original RAW 2nd edition)
Complies with Exif 2.30 and Design rule for Camera File system 2.0
Complies with Digital Print Order Format [DPOF] Version 1.1
RAW+JPEG simultaneous recording
Yes, any combination of RAW + JPEG possible, separate formats to separate cards possible including Dual Pixel RAW +JPEG
Image Size
JPEG:
3:2 ratio (L) 6720x4480, (M1) 4464x2976, (S1) 3360x2240 , (S2) 1696x1280 , (S3) 640x480
4:3 ratio (L) 5952x4480, (M1) 3968x2976, (S1) 2976x2240 , (S2) 1920x1280 , (S3) 720x480
16:9 ratio (L) 6720x3776, (M1) 4464x2512, (S1) 3360x1888 , (S2) 1920x1080 , (S3) 720x408
1:1 ratio (L) 4480x4480, (M1) 2976x2976, (S1) 2240x2240 , (S2) 1280x1280 , (S3) 480x480
RAW:
(RAW) 6720x4480, (M-RAW) 5040x3360, (S-RAW) 3360x2240
Folders
New folders can be manually created and selected
File Numbering
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
EOS Movie
Movie Type
MOV Video: 4K (17:9) 4096 x 2160 - Motion JPEG (internal recording only), Full HD, HD - MPEG4 AVC / H.264 variable (average) bit rate, Audio: Linear PCM
MP4 Video: Full HD (16:9) 1920 x 1080 - MPEG4 AVC/H.264, Audio: AAC
Movie Size
4K (17:9) 4096 x 2160 (29.97, 25, 24, 23.98 fps) Motion JPEG
Full HD (16:9) 1920 x 1080 (59.94, 50, 29.97, 25, 23.98 fps) intra or inter frame
Full HD (16:9) 1920 x 1080 HDR ( 29.97, 25 fps) inter frame
Full HD (16:9) 1920 x 1080 (29.97, 25) lite inter frame
HD (16:9) 1280 x 720 (119.9, 100 fps) intra frame
Colour Sampling (Internal recording)
4K - YCbCr4:2:2 (8 bit)
Full HD/ HD - YCbCr4:2:0 (8 bit)
Movie Length
4K and Full HD - Max duration 29min 59sec. (excluding High Frame Rate movies). No 4GB file limit with exFAT CF card
High Frame Rate Movie
MOV Video: HD - 1280 x 720 at 100fps or 119.9fps
Recorded as 1/4-speed slow motion movie
Single scene maximum recording up to 7min 29sec.
4K Frame Grab
8.8 megapixel JPEG still image frame grab from 4K movie possible
Bitrate / Mbps
MOV:
4K (29.97p/25.00p/24.00p/23.98p): Approx. 500 Mbps
Full HD (59.94p/50.00p)/ALL-I: Approx. 180 Mbps
Full HD (59.94p/50.00p)/IPB Approx. 60 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/ALL-I: Approx. 90 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
HD (119.9p/100.0p)/ALL-I: Approx. 160 Mbps
MP4:
Full HD (59.94p/50.00p)/IPB (Standard): Approx. 60 Mbps
Full HD (29.97p/25.00p/24.00p/23.98p)/IPB (Standard): Approx. 30 Mbps
Full HD (29.97p/25.00p)/IPB (Light): Approx. 12 Mbps
Microphone
Built-in monaural microphone (48Khz, 16 bit x 2 ch)
HDMI Display
External monitor only, External Monitor only without information display or Simultaneous on camera and external monitor
HDMI Output
Full HD recording only, uncompressed YCbCr 4:2:2, 8-bit, sound output via HDMI is also possible
Focusing
Dual Pixel CMOS AF with Face Detection and Tracking AF, Movie Servo AF
Manual Focus
ISO
4K - Auto: 100-12800, H: 25600, H: 32000, H1: 51200, H2: 102400,
Full HD / HD - Auto: 100-25600, H: 32000, H1: 51200, H2:102400
Built-In GPS
Geotag Information
Longitude, Latitude, Elevation, Coordinated Universal Time
Positioning Modes
Mode 1: Camera continues to receive GPS signals at regular intervals when power is switched off
Mode 2: GPS is switched off when power is switched off
Position Accuracy
Within approx. 30 m/98.4 ft (Based on good GPS satellite reception conditions on a clear day with no surrounding obstructions)
Compatible Satellite Navigation Systems
- GPS satellites (USA)
- GLONASS satellites (Russia)
- Quasi-Zenith Satellite Michibiki (Japan)
Log Files Format
NMEA Format. One log file per day based
Log File Usage
Transfer log data to memory card and copy it to a computer
Use Map Utility to append the log file to the images
Digital Compass
Not provided
Other Features
Custom Functions
17 Custom Functions with 46 settings
Metadata Tag
User copyright information (can be set in camera)
Image rating (0-5 stars)
IPTC data (registered with EOS Utility)
Image transfer with caption (Caption registered with EOS Utility)
LCD Panel / Illumination
Yes / Yes
Water/ Dust resistance
Yes
Voice Memo
No
Intelligent Orientation Sensor
Yes
Playback zoom
1.5x - 10x in 15 steps
Display Formats
(1) Single image
(2) Single image with information (2 levels )
Basic - Shooting information (shutter speed, aperture, ISO and Image quality)
Detailed - Shooting information (shutter speed, aperture, ISO, metering Image, quality and file size), Lens information , Brightness and RGB histogram, White balance, Picture Style, Color space and noise reduction, Lens optical correction, GPS information
(3) 4 image index
(4) 9 image index
(5) 36 image index
(6) 100 image index
(7) Jump Display (1, 10 or 100 images, Date, Folder, Movies, Stills, Protected images, Rating)
(8) Movie edit
(9) RAW processing
(10) Rating
Slide Show
Image selection: All images, by Date, by Folder, Movies, Stills, Protected images or Rating
Playback time: 1/2/3/5/10 or 20 seconds
Repeat: On/Off
Histogram
Brightness: Yes
RGB: Yes
Highlight Alert
Yes
Image Erase
Single image, Selected images, Folder, Card
Image Erase Protection
Erase protection of Single image, Folder or Card
Self Timer
2 or 10 sec.
Menu Languages
25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update
Update possible by the user (Camera, Lens, WFT, External Speedlite)
Interface
Computer
SuperSpeed USB 3.0
WiFi
Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support Features supported - FTP/FTPS, EOS Utility, SmartPhone, Upload to Web , Wireless printing
Other
HDMI mini out (Type C, HDMI-CEC compatible), External Microphone In / Line In (Stereo mini jack), Headphone socket (Stereo mini jack), N3-type terminal (remote control terminal)
Direct Print
PictBridge
Yes (Via Wireless LAN only)
Storage
Type
1x CompactFlash Type I (UDMA 7 compatible) (Incompatible with Type II and Microdrive)
1x SD/SDHC/SDXC and UHS-I
Supported Operating System
PC & Macintosh
Windows 7 (excl. Starter Edition) Windows 8 and Windows 10
OS X v10.7-10.11
Software
Image Processing
Digital Photo Professional 4.5 or later (RAW Image Processing)
Other
EOS Utility 3.5 or later (inc. Remote Capture ), Picture Style Editor, Map Utility, EOS Lens Registration Tool, EOS Web Service Registration Tool, Canon Camera connect app (iOS/ Android)
Power Source
Batteries
Rechargeable Li-ion Battery LP-E6N (supplied) / LP-E6
Battery life
Approx. 900 shots (at 23°C)
Approx. 850 (at 0°C)
Battery Indicator
6 levels + percentage
Power saving
Power turns off after 1, 2, 4, 8, 15 or 30mins
Power Supply & Battery Chargers
Battery charger LC-E6E (supplied), Battery charger LC-E6, AC Adapter AC-E6N and DC Coupler DR-E6, AC Adapter Kit ACK-E6N/ACK-E6, Car Battery Charger CBC-E6
Accessories
Viewfinder
Eyecup Eg, Eg-series Dioptric Adjustment Lens with Rubber Frame Eg, Anti Fog Eyepiece Eg, Angle Finder C
Wireless File Transmitter
Wireless File Transmitter WFT-E7B
Lenses
All EF lenses (excluding EF-S / EF-M lenses)
Flash
Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 380EX, 420EX, 430EX, 430EX II, 430EX III 550EX, 580EX, 580EX II, 600EX, 600EX-RT, 600EX-II-RT, Macro-Ring-Lite MR-14EX, Macro Ring Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
Remote Controller/ Switch
Remote control with N3 type contact, Wireless Controller LC-5 and Speedlite 600EX-II-RT
Other
BG-E20 battery grip, Hand Strap E2, Connect Station CS100
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
- The number of AF points, cross-type AF points, and dual cross-type AF points vary depending on the lens used
- Recommended Exposure Index
- with 50mm lens at infinity, -1m-1 dpt
- Not possible with M-RAW and S-RAW
- Frame grab images from 4K movies and images shot in S3 quality cannot be resized
- RAW image processing during image Playback only with RAW and Dual Pixel RAW only
- Large/Fine resolution
- Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Maximum fps and buffer capacity may be reduced depending on the cameras settings, light level, subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
- Figures quoted are when used with UDMA 7 Compact flash memory card
- Minimum card write speed required for 4K 30p recording: CF – 100MB/sec.
- Wi-Fi use may be restricted in certain countries or regions
- Viewfinder shooting. Based on the CIPA Standard and using the battery supplied with the camera, except where indicated
