The Canon CR-N300 4K NDI PTZ Camera with 20x Zoom is the perfect solution for someone needing remotely controlled cameras with minimal crew and a high-resolution output.
Perfect for your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event space, or even add an extra camera to your documentary shoot.
The Canon CR-N300 4K NDI PTZ Camera with 20x Zoom shares many features of an Canon Camcorder, such as 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, scene modes, 20x optical zoom, 20x digital zoom, microphone input, and video capture and output up to UHD 4K.
1/2.3" CMOS Dual-Pixel Sensor
The Canon CR-N300 4K NDI PTZ Camera employs Canon 1/2.3" UHD 4K CMOS image sensor capable of UHD 4K video capture at 30p and up to 60p in Full HD. The above makes the CR-N300 a notable contender for use in professional productions. Incorporating Canon's DIG!C DV 6 Image Processor, for providing convenient operability, advanced performance as well as high image quality.
Oversampling HD Processing
The full HD capture and output (oversampling HD processing) takes full advantage of the image information acquired by the 4K sensor to generate beautiful, high-definition full HD video. This helps content creators produce stunningly detailed FHD video when utilizing the CR-N300.
Canon 4K UHD Lens
An 20x optical zoom lens and exhibits a wide viewing angle of 65.6° (horizontal) in 4K is attached the the Canon CR-N300 PTZ Camera. At the wide end, the 29.3mm (35mm equivalent) lens can shoot tight spaces giving the effect of wide cinematic shots. The camera utilizes aspheric lens elements to achieve 4K image quality while minimizing various aberrations over the entire zoom range.
Hybrid AF is employed as well, this is a auto-focus system combining hi-speed and high-precision contrast AF.
Smooth & Responsive Pan / Tilt Performance
The Canon CR-N300 4K NDI PTZ Camera is equipped with the PT drive mechanism, this can change the pan/tilt speed in incremental steps. The CR-N300 exhibits a variable pan speed of 0.2 to 300°/second and variable tilt speed of 0.2 to 170°/second.
Four Scene Modes for Impressive Video
- Portrait mode—exhibits a blurred background while subject is in sharp focus
- Sports mode—enhances capture of moving objects
- Low-Light mode—enhances capture of bright images, even in dark places
- Spotlight mode—enhances capture of beautiful images of spotlighted objects
Webcam via USB Connection
With USB port in addition to the IP, SDI, and HDMI. It is equipped with the specifications of UVC (Video: USB Video Class Ver. 1.1) and UAC (Audio: USB Audio Class Ver. 1.0), which are the connection standard of USB cameras and computers. By connecting the Canon CR-N300 4K NDI PTZ Camera with 20x Zoom via USB to a compatible device, live video and audio output is possible via USB.
This means the camera can also be used as webcam, delivering up to full HD 1920 x 1080 video feeds for high-quality web conferencing.
Easy Integration into IP Streaming
The Canon CR-N300 4K NDI PTZ Camera is also equipped with an RJ45 interface designed for IP communication. (SDI and HDMI ports also available). The CR-N300 can also be combined with other third-party equipment for control purposes.
IP Multi-Stream Support
Distribution to multiple protocols via IP can be done simultaneously. Also known as multi-stream while the CR N300 can distribute up to three streams simultaneously.
RTMP Streaming Protocol Supported
Real-Time Messaging Protocol (RTMP) is supported. This makes it possible to play large video/audio files a the same time as distribution, all without the need to wait for the completion of download. Like for live streaming applications.
NDI|HX Live Video Production Support Protocol
The Canon CR-N300 4K NDI PTZ Camera supports the NDI (Network Device Interface) protocol that is well-established in the field of video production and broadcasting as the supporting RTP (Real-Time Transport Protocol).
Standard VISCA Protocol
The camera can be controlled remotely via IP by supporting the standard VISCA protocol .When connecting a VISCA protocol-compatible remote controller to the camera over IP or serial RS-422, the camera can be operated remotely and shooting settings can be adjusted by utilizing the remote controller.

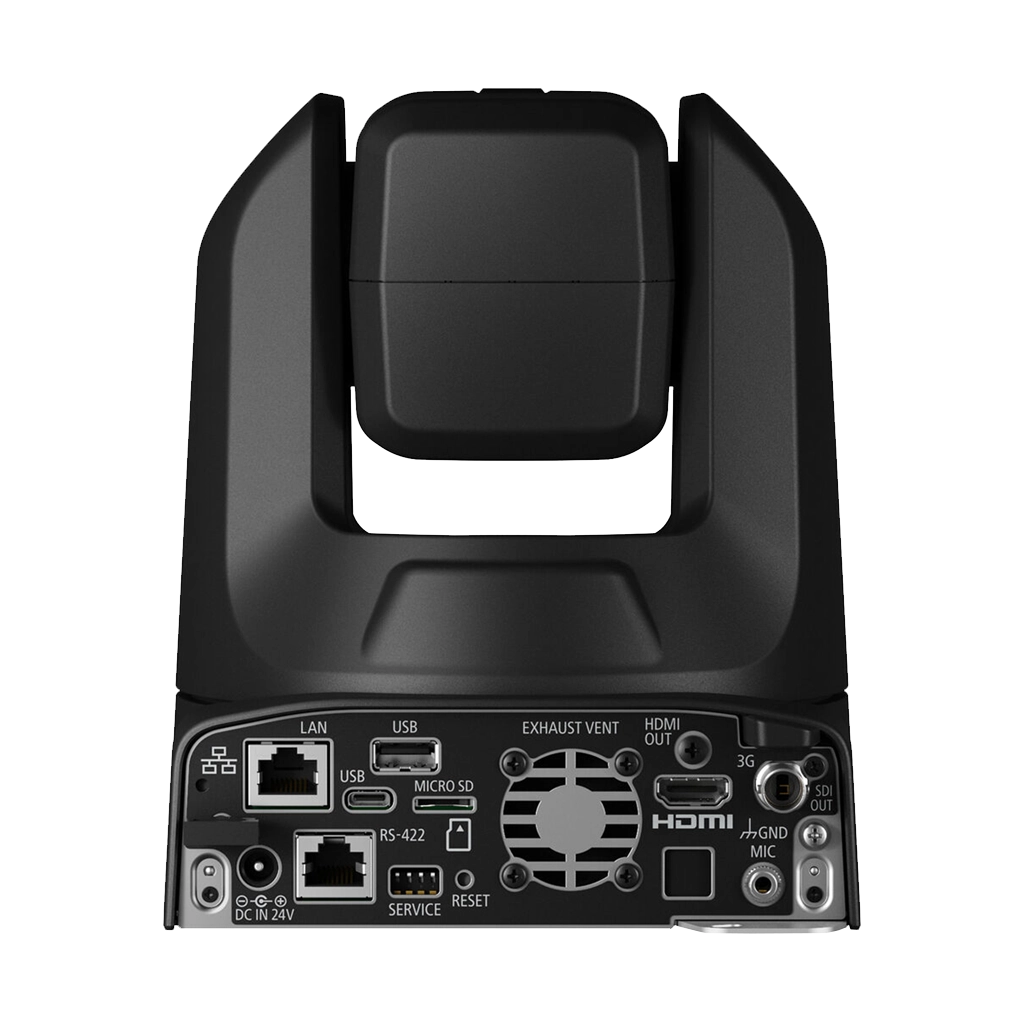

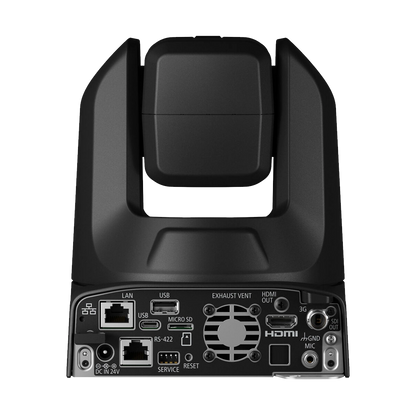

Various Interfaces Supported for Multiple Environments
The Canon CR-N300 4K NDI PTZ Camera features four output interfaces. Using the IP and HDMI outputs when capturing UHD 4K at 30p or Full HD at 59.94p. While the SDI output is capable of full HD resolution and is suitable for usage when requiring high image-quality video at 59.94p.
High-Quality Audio Input/Output
The CR-N300 offers a method to capture and output high-quality audio through a 3.5mm stereo mini-jack mic terminal.
Wireless Remote Controls Supported
Further the IP interface, the Canon CR-N300 is also Wi-Fi compatible. When using an supported HTTP browser, this allows you to remotely access the cameras controls and settings.
Multiple cameras can be assigned to the application.
Additionally, the CR N300 includes a infrared remote that cna be used to control the camera remotely.
Remote Camera Control Application
The Canon CR-N300 4K NDI PTZ Camera can be controlled using the Remote Camera Control Application. This makes it possible to achieve a multi camera operation. Using the Windows application to control up to nine cameras and display video as the same time.
- Canon CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
- IR Remote Control
- Remote Battery
- Safety Wire
- Ceiling Plate
- Safety Wire with Screw
- AC Adapter
- Power Cable
Sensor Type | 1/2.3"-Type CMOS Sensor |
Sensor Resolution | Actual: 21.14 Megapixel Effective: 8.29 Megapixel (3840 x 2160) |
IR Cut Filter | No |
Built-In ND Filter | Mechanical Filter Wheel with Clear, Graduated 3-Stop (1/8) ND Filters |
Image Stabilization | Optical in Integrated Lens |
Focus Control | Autofocus Manual Focus |
Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/2000 to 1/6 Second |
Gain | 0 to 36 dB |
Minimum Illumination | 1.5 Lux at 1/30 Shutter Speed |
Flip / Mirror Support | Image Flip, Mirror (Vertical) |
White Balance | 2000 to 15,000K Presets: AWB, Manual, Set A, Set B |
Focal Length | 3.7 to 73.4mm (35mm Equivalent Focal Length: 29.3 to 601mm) |
Optical Zoom Ratio | 20x |
Max Digital Zoom | 20x |
Field of View | Horizontal: 3.6 to 65.6° Vertical: 2 to 39.8° |
Maximum Aperture | f/1.8 to 2.8 |
Minimum Focus Distance | Wide: 1.0 cm Telephoto: 60.0 cm |
External Recording Modes | 4:2:2 10-Bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:2 10-Bit via SDI/BNC 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-Bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps USB HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps |
Embedded Audio | SDI |
Broadcast Output | NTSC/PAL |
Gamma Curve | Rec709, Standard |
IP Streaming | H.264, NDI|HX, RTMP, RTMPS, RTP, RTSP, SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p |
Presets | 100 via IP, VISCA |
Move Speed | Pan: 2 to 300°/sec Tilt: 0.2 to 170°/sec |
Movement Range | Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 100°) |
Tally Light | Yes |
Supported Control Protocols | Canon XC IR RS-422 VISCA |
Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 (NDI) Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
Audio I/O | 1 x 3.5 mm TRS Stereo Microphone Input |
Other I/O | 1 x RJ45 (RS-422, VISCA) Input 1 x USB-A Input |
Built-In Speaker | No |
PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (24VDC) Input |
Power Consumption | PoE: 16.2 W Power Supply: 24 VDC 15 W |
Operating Temperature | 0 to 40°C |
Storage Temperature | 0 to 40°C |
Operating Humidity | 10 to 90% |
Storage Humidity | 10 to 90% |
Mounting | 1 x 1/4"-20 Female for Tripod |
OS Compatibility | Windows 10 (64-Bit Only) macOS 11 |
App Compatible | Yes: Android & iOS |
Dimensions (W x H x D) | 154 x 178 x 164 mm (Without Protrusions) |
Weight | 2.2 kg |
