BOYA BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System
Choose PayGate at checkout for MobiCred Payments.
- Dual-Channel Wireless Receiver
- 2 x Wireless Bodypack Transmitters
- 2 x Omnidirectional Lavalier Microphones
- 48 Selectable UHF Channels
- Mic and Line-In, Plus Mute Function
- Easy-to-Read LCD Displays
- Selectable Mono and Stereo Modes
- Headphone Monitor Output on Receiver
- Powered by Two AA Batteries
- Includes Mic Clips and Foam Windscreens
Orms Bellville
Orms Cape Town
Remote Warehouse (Available in 2 - 4 Business Days)
BOYA BY-WM8 Pro-K2 UHF Dual-Channel Wireless Lavalier System
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Dual-Channel Wireless Receiver
- 2 x Wireless Bodypack Transmitters
- 2 x Omnidirectional Lavalier Microphones
- 48 Selectable UHF Channels
- Mic and Line-In, Plus Mute Function
- Easy-to-Read LCD Displays
- Selectable Mono and Stereo Modes
- Headphone Monitor Output on Receiver
- Powered by Two AA Batteries
- Includes Mic Clips and Foam Windscreens
Choose PayGate at checkout for MobiCred Payments.
- Dual-Channel Wireless Receiver
- 2 x Wireless Bodypack Transmitters
- 2 x Omnidirectional Lavalier Microphones
- 48 Selectable UHF Channels
- Mic and Line-In, Plus Mute Function
- Easy-to-Read LCD Displays
- Selectable Mono and Stereo Modes
- Headphone Monitor Output on Receiver
- Powered by Two AA Batteries
- Includes Mic Clips and Foam Windscreens

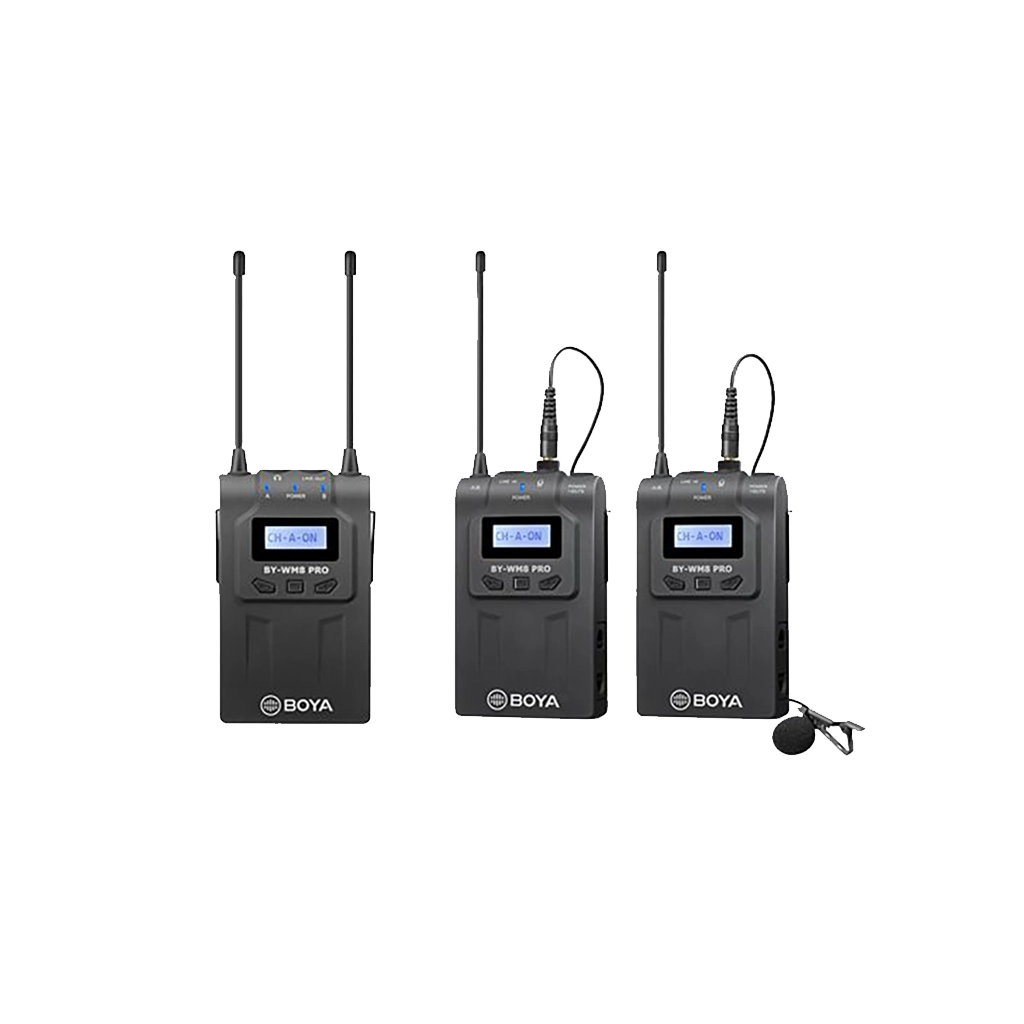

The BOYA BY-WM8 Pro-K2 Dual-Channel Wireless Lavalier System consists of two wireless bodypack transmitters along with two omnidirectional lavalier microphones and one receiver to capture high quality sound; making it ideal for broadcast and film, ENG, talk shows, conferences between two people; having both transmitters sound fed through to the receiver.
The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read and convenient LCD display, a 3.5mm headphone jack that enables real-time monitoring. The transmitter that feeds the sound through is equipped with a crystal-controlled PLL synthesizer, a 1/8 mic input, a 1/8 line-in jack, and a muting function. Between the two devices it allows a 100m working range.
Included with this powerful microphone system is a shoe-mount adapter, a single 1/8 to XLR output cable, a single 1/8 to 1/8 output cable, and a carrying case.
- Digital companding circuitry
- User-friendly menu operation with more control options
- Auto-lock function avoids accidental changing of settings
- One mic input and one line input for transmitter
- Monitoring of receiver via headphones directly
- Wide range of accessories adapts the system to most of requirements
- Dual-Channel Wireless Receiver
- 2 x Wireless Bodypack Transmitters
- 2 x Omnidirectional Lavalier Microphone
- 2x Foam Windscreens
- 2x Microphone Clips
- Shoe-Mount
- 3.5mm to XLR Output Cable
- 3.5mm to 3.5mm Output Cable
- Carrying Case
Oscillator type: | PLL Synthesized Control Oscillator |
Carrier Frequency Range: | 576.4 MHz-599.9 MHz (Transmitter: A ) 568.6 MHz-592.1 MHz (Transmitter: B ) |
Channels: | 48 |
Frequency response: | 40 Hz to 18 kHz (+/-3dB) |
Operation range: | 100m (300')(without obstacle) |
Operating temperature: | 14° F to 122° F (-10℃ to +50℃) |
Storage temperature: | 14° F to 131° F (-10℃ to +55℃) |
RF output power: | ≤10 mW |
Antenna: | 1/4λ wire antenna |
Spurious emission: | 250 nW or less |
Audio input connector: | 3.5mm mini jack |
Reference audio input level: | –60 dBV (MIC input, 0 dB attenuation) |
Reference deviation: | ±5 kHz (–60 dBV, 1 kHz input) |
Input frequency range: | 20 Hz-20 KHz |
Distortion: | 0.5% or less |
Power supply: | Two AA size batteries |
Operation time: | About 6 hours |
Dimensions: | 208(H) × 67(W) × 29(L)mm |
Weight: | 80g without batteries |
Antenna: | 1/4λ wire antenna |
Audio input connector: | 3.5mm mini jack |
Signal-to-noise ratio: | 70 dB or more |
Distortion: | 0.5% or less |
Headphone output level: | 30mW (16 Ω) |
Audio output level: | –60 dBV |
Power supply: | Two AA size batteries |
Operation time: | About 4 hours |
Dimensions: | 208(H) × 67(W) × 29(L)mm |
Weight: | 90g without batteries |
Transducer: | Back electret Condenser |
Polar pattern: | Omni-directional |
Frequency Range: | 35Hz ~ 18 KHz |
Signal / Noise: | 74dB SPL |
Sensitivity: | -30dB +/-3dB / 0dB=1V/Pa, 1 kHz |
Connector: | 3.5mm locking mini plug |
Length: | 1.2m (4’) |
