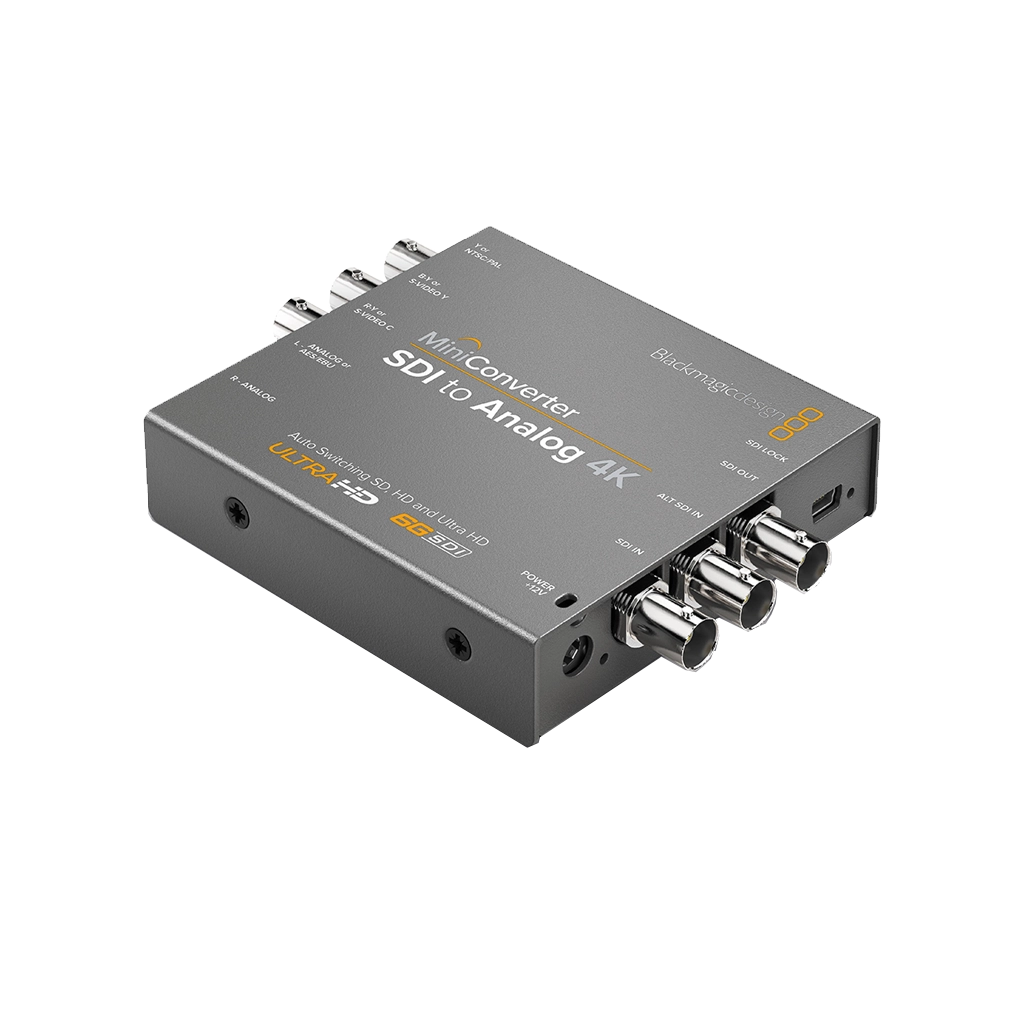

Blackmagic Mini Converter SDI to Analog 4K
Choose PayGate at checkout for MobiCred Payments.
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
Orms Bellville
Orms Cape Town
Blackmagic Mini Converter SDI to Analog 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
Choose PayGate at checkout for MobiCred Payments.
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
The Blackmagic Mini Converter Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video. Easily connect any analog equipment such as Betacam SP, VHS, and video monitors.
Features:
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
Blackmagic Design Mini Converter SDI to Analog 4K
Connections
SDI Video Input
Switchable between SD, HD and
6G-SDI.
SDI Video Output
Automatically matches the SD, HD and 6G-SDI video input.
Analog Video
NTSC, PAL, S-Video and component SD/HD from 6G-SDI input.
Analog Audio
2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
AES/EBU Digital Audio
2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Updates and Configuration
USB
Reclocking
Yes
Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424Mâ€B, SMPTE 425M, ITUâ€R BT.656 and ITUâ€R BT.601.
SDI Video Rates
SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 6G-SDI.
Analog Format Support
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD down conversion
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
8.04 Watts
Operational Voltage Range
12 - 31V DC
