Blackmagic Design Teranex Mini IP Video 12G
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
Orms Bellville
Orms Cape Town
Blackmagic Design Teranex Mini IP Video 12G
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate Signal Converter
- TICO Encoder / Decoder
- Supports up to 4K DCI 4096x2160p Signals
- Two Independent 12G-SDI 10-Bit Outputs
- Gigabit Ethernet for up to 1080p60
- Optional 10G Optical Ethernet Support
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- Manage Numerous Units from a Mac or PC

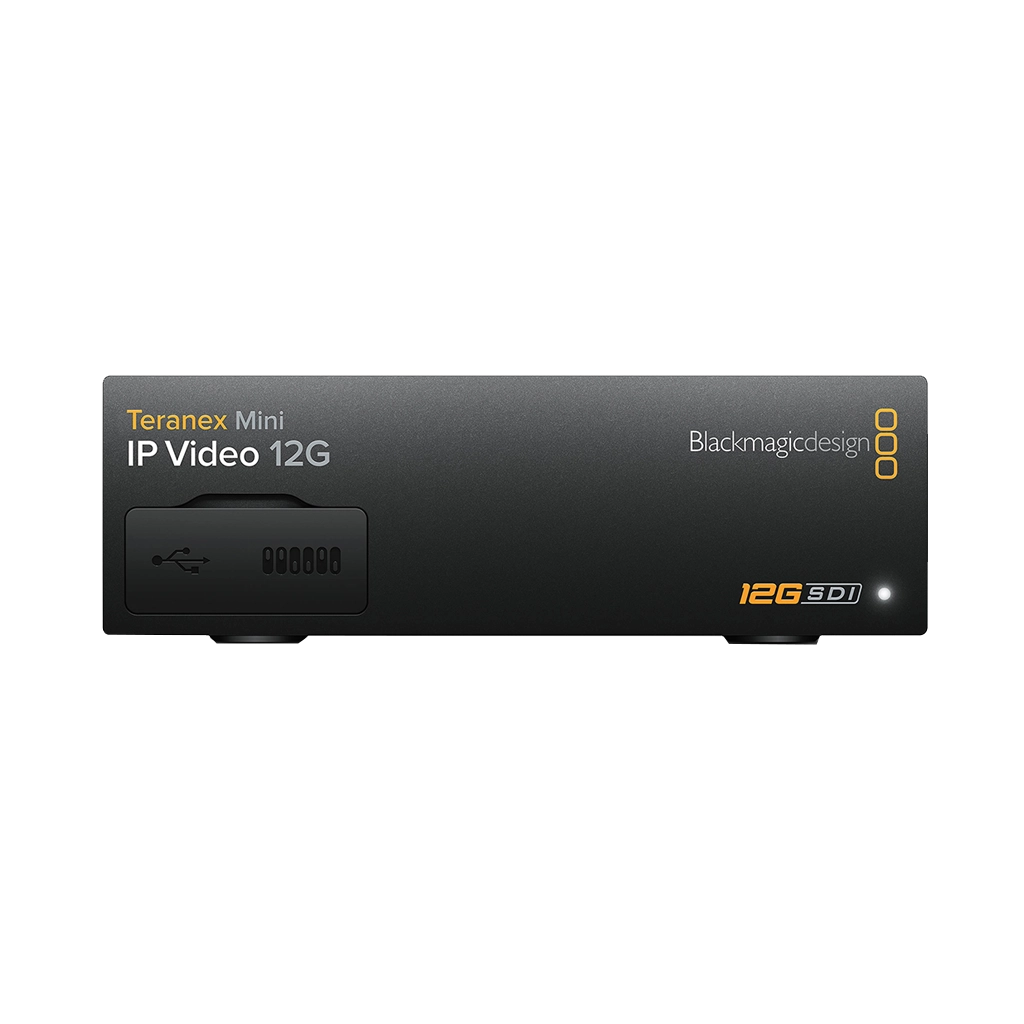

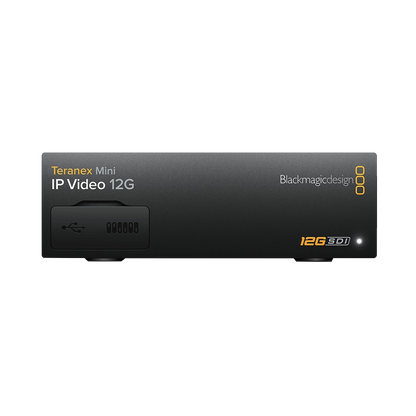

The Blackmagic Design Teranex Mini - IP Video 12G is the perfect device that allows you to convert video to IP and route it over your existing ethernet network as well as your IP video back to SDI. The Teranex Mini IP Video 12G is equipped with the standard Blackmagic Videohub software and hardware control panels that puts you in control to configure and switch IP video over ethernet, being just as easy as SDI signals. Additionally, you also get 12G-SDi and the low latency broadcast quality TICO codec so you can route your HD signals over the built-in gigabit ethernet connection.
- Requires a minimum of two units—one for encoding the signal and one for decoding the signal.
- TICO encoding is a visually lossless compression designed to let you distribute video across an IP network.
- The unit supports signals up to 1080p60 over a standard Ethernet connection. For support of signals up to 12-G SDI (4K DCI or 4K UHDF), an optional 10G fiber optic Ethernet LC connector is required.
- Blackmagic Videohub Software can be used on Windows or Mac OS computers to turn them into a router server that can manage the connections between multiple units so you can build a large custom sized router on your network.
- Supports AC voltage using an optional IEC cable (Blackmagic units do not ship with a power cable) or you can power it via PoE+ with a compatible router.
- Setup is done via built-in DIP switches, Blackmagic Teranex setup software, or an optional Teranex Mini Smart Panel with LCD screen.
- You can control your Mini 12G-IP via the optional Teranex Mini Smart Panel with LCD screen or Blackmagic Video Hub software.
- Embedded audio is supported—there are no separate audio inputs/outputs.
- Blackmagic Teranex setup and Video Hub software is included on the SD card that ships with your unit.
- Teranex Mini - IP Video 12G
- SD card with software and manual.

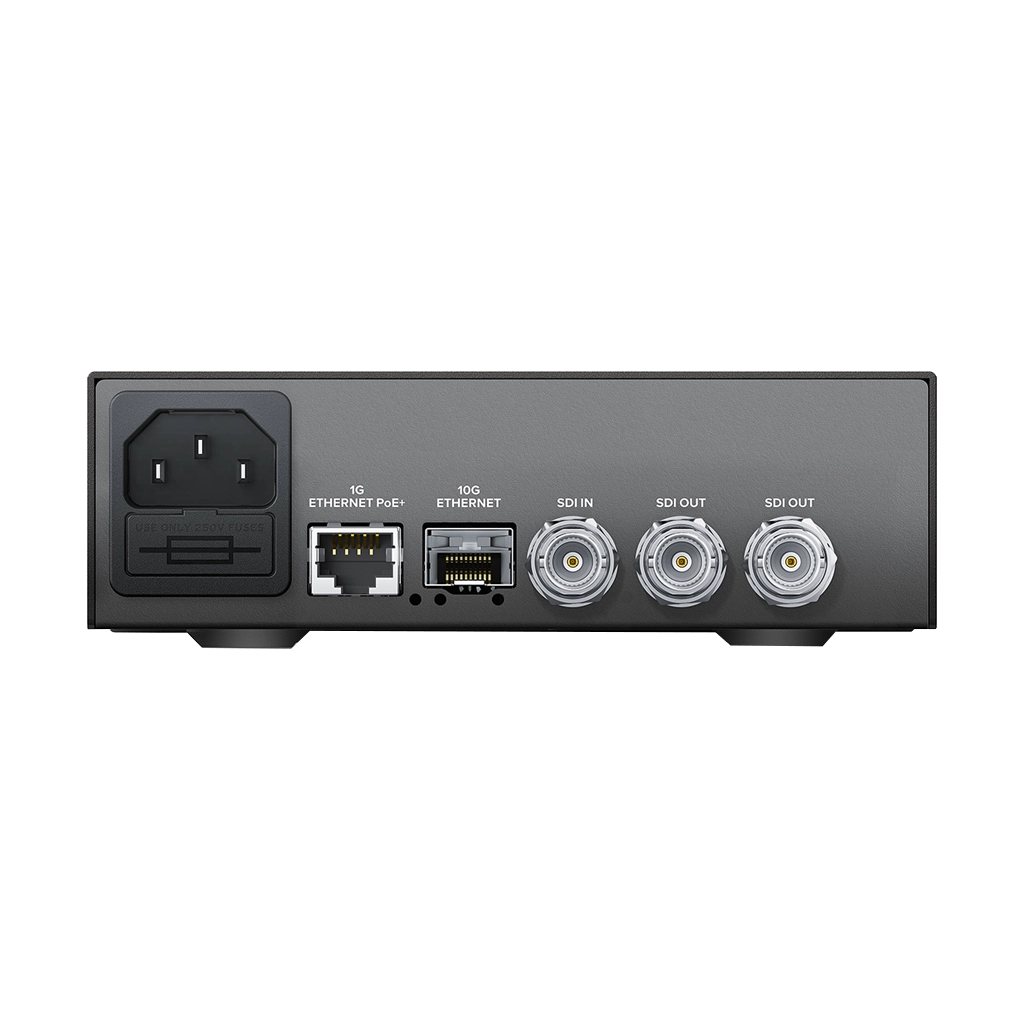

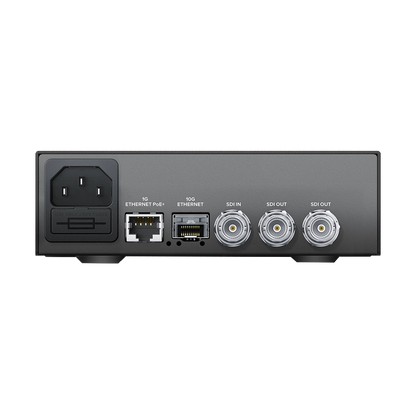

Video Inputs | 1 x BNC (12G-SDI) |
Video Outputs | 2 x BNC (12G-SDI) |
Other I/O | 1 x RJ45 Input/Output |
Expansion Slots | 1 x SFP Slot |
Input Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Video Format | SDI (10-Bit 4:4:4/4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Embedded Audio | SDI/LAN (RJ45) |
Video Standard Compliance | SMPTE 259M/292M/296M/310M/425M ITU -R BT.601/BT.656 |
Video IP Encoding | TICO: 4096 x 2160 |
Video IP Decoding | TICO: 4096 x 2160 |
Media Card Reader | 1 x SD (Unspecified Type) |
Wi-Fi | Yes |
OS Compatibility | macOS Windows |
Power I/O | 1 x RJ45 (48 VDC) Input 1 x IEC C14 Input |
Power Consumption | Device: 90 to 240 VAC (16 W) |
Operating Temperature | 0 to 40°C |
Storage Temperature | -28 to 60°C |
Operating Humidity | 0 to 90% |
Dimensions | 16.99 x 14 x 4.45 cm |
Weight | 581 g |
