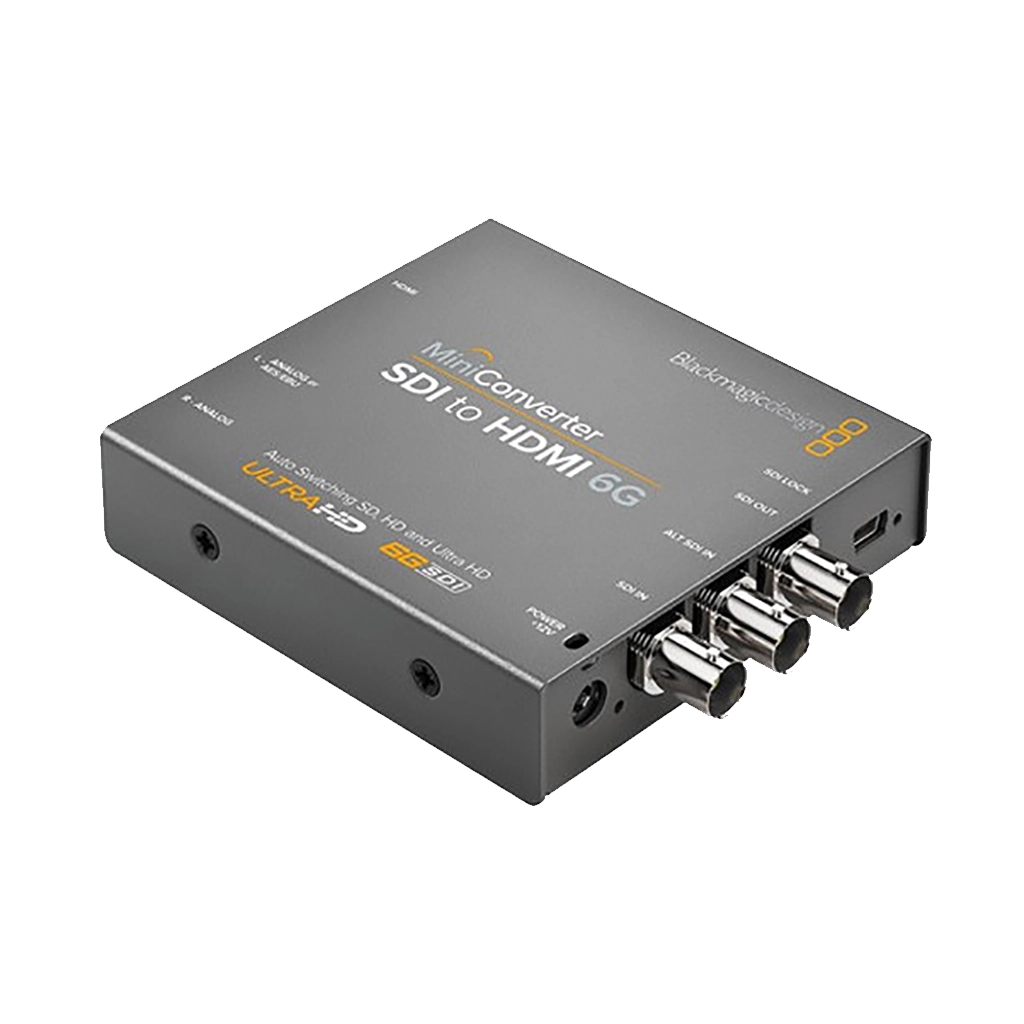

Blackmagic Design SDI to HDMI 6G Mini Converter
Choose PayGate at checkout for MobiCred Payments.
- 2 x 4K SDI Input
- 1 x HDMI Type A and 1 x SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
Orms Bellville
Orms Cape Town
Blackmagic Design SDI to HDMI 6G Mini Converter
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 2 x 4K SDI Input
- 1 x HDMI Type A and 1 x SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
Choose PayGate at checkout for MobiCred Payments.
- 2 x 4K SDI Input
- 1 x HDMI Type A and 1 x SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI
- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
The BlackMagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This unit is useful for connecting devices that require HDMI signals with professional SDI video equipment. Useful for broadcast, post production, professional AV applications, and many more.
- The BlackMagic Design SDI to HDMI 6G Mini Converter's settings controlled using built-in switchers, or the USB using the control software for Max OS X or Windows.
- The USB port can be used for firmware to be updated.
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
- Down-conversion for monitoring Ultra HD on HD monitors
- Built-in 3D LUTs
- HDMI instant lock for instant video display when an SDI input is connected
BlackMagic Design SDI to HDMI 6G Mini Converter
Video Input | 2 x 6G-SDI |
Video Output | 1 x HDMI type A 1 x 6G-SDI |
Multi-Rate Support | Auto detection of SD, HD, or 4K signals |
Reclocking | Yes |
Audio Output | Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack |
Format Support | DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
SDI Compliance | SMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081 |
SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI. |
SDI Video Sampling | 4:2:2 4:4:4 |
SDI Color Precision | 4:2:2 4:4:4 |
SDI Color Space | YUV RGB |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
HDMI Format Support | UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50 |
HDMI Color Space | YUV and RGB |
HDMI Color Precision | 4:2:2 4:4:4 |
Format Conversion | HD down-conversion |
Settings Control | Mini switches or USB software |
Firmware Upgradeable | Via USB |
Power Supply | 12 VDC |
Power Consumption | 5.2 W |
Operational Voltage Range | 12 to 31 VDC |
Operating Temperature | 0 to 40 °C |
Storage Temperature | -20 to 45 °C |
Relative Humidity | 0 to 90% non-condensing |
Dimensions | 11.40 x 9.22 x 2.29 cm |
Weight | 256.85 g |
