Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)
Choose PayGate at checkout for MobiCred Payments.
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- Leica L Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Orms Bellville
Orms Cape Town
Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- Leica L Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports
Choose PayGate at checkout for MobiCred Payments.
- Full Frame 6K Sensor
- Up to 6K36 fps Open Gate / 6K Anamorphic
- 13-Stop Dynamic Range, Dual-Native ISO
- Leica L Lens Mount
- 4" HDR LCD Touchscreen
- Records Blackmagic RAW and H.264 Proxies
- Built-In Streaming via Ethernet or 4G/5G
- Switchable Side Plates, Mounting Threads
- Two CFexpress Card Slots, USB-C Port
- Ethernet and 12G-SDI Ports

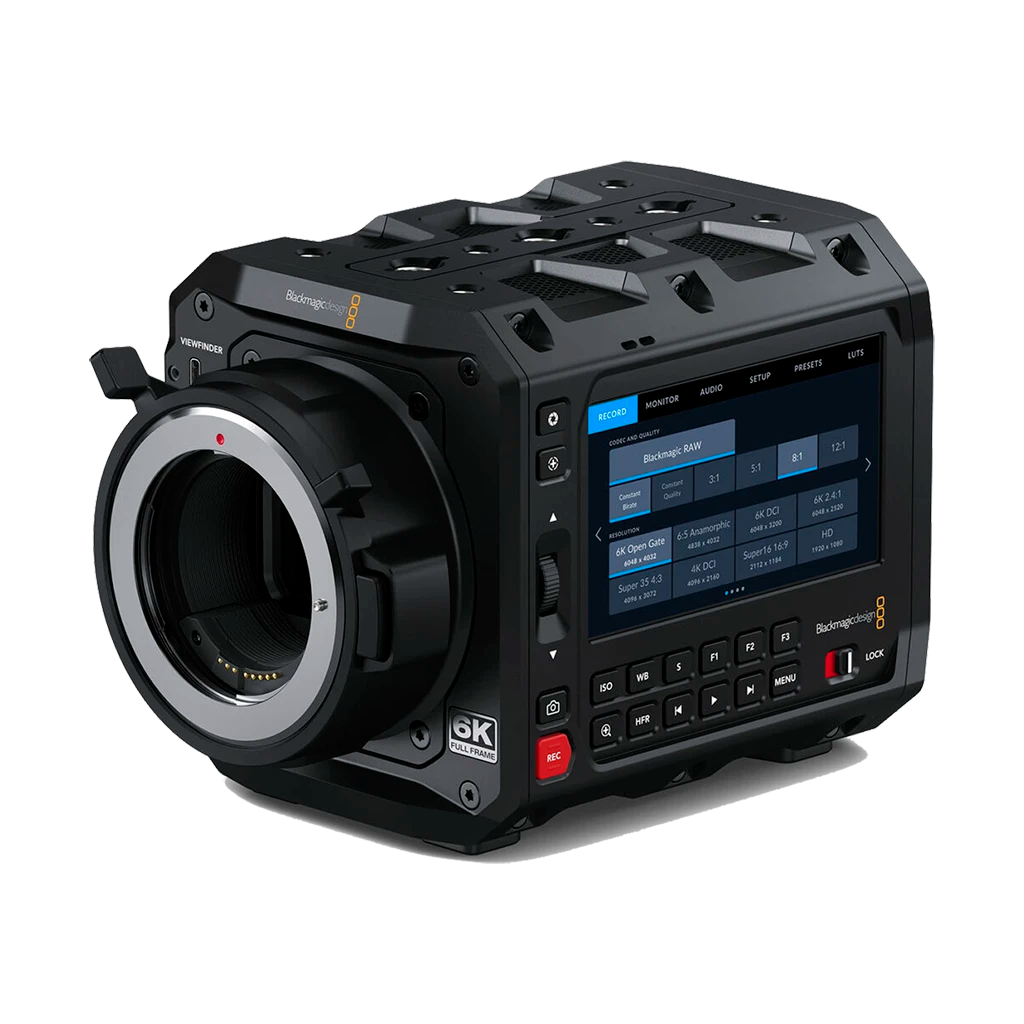

The Blackmagic Design PYXIS 6K Cinema Box Camera is the world's most riggable full-frame digital film camera, offering the film industry a high-end film L-Mount camera. The camera is capable of producing precise skin tones and rich organic colours.
With a versatile design, you will be able to build the perfect camera rig for your production, and it offers a full-frame 36x24mm 6K sensor with wide dynamic range with a built-in optical low pass filter that's been designed to perfectly match the sensor, 12-bit Blackmagic RAW recording and extremely small H.264 proxies files at the same time.
Designed for Maximum Customizability
With multiple mounting points and accessory side plates, makes it to configure the Blackmagic Design PYXIS 6K into the camera you need it to be. The body is made from precision CNC machined aerospace aluminium, which means it features a lightweight yet very strong. With an impressive design, you can easily mount it on a range of camera rigs such as gimbals, cranes or drones. In addition to the multiple 1/4" and 3/8" thread mounts on the top and bottom of the body, it also has a range of side plates that further extend your ability to mount accessories such as microphones, handles, or even SSDs.
Get the "Hollywood Look" with Digital Film
With the professional features that the Design PYXIS 6K Cinema Box Camera has to offer the film, television and documentary industry, the quality can be used to produce cinematic content for social media, YouTube videos and more. The same feature can be found in high end digital film cameras, allowing capturing of deep colours, higher image detail and a wider dynamic range between the brightest highlights and deepest shadows.
Large Format Cinematic Digital Film Sensor
Built-in to the Design PYXIS 6K Cinema Box Camera is a massive full-frame sensor with a native resolution of 6048x4032, which is three times large than a super 35mm sensor and allows you to shoot with shallow depth of field or to use anamorphic lenses uncropped for a true cinematic look. Regardless of shooting in bright conditions or in almost no light at all, the 13-stops of dynamic range with dual native ISO up to 25 600 provide stunning low noise images in all lighting conditions. Additionally, you can shoot up to 36fps at full sensor resolution or 120fps windowed. The amazing sensor combined with Blackmagic colour science means you will get the same imaging technology as expensive as digital cinema cameras.
Full-Frame Flexibility
You can work in a variety formats and aspect ratios without sacrificing quality. Using the full area of the sensor gives users a unique open gate 3.2 image which also lets you reframe your shots in post production. The large sensor also allow you to work in true 6:5 anamorphic without the need to crop, making widescreen cinematic images more detailed and in higher resolution than previously possible. You can use the classic Super 35 sized window on the sensor to create an instant close up version of your shot that fits seamlessly with open gate footage.
Shoot Incredible High Dynamic Range (HDR) Images
Dynamic range is measured on the distance between the lightest and the darkest parts of an image in stops. The Blackmagic Design PYXIS 6K Cinema Box Camera has an incredible 13 stops of dynamic range which means it preserves more detail in the lightest and darkest areas of an image than simple video cameras can. This enables you to set exposure for an indoor scene such as a cage and still retain the details of bright outdoor light coming through a window. It also provides more colours than the standard DCI-P3 colorspace used for feature films.
Dual Gain ISO for Exceptional Low Light Performance
ISO is a measurement of the image sensor's sensitivity to light. This means the higher the ISO number the more sensitivity to light so it's possible to shoot using natural light even at night. The camera features dual native ISO up to 25 600, which means it's optimised to minimise grain or noise in images, while maintaining the full dynamic range of the sensor. A native ISO of 400 is ideal for scenes with on-set lighting. The secondary high base ISO of 3200 is ideal when shooting in dimly lit conditions. The gain is set automatically as you adjust the ISO setting, making it easy to capture stunning images when you don't have the time to up lights.
Multiple Resolutions and Frame Rates
A variety of resolutions and frame rates are on offer to users. It can shoot in all standard resolutions and frame rates from HD up to DCI 4K and even 6K. You can also shoot stills at 24.6MP, and shoot up to 36fps at 6048x4032 3:2 open gate or 60fps at 6048x2520 2.4:1 and 60fps at 4096x2160 4K DCI. To achieve higher frame rates, you can window the sensor and shoot up to 100 fps at 2112x1184 Super 16.
Large 4" LCD Monitor
The design incorporates a large 4" HDR touchscreen that is perfect for monitoring and reviewing shots on set. It's full HD resolution means you can frame and focus your shots without needing to carry around a bulky external monitor. It has 1500 nits of brightness so you can always see your shot or change settings, even in bright conditions.
All Controls at your Fingertips
All controls are right at your fingertips, as it features a logical design that puts important functions such as ISO, WB and shutter, with both touchscreen and physical controls. There's even a scroll wheel for making quick adjustments to settings.
Side Plates for Flexible Mounting Options
The side plates expand the riggability of your camera even further. The standard plate included is made from the same aircraft grade aluminium as the camera body and also features two 1/4" threaded mounts and one 3/8" thread mount, allowing users to add brackets, microphones or other accessories.
Blackmagic RAW
Blackmagic RAW is a revolutionary new format designed to capture and preserve the quality of the sensor data from your camera. This format eliminates quality problems so you can achieve the highest image quality with incredible detail and colour throughout the production pipeline from camera to edit, colour and mastering. It also saves all your camera settings as metadata so you can set ISO, white balance and exposure in camera or override them later while editing, all without any loss of quality.
- Blackmagic Design PYXIS 6K Cinema Box Camera (Leica L)
- Lens turret dust cap
- PYXIS Standard Plate
- PYXIS SSD Plate
- 60W power supply with locking connector and international adapters
- Welcome booklet
- DaVinci Resolve Studio activation key
CAMERA FEATURES
Effective Sensor Size |
36mm x 24mm (Full Frame) |
Lens Mount |
Active L-Mount. |
Lens Control |
Iris and focus on supported lenses. |
Dynamic Range |
13 Stops. |
Dual Native ISO |
400 and 3200 |
Shooting Resolutions |
6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps |
Frame Rates |
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. |
Focus |
Auto focus available using compatible lenses. |
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. |
Screen Dimensions |
4” 1920 x 1080. |
Screen Brightness |
1500 nits |
Screen Type |
LCD capacitive touchscreen. |
Metadata Support |
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
Controls |
Touchscreen menus on 4 inch screen. 1 x Power Switch, 1 x Record Button, 1 x Stills Button, 1 x Scroll Wheel with push, 1 x ISO Button, 1 x White Balance, 1 x Shutter Button, 3 x software configurable Fn buttons, 1 x Focus Button, 1 x IRIS Button, 1 x High Frame Rate (HFR) Button, 1 x Zoom Button, 1 x Menu Button, 1 x Playback Button, 1 x Next Clip Button, 1 x Previous Clip Button, 1 x Lock Switch. |
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
CONNECTIONS
Total Video Inputs |
None |
Total Video Outputs |
1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, |
Analog Audio Inputs |
1 x mini XLR analog audio in, switchable between 1 x 3.5mm Stereo Input. |
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
Computer Interface |
USB Type-C for external drive recording, PTP camera control and software updates. |
Ethernet |
1 x 1Gb/s RJ‑45 connector supporting10/100/1000 BASE-T. |
AUDIO
Microphone |
Integrated stereo microphone. |
Built in Speaker |
1 x mono speaker. |
MEDIA
Media |
2 x CFexpress Type B card slot, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and H.264 Proxy Recording. |
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
SUPPORTED CODECS
Codecs |
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5, H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
CONTROL
External Control |
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet for external control via HTTP when used with REST client applications such as Postman. |
STORAGE FEATURES
Storage Type |
1 x CFexpress Type B 1 x high speed USB-C expansion port for external media. |
Recording Formats |
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies. |
Storage Rates |
Storage rates based on 30 frames per second. 6048 x 4032 (6K Open Gate 3:2) Blackmagic RAW 3:1 - 370 MB/s 4832 x 4032 (Anamorphic 6:5) Blackmagic RAW 3:1 - 297 MB/s 6048 x 3200 (6K DCI 17:9) Blackmagic RAW 3:1 - 295 MB/s 6048 x 2520 (6K 2.4:1) Blackmagic RAW 3:1 - 233 MB/s 4096 x 3072 (Super 35 4:3) Blackmagic RAW 3:1 - 192 MB/s 4096 x 2160 (4K DCI 17:9) Blackmagic RAW 3:1 - 136 MB/s 2112 x 1184 (Super 16 16:9) Blackmagic RAW 3:1 - 40 MB/s 1920 x 1080 Blackmagic RAW 3:1 - 33 MB/s |
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature |
0°to 40°C (32° to 104°F) |
Storage Temperature |
-20°to 45°C (-4° to 113°F) |
Relative Humidity |
0% to 90% non-condensing |
