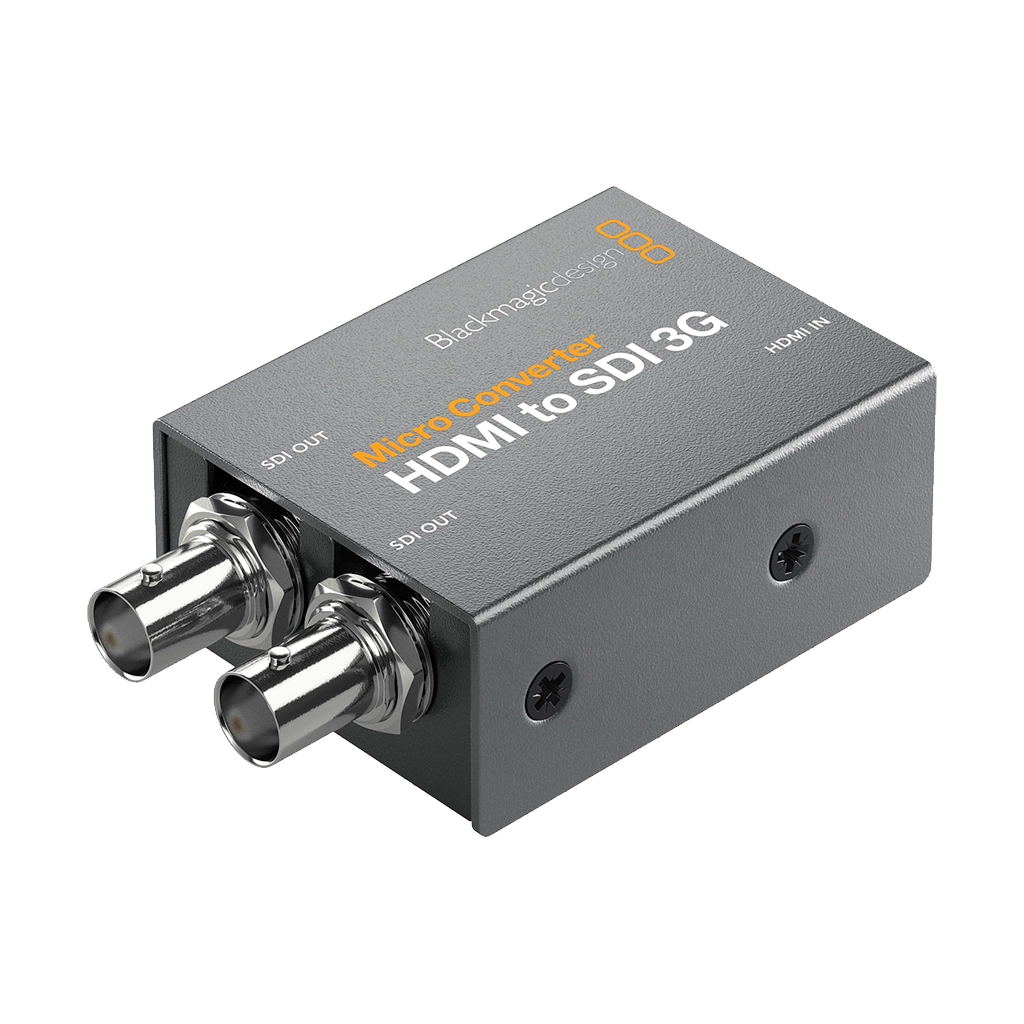

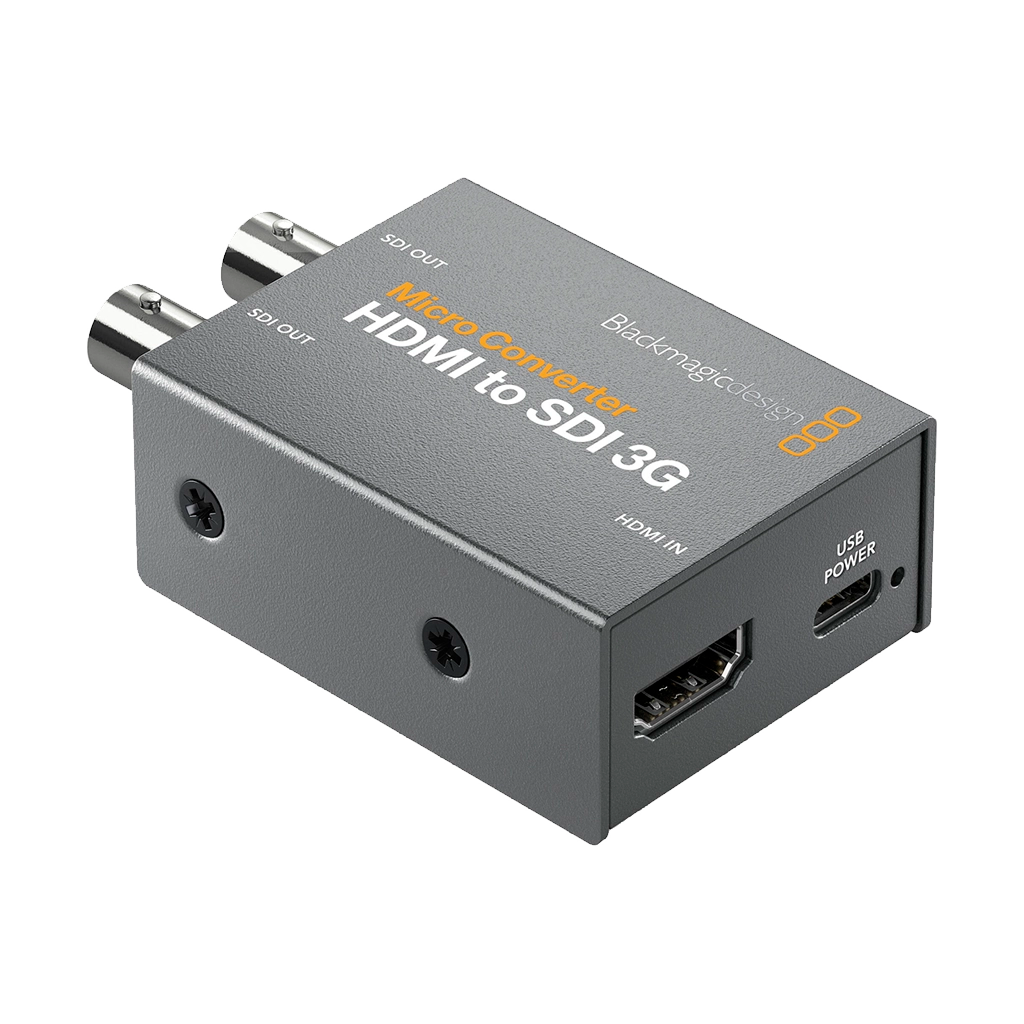

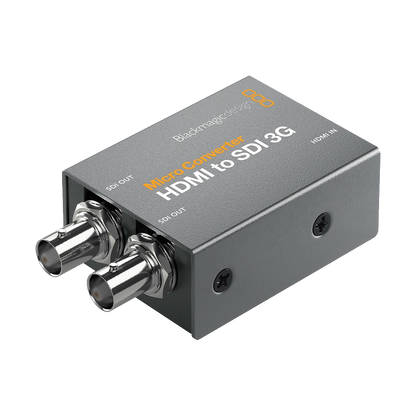

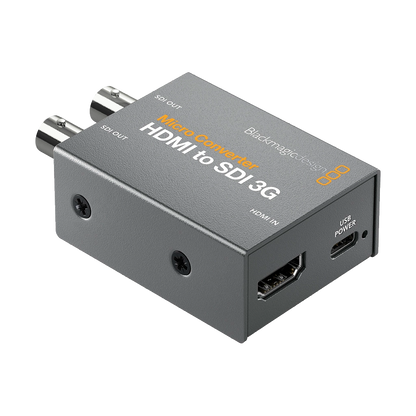

Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to 1080p60 Resolution I/O
- USB Power/SDI Re-Clocking/Timecode
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio
- LED Video & Power Signal Indicators
- AC Power Supply & Socket Adapters
Orms Bellville
Orms Cape Town
Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to 1080p60 Resolution I/O
- USB Power/SDI Re-Clocking/Timecode
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio
- LED Video & Power Signal Indicators
- AC Power Supply & Socket Adapters
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to 1080p60 Resolution I/O
- USB Power/SDI Re-Clocking/Timecode
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio
- LED Video & Power Signal Indicators
- AC Power Supply & Socket Adapters
The BlackMagic Design Micro Converter HDMI to SDI 3G makes it possible for the user to link HDMI cameras or computers to pro-style SDI (BNC) monitors or computers, using SDI you can also use multiple units to extend HDMI. This compact and light unit auto detects and each HDMI input to SDI output and is compatible within and output resolutions of up to 1080p60.
The BlackMagic Design Micro Converter HDMI to SDI 3G features support for a wide range of broadcast resolutions including cine-style 48 fps, HDMI timecode support, SDI re-clocking for stability on long cable runs.
Dual SDI Outputs
- One HDMI input
- Two 3G-SDI outputs
- Selectable A and B level formats
Compact Rugged Design
The BlackMagic Design Micro Converter HDMI to SDI 3G features a robust metal housing as well connectors.
Updatable via USB-C port and an Mac or PC>
SDI & HDMI Timecode
- HD and SD timecode support
- Converts HDMI timecode to SDI
SDI Re-Clocking
An stable output over longer cable runs is possible with built-in re-clocking on 3G-SDI output.
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI 2Kp60
- HDMI support from NTSC and PAL up to 1080p60
Embedded Audio
Embedded HDMI input and embedded SDI output is supported.
Versatile Power Options
The BlackMagic Design Micro Converter HDMI to SDI 3G can be powered either from the included 100-240 AC power supply or the USB-C port using a monitor, laptop or other component.
- BlackMagic Design Micro Converter HDMI to SDI 3G
- 100-240 VAC Power Supply
- 4 x Socket Adapter
Video Inputs | 1 x HDMI (HDMI 2.0) |
Audio Inputs | None |
Video Outputs | 2 x BNC (3G-SDI) |
Audio Outputs | None |
Other I/O | 1 x USB-C Input |
Expansion Slots | None |
Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
Embedded Audio | HDMI/SDI |
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M |
HDCP Support | Version 2.2 |
Wi-Fi | None |
OS Compatibility | macOS 10.14.15 or Later Windows 10 |
Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
Power Consumption | 2 W |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% |
Dimensions | 76.45 x 45.7 x 24.89 mm |
Weight | 150 g |
