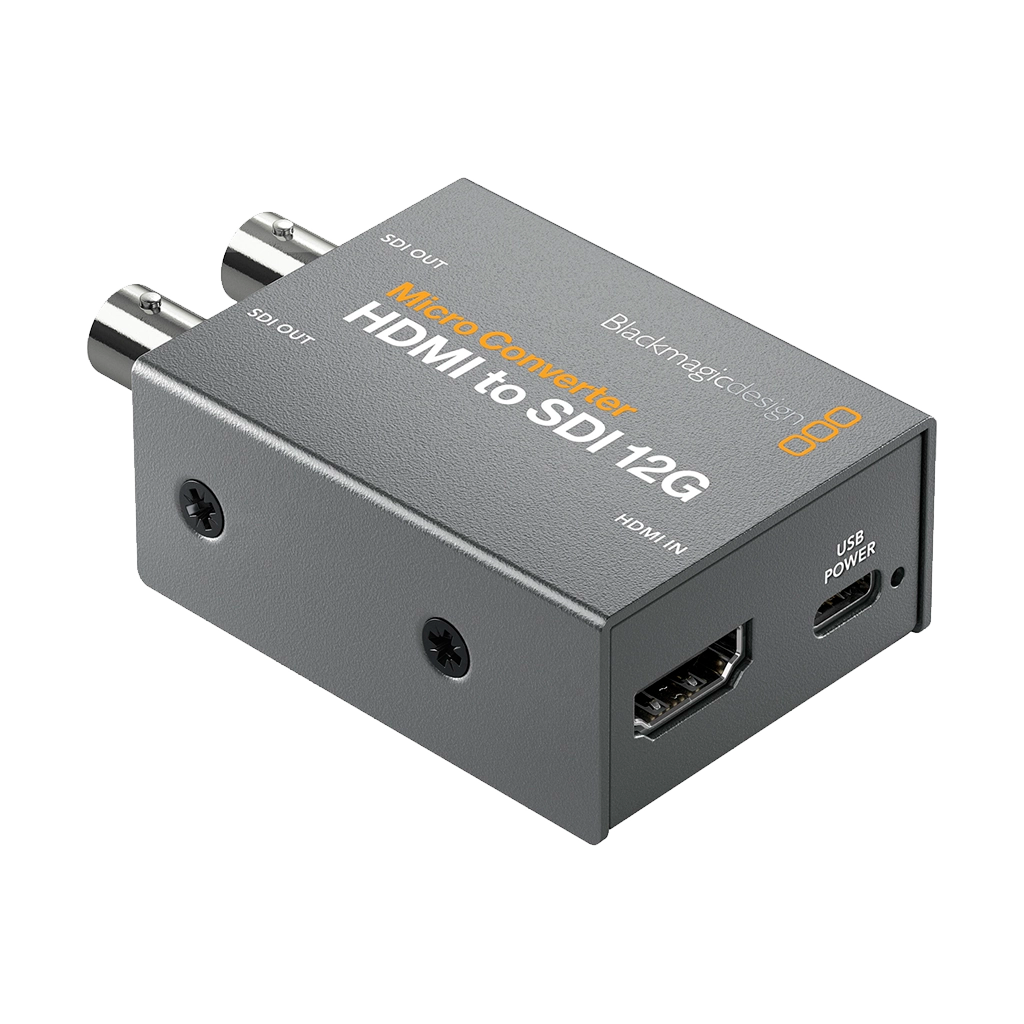

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- Includes 5V Power Supply
- LED Video & Power Signal Indicators
Orms Bellville
Orms Cape Town
Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- Includes 5V Power Supply
- LED Video & Power Signal Indicators
Choose PayGate at checkout for MobiCred Payments.
- 1 x HDMI Input, 2 x 12G-SDI Outputs
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- SDI Re-Clocking, HDMI Copy Protection
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- Includes 5V Power Supply
- LED Video & Power Signal Indicators
The Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply is designed to enable you to link HDMI cameras or computers to pro-style SDI(BNC) monitors or components. With this unit, you are also able to extend HDMI signals over longer distances using SDI cables. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The small format Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply also features timecode support, SDI re-clicking for enhanced stability over longer cable runs, HDMI copy protection, as well as support to a wide variety of pro broadcast resolutions including cine-style 48 fps.
It enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer.
I/O
Featuring one HDMI input, two 12-SDI output with selectable A and B level formats.
Compact, Rugged Design
The Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply features a robust metal housing with rugged connectors.
SDI and HDMI Timecode
Supporting HD and SD timecode as well as converting HDMI timecode to SDI.
SDI Re-Clocking
Featuring built-in 12-SDI re-clocking for stability over long cable runs, and compatible with SMPTE 259M/292M/296M/424M/425M level A and B.
Wider Resolution Support
The Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply supports SDI signals from NTSC and PAL up to DCI/UHD 4K60, as well HDMI support for NTSC and PAL up to DCI/UHD 4K60.
Embedded Audio
Supports embedded HDMI and SDI input and output
LED Indicators
LED indicators can be found on the unit for video and power signals.
Versatile Power Options
The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers.
Included power supply.
Operating System Support
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
Blackmagic Design Micro Converter HDMI to SDI 12G
- 5V Power Supply
Input
Video Input Connectors | 1 x HDMI (HDMI 2.0) Female |
Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
Audio Input Connectors | None |
Embedded Audio Input | HDMI |
Output
Video Output Connectors | 2 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
Audio Output Connectors | None |
Embedded Audio Output | SDI |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
HDCP Support | Version 2.2 |
Connectivity
Other I/O | 1 x USB Type-C Control, Service Input |
Expansion Slots | None |
Hardware
OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
Power
Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
Power Consumption | Device: 4 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 76.45 x 45.7 x 24.89 mm |
Weight | 150 g |
