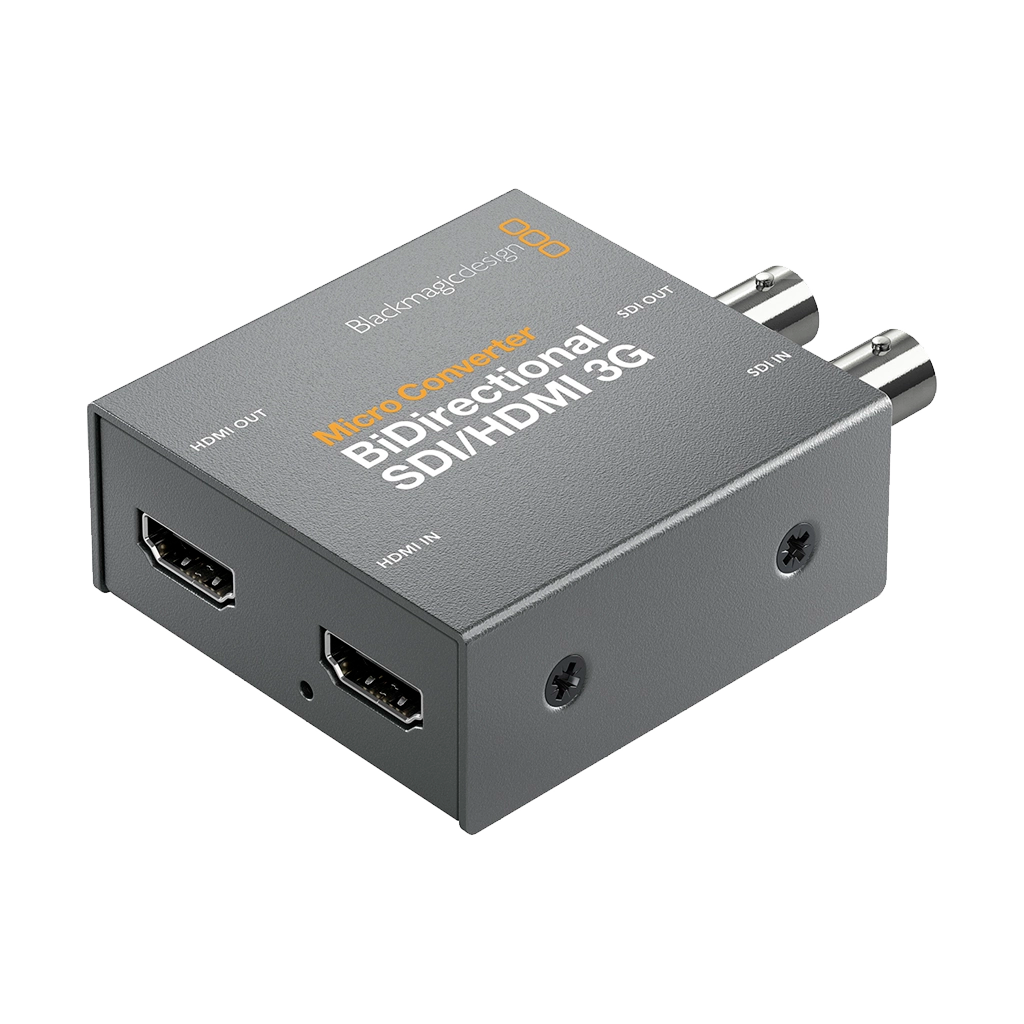

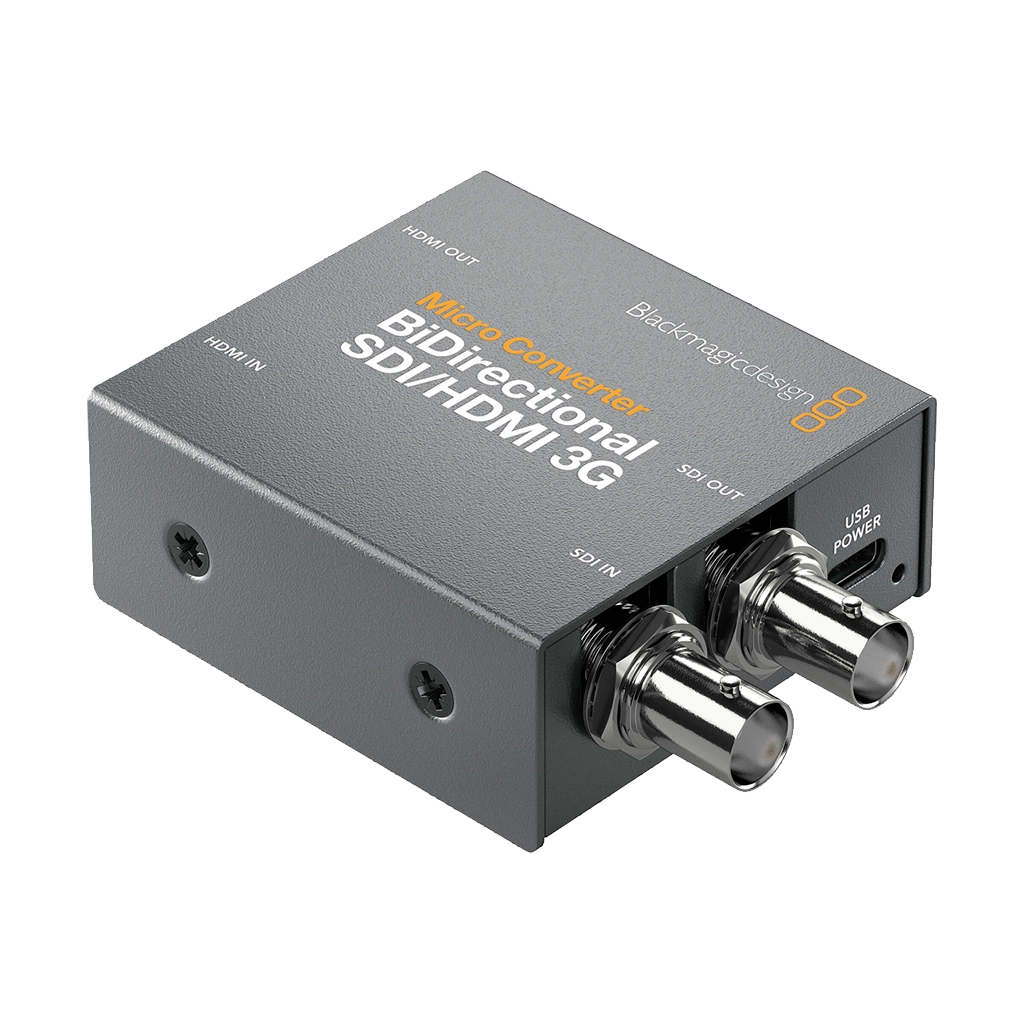

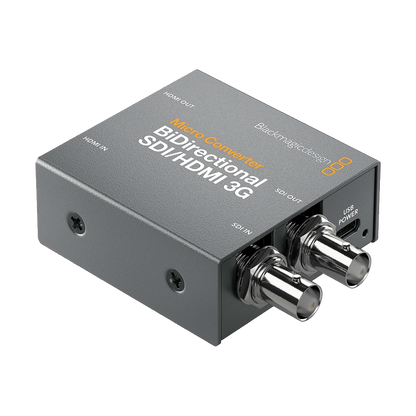

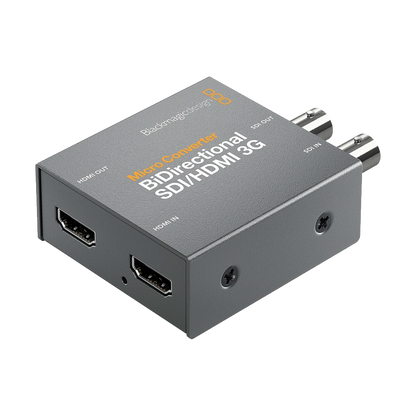

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
- Supports up to DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI Timecode
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video &Power Signal Indicators
- AC Power Supply & Socket Adapters
Orms Bellville
Orms Cape Town
Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
- Supports up to DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI Timecode
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video &Power Signal Indicators
- AC Power Supply & Socket Adapters
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
- Supports up to DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI Timecode
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video &Power Signal Indicators
- AC Power Supply & Socket Adapters
The BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G enables you to easily combine SDI and HDMI components in your video setup. Even when using in different standards, this bidirectional converter can simultaneously convert SDI to HDMI and vice versa. Also supporting resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for BlackMagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher.
The BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking, support for a wide range of pro-broadcast resolutions including Cine-style 48 fps as well as both HDMI and SDI embedded audio input and output.
Rugger and Compact Design
Light and robust metal housing with rugged connectors. The unit is also updatable via the USB Type-C port and your Mac or PC.
HDMI Camera Control
The BlackmMagic Design Micro Converter BiDirectional SDI/HDMI 3G offers camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher
SDI & HDMI Timecode
- HD and SD timecode support
- Converts HDMI timecode to SDI and vice versa
SDI Re-Clocking
- Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI 2Kp60
- HDMI support from NTSC and PAL up to 1080p60
Embedded Audio
Supports embedded SDI and HDMI input and output
Versatile Power Options
To power the BlackMagic Design Micro Converter BiDirectional SDI/HDMI 3G the included 100-240 VAC power supply can be used, or the it can be powered from a monitor, laptop, or other component using the USB-C port.
- Blackmagic Design Micro Converter BiDirectional SDI/HDMI 3G
- 100-240 VAC Power Supply
- 4 x Socket Adapter
Input
Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
Audio Input Connectors | None |
Embedded Audio Input | HDMI SDI |
Output
Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
Audio Output Connectors | None |
Embedded Audio Output | HDMI SDI |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
HDCP Support | Version 2.2 |
Connectivity
Other I/O | 1 x USB Type-C Input |
Expansion Slots | None |
Hardware
Tally Light | Yes |
OS Compatibility | macOS 10.14.15 or Later Windows 10 |
Power
Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
Power Consumption | 2.5 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0-90% |
General
Dimensions | 80.77 x 58.93 x 24.89 mm |
Weight | 174 g |
