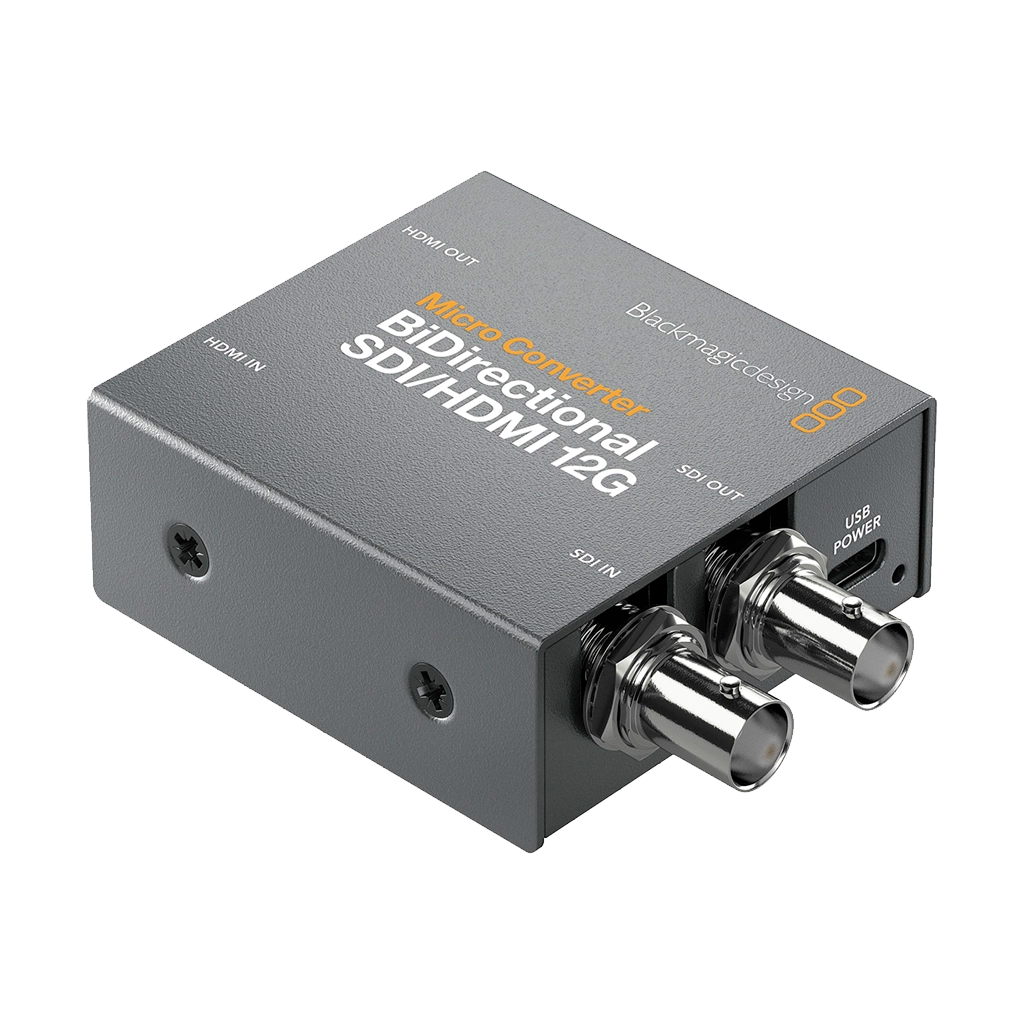

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
- A Power Supply Is Included
Orms Bellville
Orms Cape Town
Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
- A Power Supply Is Included
Choose PayGate at checkout for MobiCred Payments.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video & Power Signal Indicators
- A Power Supply Is Included
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply is designed to enable you to combine SDI as well as HDMI components in your workflow and simultaneously convert SDI to HDMI and vice versa.
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G is capable of supporting resolution up to DCI 2K in SDI and 1080p60 in HDMI. Also offers camera control conversion for Blackmagic HDMI cameras like the Black Magic Design Pocket Cinema Camera 4K 6K, enabling you to use them with an SDI-based live switcher.
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, supporting a wide range of pro resolutions, and both HDMI and SDI embedded audio status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors.
Compact, Rugged Design
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply features a robust metal housing with rugged connectors.
HDMI Camera Control
Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables user with an SDI-based live switcher
SDI and HDMI Timecode
HD, as well as SD timecode, is supported and able to convert DHMI timecode to SDI and vice versa.
SDI Re-Clocking
Featuring built-in SDI re-clocking for stability over long cable runs, and compatible with SMPTE 259M/292M/296M/424M/425M level A and B.
Wide Resolution Support
The Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply supports SDI signals from NTSC and PAL up to DCI/UHD 4K60, as well HDMI support for NTSC and PAL up to DCI/UHD 4K60.
Embedded Audio
Supports embedded SDI and HDMI input and output
LED Indicator
LED indicators can be found on the unit for video and power signals.
Versatile Power Options
A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors.
A Power supply is also included.
- Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
- Power Adapter
Input
Video-Input Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
Audio Input Connectors | None |
Embedded Audio Input | HDMI SDI |
Output
Video Output Connectors | 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female |
Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
Audio Output Connectors | None |
Embedded Audio Output | HDMI SDI |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
HDCP Support | Version 2.2 |
Connectivity
Other I/O | 1 x USB Type-C Firmware Input (Shared Power) |
Expansion Slots | None |
Hardware
Tally Light | Yes |
OS Compatibility | macOS 10.15.15 or Later Windows 11.1 or Later |
Power
Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
Power Consumption | Device: 5 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 80.77 x 58.93 x 24.89 mm |
Weight | 174 g |
