BlackMagic Design HyperDeck Studio HD Plus
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
- 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/2 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Orms Bellville
Orms Cape Town
BlackMagic Design HyperDeck Studio HD Plus
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
- 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/2 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
- 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/2 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
The BlackMagic Design HyperDeck Studio HD Plus is the perfect compact broadcast quality record/playback deck to be taken on location or in studio. Featuring one 6G-SDI and one HDMI 2.0 input as well as two 6G-SDI and one HDMI 2.0 output.
The BlackMagic Design HyperDeck Studio HD Plus is a compact playout/recording powerhouse. This device easily fits into a broadcast environment with timecode in and out, reference, a loop-through output, and 3G-SDI monitor output.
UHD 4K Recording and Playback
The BlackMagic Design HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60.
Video Inputs
6G-SDI, and HDMI 2.0 inputs.
Video Outputs
Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices.
HDR
The BlackMagic Design HyperDeck Studio HD Plus supports HDR video 33-point LUTS on the 3G-SDI output.
Supported Codes
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
VTR-Style Controls
The BlackMagic Design HyperDeck Studio HD Plus features VTR-style front panel controls, enabling you to control recording, playback as well as a built-in jog/shuttle wheel providing analog style control over playback. Broadcast-style deck control front-panel buttons to a dedicated RS-422 output.
Built-In LCD Monitor
The unit features an LCD screen on the front panel that enables the user to monitor input or playback video.
Audio Output
The BlackMagic Design HyperDeck Studio HD Plus features a built-in speaker as well as a 1/4" headphone jack.
Included Software
The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup.
BlackMagic Design HyperDeck Studio HD Plus

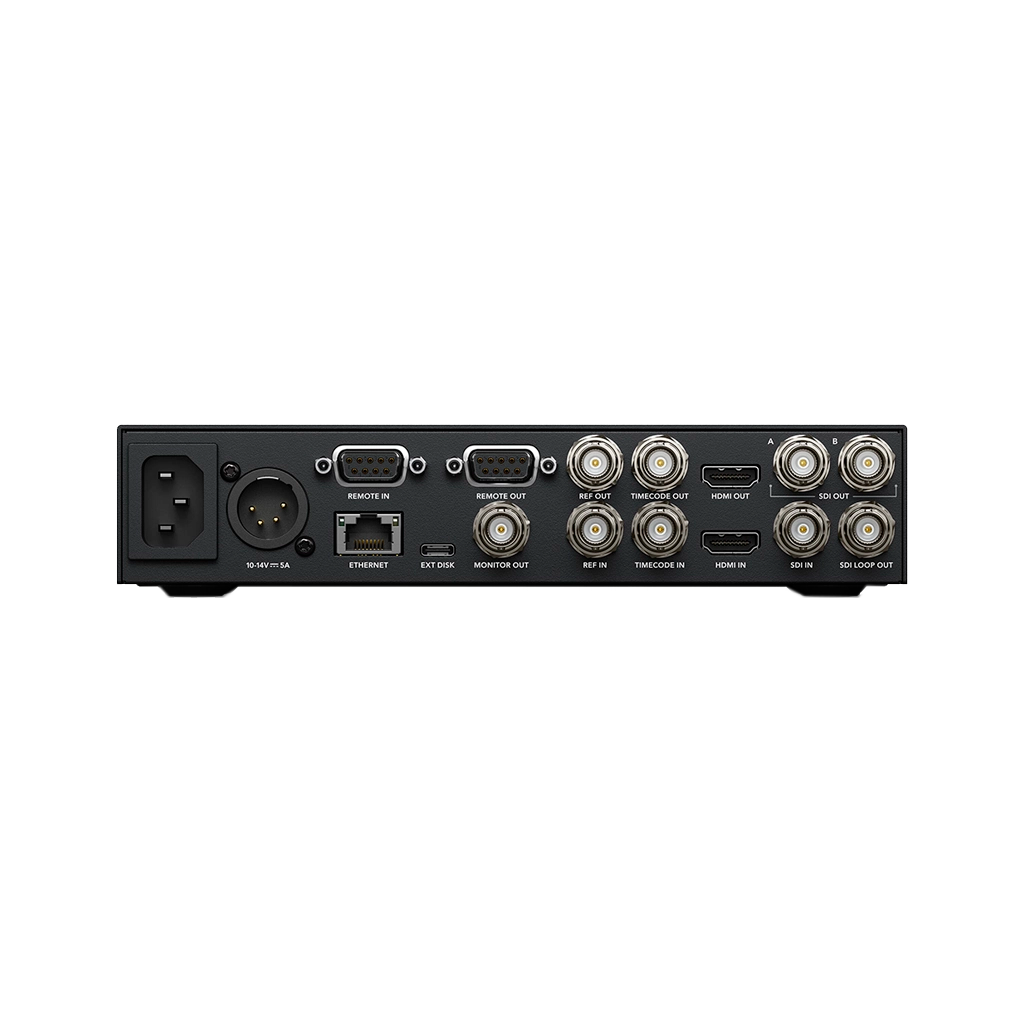

Connectivity
Video Input | 1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A |
Video Output | 1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out) |
Timecode | In: 1 x BNC Out: 1 x BNC |
Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
Audio Input | None (Embedded Audio Only, 16 Channels) |
Audio Output | Headphone: 1 x 1/4" Phone |
Device Control | 2 x RS-422 Deck Control Port on DB9 Female |
Ethernet | 1 x RJ45 for Remote Operation |
Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
Standards
Supported Resolutions | 4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 0/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
Video Sampling | 4:2:2 YUV |
Color Depth | 10-Bit |
Color Space | Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out |
HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Multi Rate Support | Autodetection of SD, HD, and 6G-SDI |
Audio Sampling | Television Standard 48 kHz, 24-Bit |
Supported Codecs | ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps H.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60 |
System Requirements
Operating System | macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
General
Rack Height | 1 RU |
Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x 4-Pin XLR Consumption 100 W Max |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |
Dimensions | 21.01 x 17.68 x 4.42 cm |
Weight | 0.82 kg |
