BlackMagic Design HyperDeck Studio HD Mini
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Orms Bellville
Orms Cape Town
BlackMagic Design HyperDeck Studio HD Mini
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Choose PayGate at checkout for MobiCred Payments.
- Records up to 4K DCI at 30 fps
- Plays Back up to 3840 x 2160 at 30 fps
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
The BlackMagic Design HyperDeck Studio HD Mini is the perfect compact broadcast quality record/playback deck to be taken on location or in studio. Featuring one USB-C webcam output, one HDMI and one 3G-SDI output as well as one 3G-SDI input.
This flexible system allows you to stream, input as well as record at the same time. The BlackMagic Design HyperDeck Studio HD Mini is perfect for live as well as post production work as this one recorder can do ISO recording of each camera with perfect sync for live and post-production work.
UHD 4K Recording and Playback
The BlackMagic Design HyperDeck Studio HD Mini is capable of recording UHD and DCI 4K video at up to 30 fps.
Video Inputs
Supports SD, HD and 3G signals over SDI.
Supported Codes
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

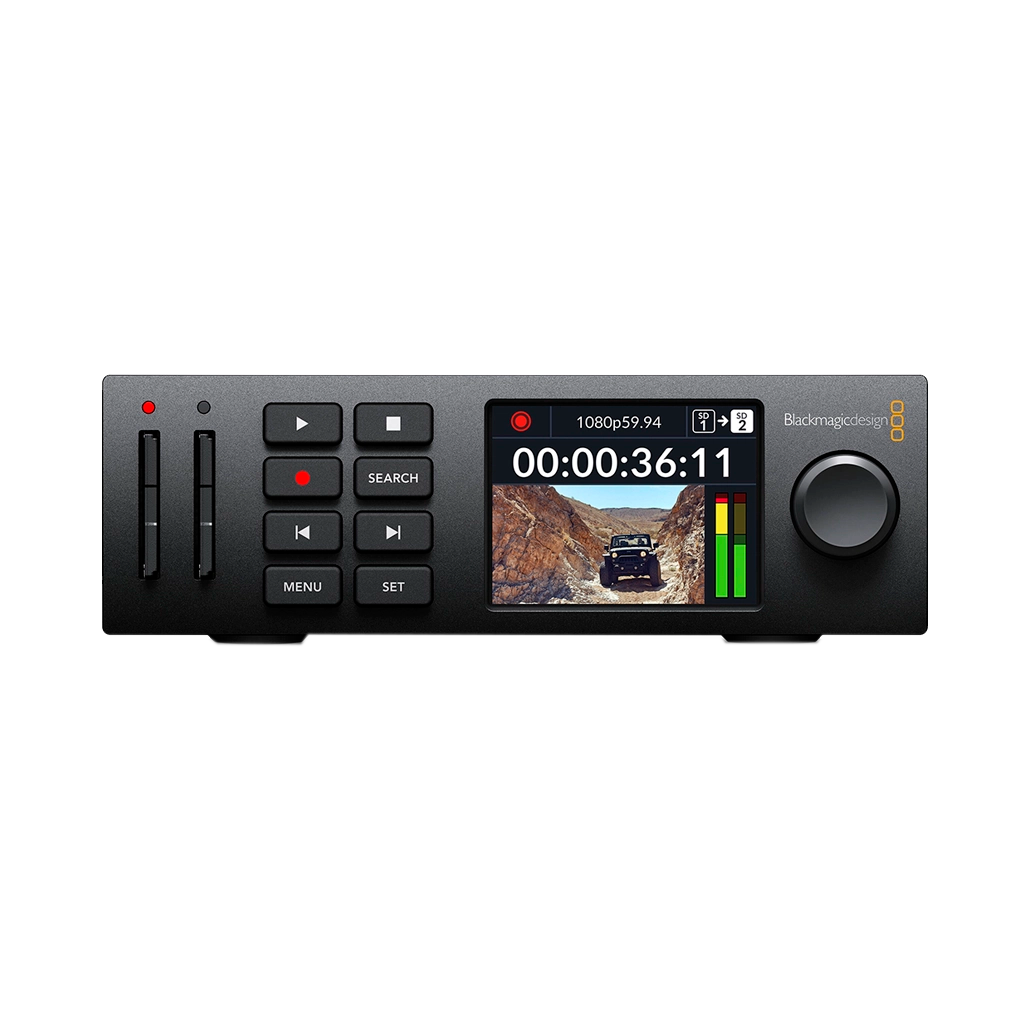

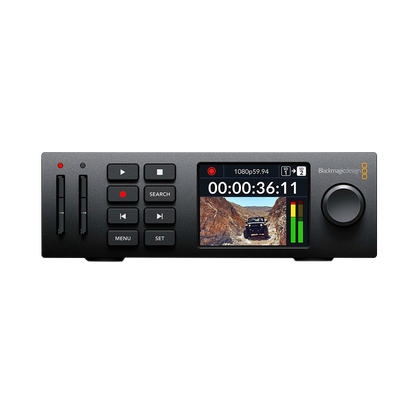

VTR-Style Controls
The BlackMagic Design HyperDeck Studio HD Mini features VTR-style front panel controls, enabling you to control recording, playback as well as a built-in jog / shuttle wheel providing analog style control over playback.
Built-In LCD Monitor
The unit features a LCD screen on the front panel that enables the user to monitor input or play back video.
Included Software
BlackMagic Design HyperDeck Studio HD Mini

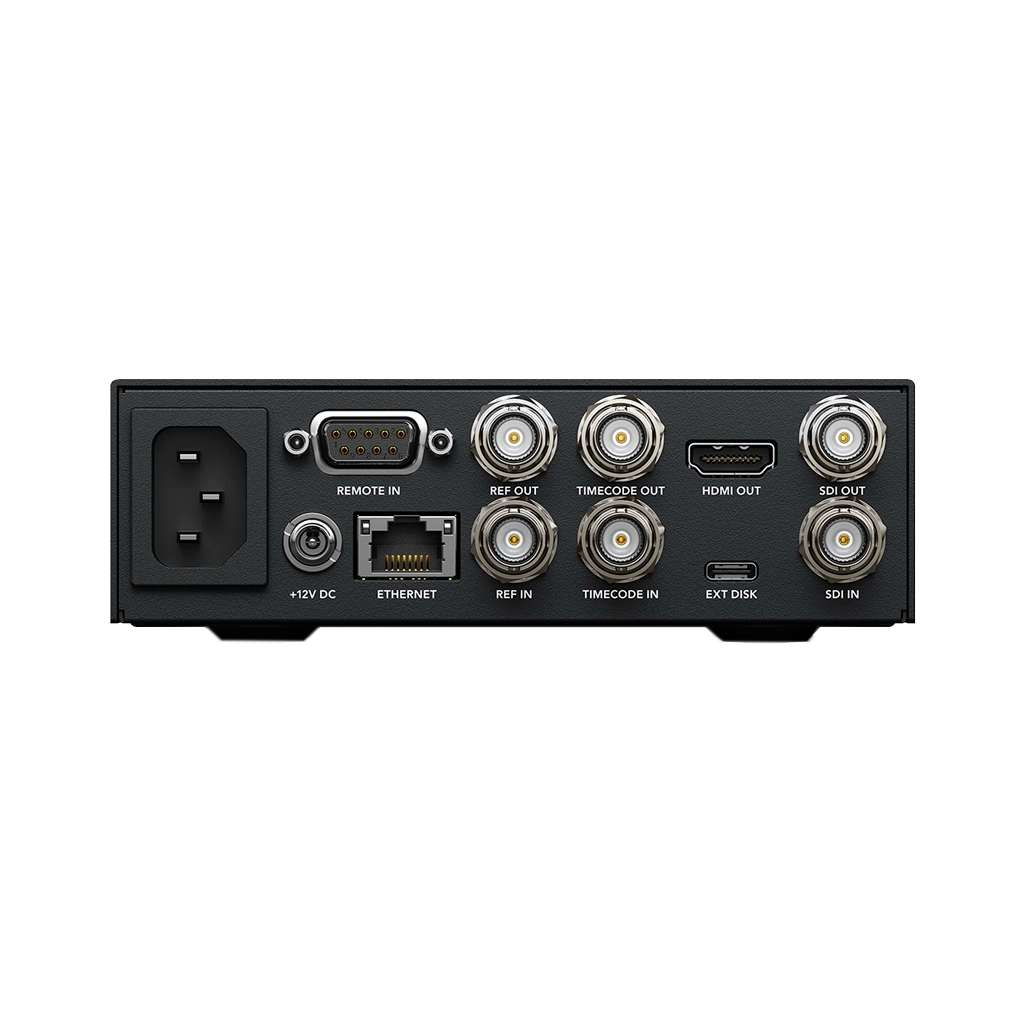

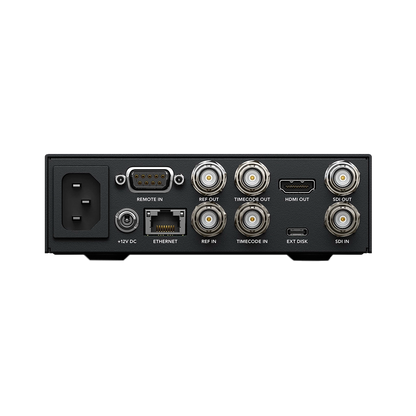

Connectivity
Video Input | 1 x BNC, 3G-SDI |
Video Output | 1 x BNC, 3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) |
Timecode | In: 1 x BNC out: 1 x BNC |
Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
Audio Input | None (Embedded Audio Only, 16 Channels) |
Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
Ethernet | 1 x RJ45 for Remote Operation |
Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
Standards
Supported Resolutions | 4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 30/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
Video Sampling | 4:2:2 YUV |
Color Depth | 10-Bit |
Color Space | REC 601 REC 709 REC 2020 |
HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Multi Rate Support | Autodetection of SD and HD |
Audio Sampling | Television Standard 48 kHz, 24-Bit |
Supported Codecs | ProRes
DNxHD
H.264
|
System Requirements
Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
General
Rack Height | 1 RU |
Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5 mm Barrel |
Operating Temperature | 5 to 50°C |
Storage Temperature | -20 to 45°C |
Relative Humidity | 0 to 90% Non-Condensing |
Dimensions | 17.68 x 14 x 4.42 cm |
Weight | 0.82 kg |
