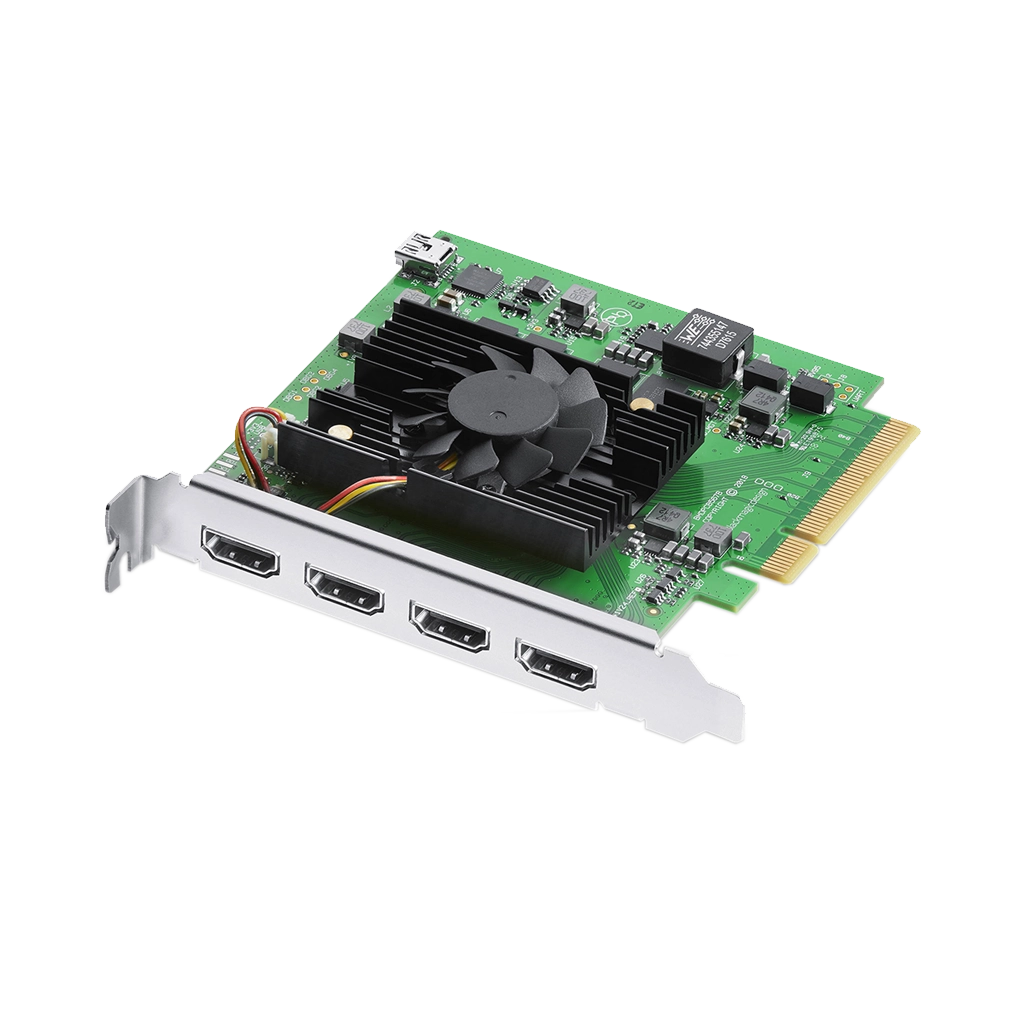

Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
Choose PayGate at checkout for MobiCred Payments.
- Record up to DCI 4K60 HDMI Video
- 4 x HDMI 2.0b Inputs
- PCIe Interface Card
- Up to 4K30 12-Bit 4:2:2 in All Modes
Orms Bellville
Orms Cape Town
Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Record up to DCI 4K60 HDMI Video
- 4 x HDMI 2.0b Inputs
- PCIe Interface Card
- Up to 4K30 12-Bit 4:2:2 in All Modes
Choose PayGate at checkout for MobiCred Payments.
- Record up to DCI 4K60 HDMI Video
- 4 x HDMI 2.0b Inputs
- PCIe Interface Card
- Up to 4K30 12-Bit 4:2:2 in All Modes
The advanced Blackmagic Design DeckLink Quad HDMI Recorder Capture Card is well designed for software live switching, real time computer game capture, streaming and more. The advanced PCIe card allows you to capture from 4 different HDMI sources in any combination of SD, HD, Ultra HD, 4K and even computer formats, all in one go.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10bit 4:2:2.
- Blackmagic Design DeckLink Quad HDMI Recorder Capture Card
- SD Card with Drivers and Utilities
Supported Operating Systems | macOS 10.13, 10.14 or Later Windows 7, 8.1, 10 (All 64-Bit) Linux |
Inputs/Outputs | 4 x HDMI 2.0b |
Computer Interface | PCI Express 8 Lane Generation 3 (Compatible with 8 and 16 Lane PCI Express Slots) |
Audio Channels | 8 x Embedded (HD and SD) |
Video Support | DCI 4K: 4K: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 UHD 4K: 2160p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD: 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 50, 59.94, 60 720p: 50, 59.94, 60 DVI: 2560 x 1600p: 50, 60 2560 x 1440p: 50, 60 1920 x 1440p: 50, 60 1920 x 1200p: 50, 60 1600 x 1200p: 50, 60 1440 x 1080p: 50 60 1440 x 900p: 50, 60 800 x 600p: 50, 60 640 x 480p: 60 SD: 525i: 59.94 NTSC 625i: 50 PAL |
Audio Sample Rate | 24-Bit, 48 kHz |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2 |
Color Space | Rec. 601, Rec. 709, Rec. 2020 Deep Color and HDR Supported |
HDMI Video Sampling | 8-, 10-, and 12-Bit RGB 4:4:4 (In All Modes up to 4K30) 8- and 10-Bit YUV 4:2:2 and 4:2:0 (In All Modes) 8-Bit RGB 4:4:4 (Supported in All DVI Modes) |
HDMI Copy Protection | Compliant |
Power Consumption | 23 W |
Certifications | FCC, CE, RCM, and KC |
Operating Temperature | 5 to 40°C |
Storage Temperature | -20 to 45°C |
Relative Humidity (non-condensing) | 0 to 90% |
Length | 10.9 cm |
Weight | 128 g |
