Blackmagic Design DeckLink Mini Recorder 4K
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Input
- HDMI Input
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
Orms Bellville
Orms Cape Town
Blackmagic Design DeckLink Mini Recorder 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Input
- HDMI Input
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G/6G-SDI Input
- HDMI Input
- PCI-Express 2.0 x4 Interface
- DCI 4K, UHD, HD, and SD Video Support
- 10-Bit Processing
- Hardware Color Space Conversion
- Software HD Down-Conversion
- MacOS X, Windows, and Linux Compatible

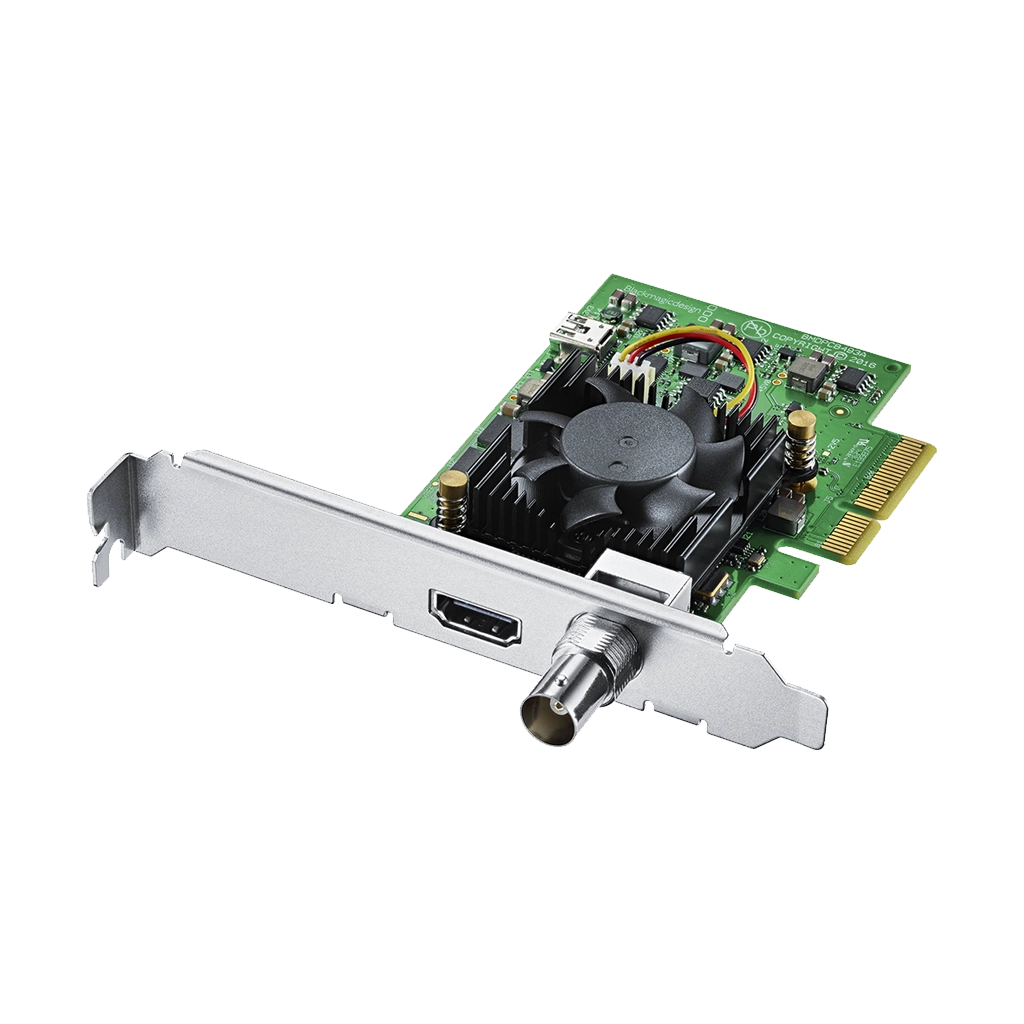

The Blackmagic Design DeckLink Mini Recorder 4K is a low profile PCI Express capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI.
The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.
Processing Features
- Colour Space Conversion: Hardware-based, real-time colour space conversion
- HD Up-Conversion: Software-based down-conversion during video playback
Software Support
DaVinci Resolve, Fusion, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Media Express, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro/Studio/Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
- Blackmagic Design DeckLink Mini Recorder 4K
- Low-Profile Bracket
System Connection | PCIe 2.0 x4 |
Video Inputs | 1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female |
Audio Inputs | None |
Input Video Format | SDI (8/10-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux |
Power Consumption | 8 W |
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 45°C |
Operating Humidity | 0 to 90% |
Dimensions | 11.94 cm |
Weight | 90 g |
