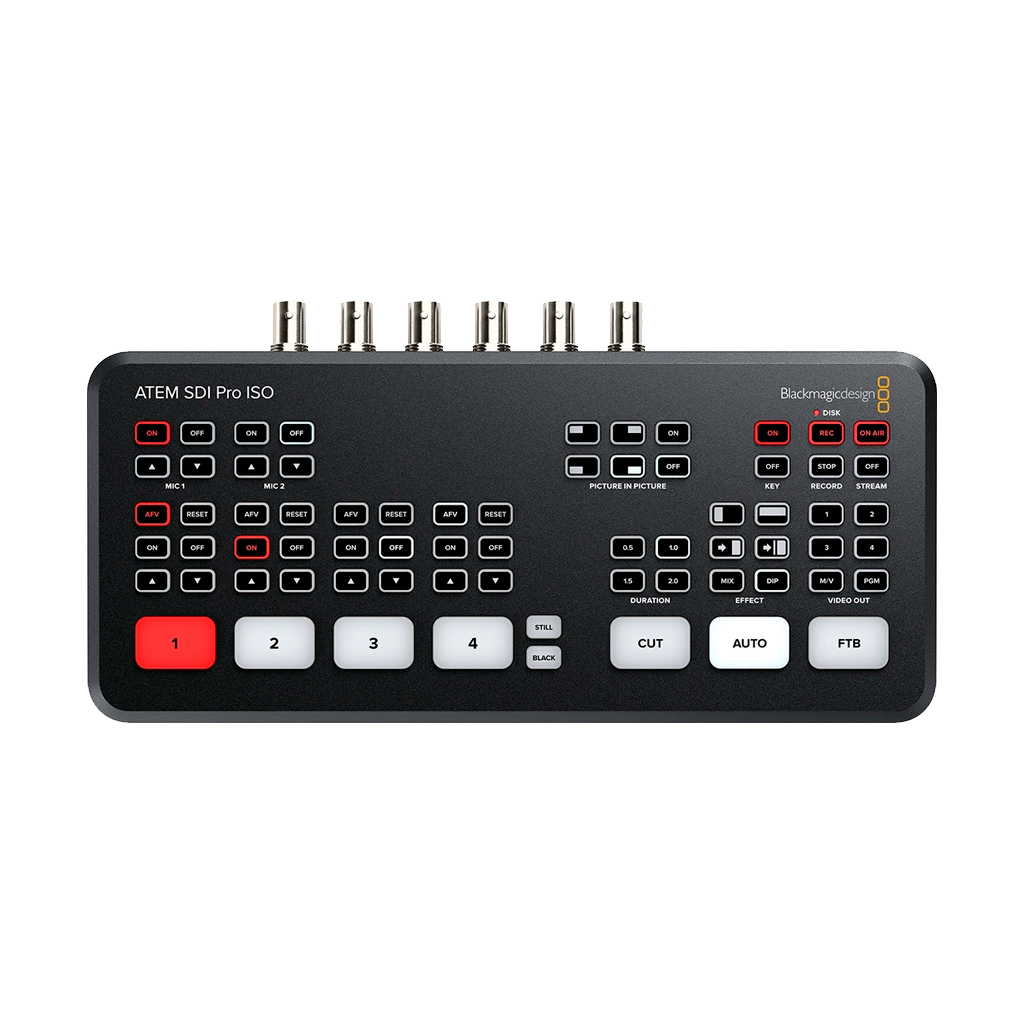

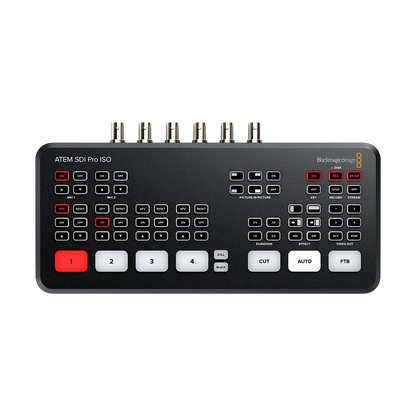

The Blackmagic Design ATEM SDI Pro ISO Switcher is designed for multicamera live streaming to the internet up to HD video. This is a four-input live-production switcher with an integrated control panel.
You will also find a USB output allowing for recording the program output as well as recording individual 3G-SDI inputs to an external USB drive (not included).
The Blackmagic Design ATEM SDI Pro ISO Switcher allows for ISO recording and generation of the DaVinci project file. Including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and colour generators. You will also find media player support for fill as well key images. Which supports up to 20 stills in PNG, TGA, BMP, JPEG as well as TIFF formats.
General
- Connecting a USB drive to the ATEM Mini Pro ISO's USB port enables capturing the switched program stream, up to four isolated (ISO) recordings of input video, and embedded audio, analogue input audio, graphics, and a DaVinci Resolve project file of your switched program
- The device has the same footprint, layout, and connections as the ATEM Mini Pro
- Stream video up to 1080p HD
- Quick stream, on-air, and record buttons
- Hardware encoder so there's no need for additional streaming software
- Control and configure timecode, stream status
- Full support and control features for BMPCC 6K/4K cameras
- Simultaneous USB recording
- Integration with MultiDock for live hard drive switching
- Customize advanced settings with XML files
- Software multiview with program previews, graphics, record status, on-air status, and audio meters
- Program preview input and output buttons
- Tally light control for BMPCC 6K/4K cameras
- Automatic timecode sync for all cameras
Transitions
The Blackmagic Design ATEM SDI Pro ISO Switcher allows transitions, including, cut, mix, dip, wipe, DVE.
Upstream Keyer
The upstream keyer lets you layer live video over other video sources. Luma key, linear key, and pattern key can be used, or you can shoot against a green screen.
Downstream Keyers
The Blackmagic Design ATEM SDI Pro ISO Switcher offers you one downstream keyer. This allows you to add quality graphics like logos, bugs and titles from the built-in media player over live stream output.
Audio Mixer
The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.
Monitor Output
You can configure the 3G-SDI outputs for multiview with multiple views, including Program, Preview, 4 3G-SDI inputs, SuperSource, clean feed, media player, streaming status, recording status, and audio meters.
Media Player
The Blackmagic Design ATEM SDI Pro ISO Switcher store up to 20 broadcast-quality RGBA graphic files in the media pool, this eliminates external character generators. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
- Blackmagic Design ATEM SDI Pro ISO Switcher
- 12V Power Supply with International Adapters
General
Available M/E Layers | 5 M/E |
Effect Types | DVE, Transition, Chroma Key |
Generators | 1 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Processing
Switching Type | IR Remote, Pushbutton, Software |
Input
Number of Video Input Sources | 4 |
Video Input Connectors | 4 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
Audio Input Connectors | 2 x 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Output
Video Output Channels | 3 |
Video Output Connectors | 2 x BNC (3G-SDI) 1 x USB Type-C |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Embedded Audio Output | SDI |
Multiview Output | None |

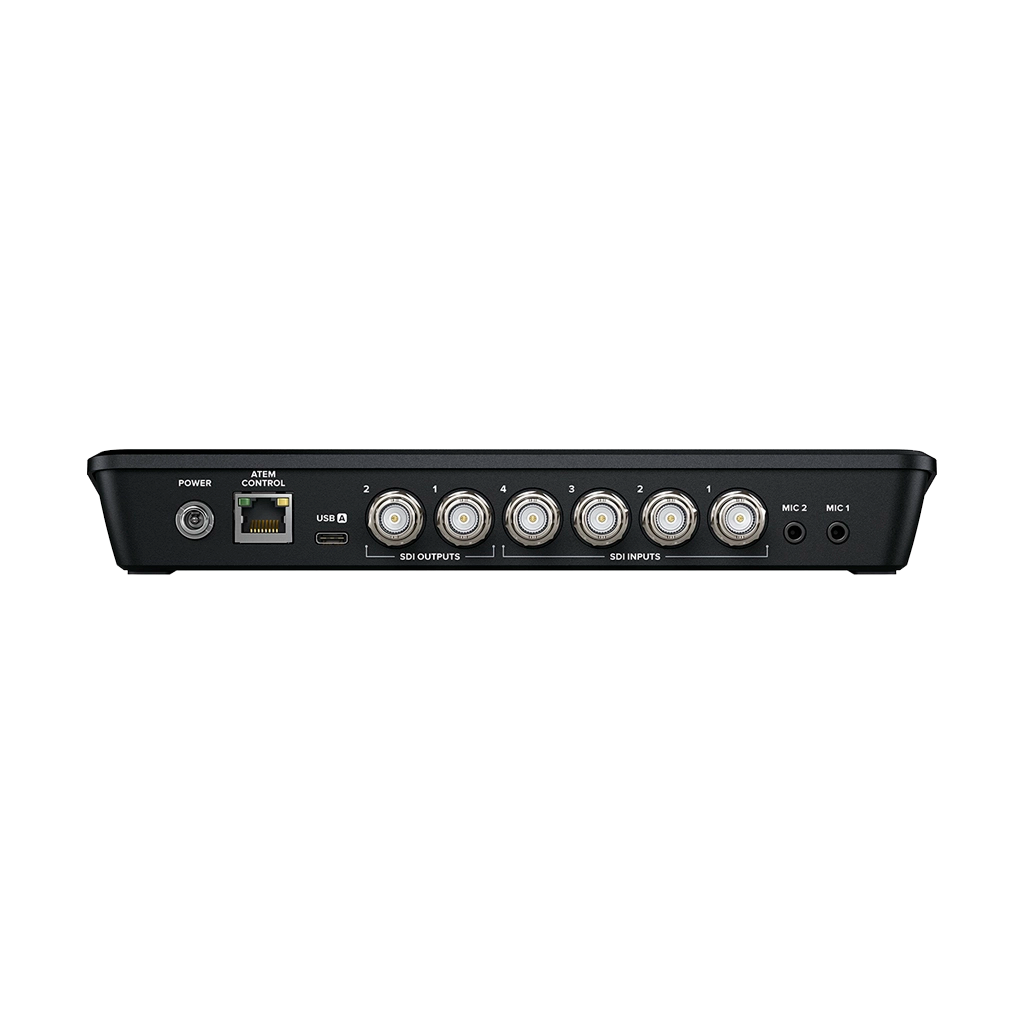

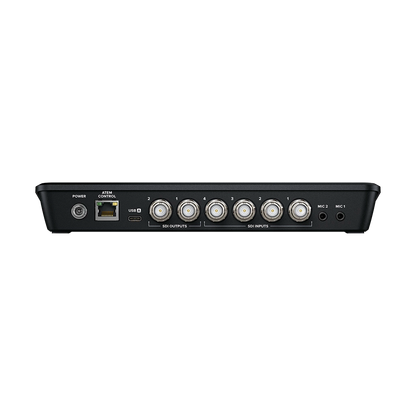

Connectivity
Other I/O | 1 x RJ45 Control Input/Output |
HDCP Support | None |
Hardware
OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 |
Power Connector | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 36 W |
Environmental
Operating Temperature | 5 to 40°C |
Storage Temperature | -10 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 23.75 x 11.86 x 3.51 cm |
Weight | 678 g |
