Blackmagic Design ATEM SDI Extreme ISO Switcher
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel 3G-SDI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All 3G-SDI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM SDI Extreme ISO Switcher
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel 3G-SDI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All 3G-SDI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel 3G-SDI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All 3G-SDI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
The Blackmagic Design ATEM SDI Extreme ISO Switcher is designed for live streaming featuring 8-inputs with an integrated control panel with advanced broadcast features.
With this switcher being ISO means you can individually record each of the eight input videos as an MP4. You can also power output using one of the USB Type-C ports.
All most commonly used HD signals up to 1808p60 are supported by the eight independent 3G-SDI inputs.
The Blackmagic Design ATEM SDI Extreme ISO Switcher enables you to switch, add effects, colour grade, and key in real-time using the integrated control panel. You are also able to control Blackmagic Studio and URSA Min/Broadcast/Micro Studio cameras using the CCU functions available. Supporting up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two colour generators.
As the Blackmagic Design ATEM SDI Extreme ISO Switcher is designed for live streaming or webcam, you will find four 3G-SDI outputs to feed monitors, as well as supporting up to 16-screen multiview.
Stream Live
With the Blackmagic Design ATEM SDI Extreme ISO Switcher live stream to YouTube, Facebook Live, Skype, Twitch, Zoom, Microsoft Teams, and other platforms that support RTMP protocols.
Control Interface

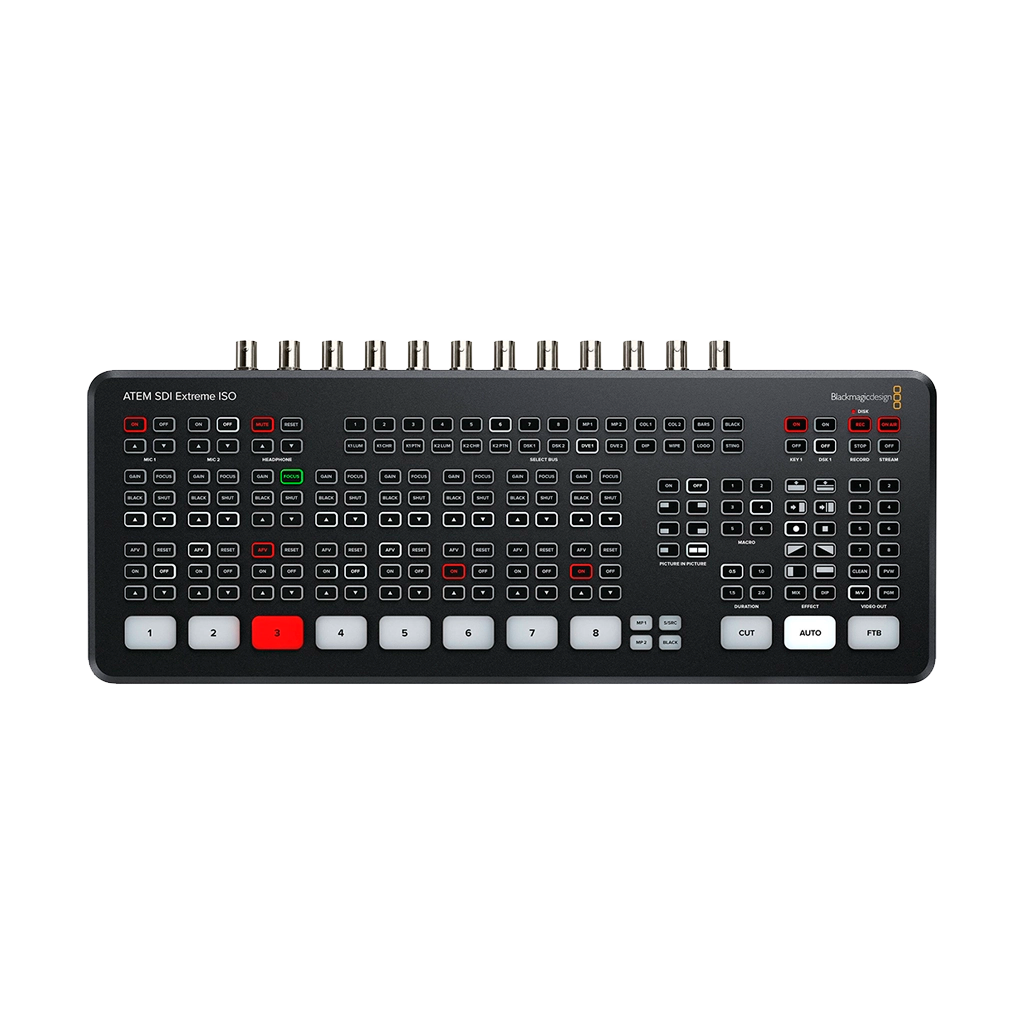

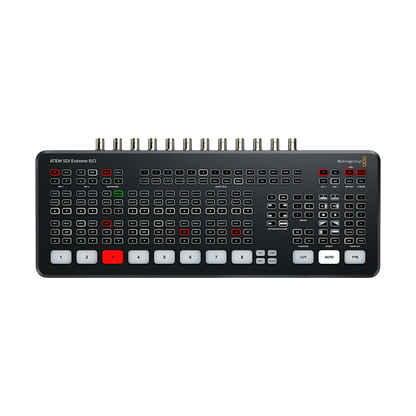

The front control panel includes easy-to-use and read buttons that are back-illuminated for selecting sources, video effects, and transitions. On the Blackmagic Design ATEM SDI Extreme ISO Switcher, you will find additional buttons for audio mixing, recording, and streaming control. Also, output selection buttons that allow you to change the video output between cameras, programs, and multiview.
Output
You can output using the Ethernet connection to your network or use the USB Type-C output to have your switched show recognized as a webcam input by virtually any video software such as Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster, and others.
4G and 5G Phone Support
When doing live production on location, the Blackmagic Design ATEM SDI Extreme ISO Switcher can connect to mobile data when connecting an Apple or Android phone to the USB port.
Media Pool
The switcher can store up to 20 images with fill and key, and it supports PNG, TGA, BMP, GIF, JPEG, and TIFF file formats.
Compatibility
You will also find Blackmagic ATEM Software Control Panel, and it is also compatible with the ATEM 1 M/E, ATEM 2 M/E, and ATEM 4 M/E Advanced Panels.Recording
The Blackmagic Design ATEM SDI Extreme ISO Switcher allows for direct recording of your streaming data to USB flash disks using the same H.264 video files with AAC audio that you streamed. Also, you are able to record eight input video channels as MP4 files.
You are also able to record to multiple disks via a USB hub, this allows for non-stop recording. Even when one disk is full, recording can continue to the next.
DaVinci Resolve Integration
With the ability to save a DaVinci project file in one click you can open your live production as video edit. This allows for editing your live production recordings.
Video Effects
With the Blackmagic Design ATEM SDI Extreme ISO Switcher features a cut button on the control panel that enables instant switching between sources. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip, which fades via a colour during the transition. Or use fun DVE effects that move the image off-screen when transitioning between sources.
Audio
This switcher features two independent 3.5mm stereo audio inputs, with the inputs you can connect a desktop or lapel mic, or even a music player to generate introduction music after the lie stream.
With buttons on the control panel, you are able to adjust audio levels, you can justify each mic input volume level. With the Blackmagic Design ATEM SDI Extreme ISO Switcher, you will also find a headphone output for monitoring.
- Blackmagic Design ATEM SDI Extreme ISO Switcher
- 12 VDC External Power Supply
General
Available M/E Layers | 9 M/E |
Effect Types | DVE, Transition, Chroma Key, Luma Key |
Generators | 5 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Processing
Switching Type | IR Remote, Pushbutton, Software |
Input

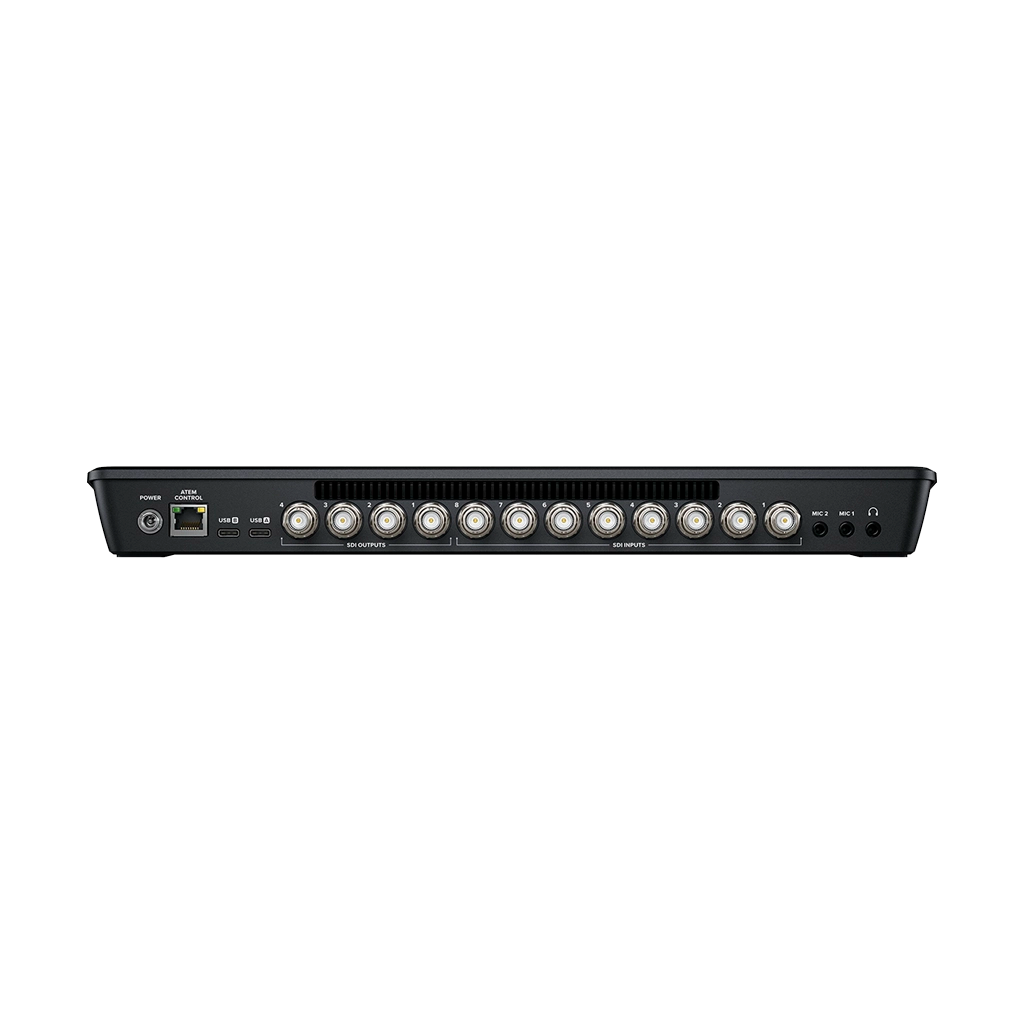

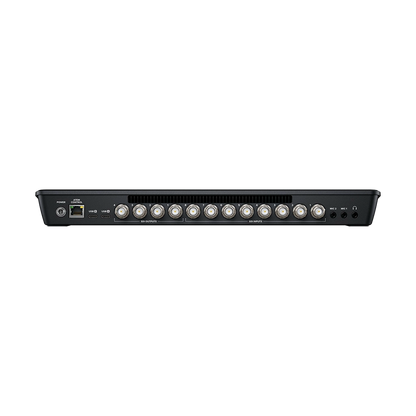

Number of Video Input Sources | 8 |
Video Input Connectors | 8 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
Audio Input Connectors | 2 x 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Output
Video Output Channels | 6 |
Video Output Connectors | 4 x BNC (3G-SDI) (Program) 2 x USB Type-C |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Audio Output Connectors | 1 x 3.5 mm TRS Analog |
Output Audio Format | Analog |
Embedded Audio Output | SDI: 2-Channel (per Output) |
Multiview Output | None |
Connectivity
Other I/O | 1 x RJ45 Control Input/Output |
HDCP Support | None |
IP Video | 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
Hardware
OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 |
Power Connector | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 36 W |
Environmental
Operating Temperature | 5 to 40°C |
Storage Temperature | -10 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Dimensions | 36.98 x 15.09 x 3.96 cm |
Weight | 1.42 kg |
