Blackmagic Design ATEM Mini Extreme ISO
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel HDMI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All HDMI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM Mini Extreme ISO
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel HDMI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All HDMI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Choose PayGate at checkout for MobiCred Payments.
- 8-Channel HDMI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All HDMI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
The Blackmagic Design ATEM Mini Extreme ISO is an advanced live production switcher that's perfectly designed for professionals.
It offers a variety of powerful features such all the Mini Extreme features along with 8 HDMI inputs, two separate HDMI outputs, 2 USB ports and a headphone connection - making it the ideal system to create professional multi camera productions. The ISO version simply allows users to individually record each of the 8 input videos as an MP4, and the program output via the one of the USB Type-C ports - making it possible to record up to 9 separate H.264 video streams in real time.

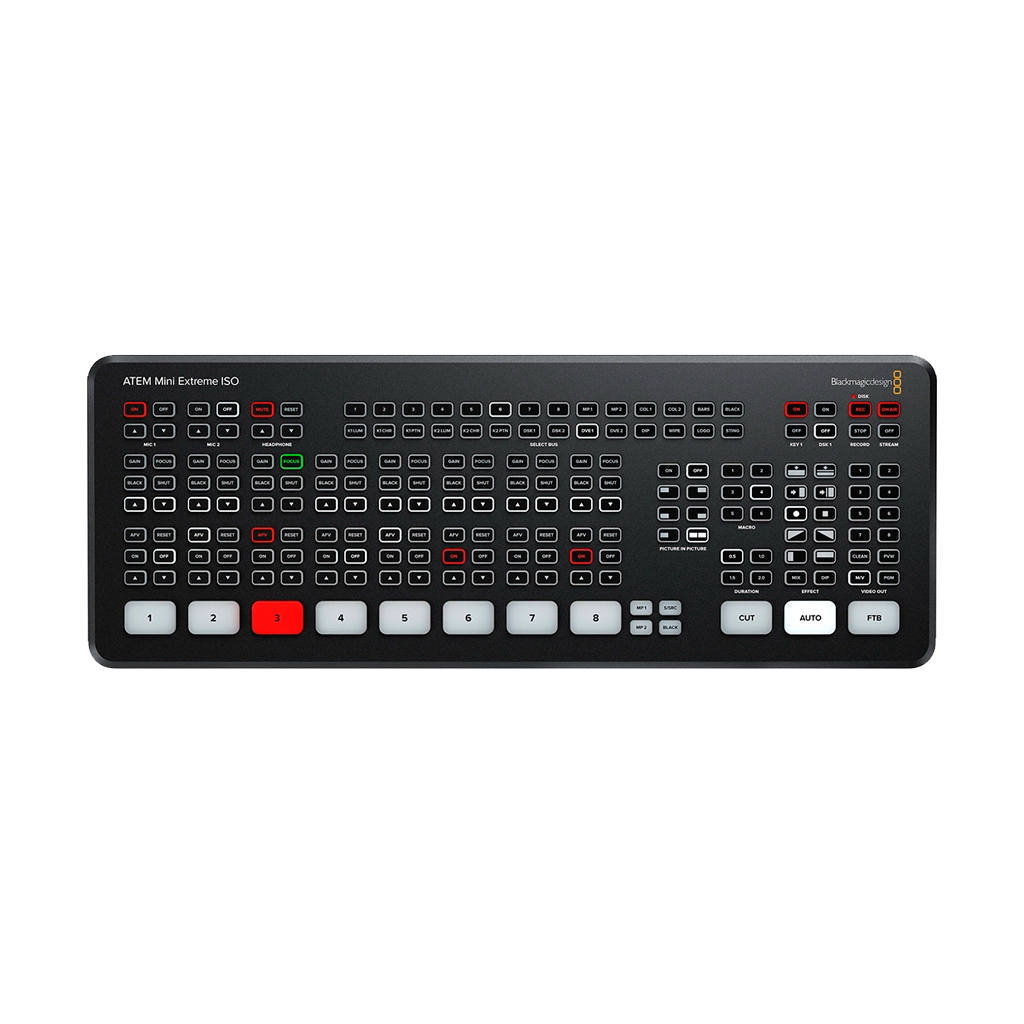

Control Interface
The Blackmagic Design ATEM Mini Extreme ISO features easy to use buttons on the front panel of the construction, allowing users to easily select sources, transitions and video effects. You can operate without any hassles all thanks to large source buttons. The buttons on the panel simply allows you to control audio mixing, recording, and streaming, as well as the output selection buttons that easily allows you to adjust the video output between different cameras that are setup, program, and Multiview. On the rear panel, you'll have access to the HDMI connections for cameras or computers, extra microphone inputs, USB connections to setup a webcam out, and an HDMI AUX output for program video.
Stream Live
With Live Stream being a feature, you'll have the options of live streaming to Facebook Live, YouTube, Skype, Microsoft Teams, and many other platforms that support RTMP protocols.
Use Ethernet Control for Wireless Internet Streaming
ATEM Software Control connects to ATEM Mini Extreme ISO via USB or Ethernet; however the benefit of Ethernet is you can use it to share your computers internet connection for streaming on the ATEM Mini Extreme ISO model. Simply connect ATEM Mini Extreme ISO via Ethernet and set your computer to share its internet. Using Ethernet is easy, and when launching the software; just select the ATEM Mini Extreme ISO model. If you are streaming on ATEM Mini Extreme ISO; also set your computer to share its internet. Now you get both control and streaming via the single Ethernet cable. This provides amazing mobility as you can connect your computer to the internet using wireless connections such as WiFi or even 4G and 5G tethered phones.
Edit Live Production with Separate ISO Recordings
The Blackmagic Design ATEM Mini Extreme ISO live production switcher allows you to edit your live events as they can record multiple video streams, as well clean feeds of all inputs and program, this all at the same time. Media pool images that's being used are also saved with the video files. With the video files, you get metadata tags such as synced timecode and camera numbers. You can edit your live production with new colour grades, effects and graphics; as well audio sources are all recorded so that you can professionally remix your audio.
Monitor Sources and Status with ATEM Mini Extreme ISO Multiview
When doing larger live productions with multiple cameras; it’s very useful to see all your video sources at the same time on a single monitor. The ATEM Mini Extreme ISO model includes a professional multiview that lets you configure the HDMI output with 4, 7, 10, 13, up to 16 views including Program, Preview, eight HDMI inputs, SuperSource, clean feed, media player, streaming status and audio meters. Simply select M/V on the front panel video output control buttons to select multiview. Each camera view includes tally indicators so you know when each source is on-air; and each view also has custom labels and audio meters. You can also see the media player so you know what graphic is selected.
Faster Video Production Plus Live Streaming
Live production is the fastest way to complete a finished program; plus, you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built-in webcam; so, all streaming software for social media platforms work. With up to 8 HDMI inputs, you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show; video clip playback; websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as YouTube; Facebook; Twitch TV and many more.
Outputs to HDMI Video and USB Webcam
To ensure maximum compatibility; ATEM Mini Extreme ISO features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini Extreme ISO is a common webcam; but it’s really a live production switcher. That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like; such as Open Broadcaster for live streaming or Skype for Powerpoint presentations. ATEM Mini Extreme ISO works with software and platforms such as Open Broadcaster; XSplit Broadcaster; YouTube Live; Facebook Live; Skype; Zoom; Twitch; Periscope; Livestream; Wirecast and more.
Record Direct to USB Flash Disks with ATEM Mini Extreme ISO
The ATEM Mini Extreme ISO model also supports direct recording of your streaming data to USB flash disks. That means you get very long recordings in the same H.264 video files with AAC audio that you streamed; so you can direct upload to any online video site; such as YouTube and Vimeo. ATEM Mini Extreme ISO supports multiple disks when used with a USB hub or Blackmagic MultiDock; so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there’s a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras.
Work with Professional Microphones
With two independent 3.5mm stereo audio inputs; you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs; you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. ATEM Mini features a full Fairlight audio mixer and all HDMI audio inputs and both microphone inputs are all connected separately to the audio mixer so you can live mix from all audio sources. Additionally, the ATEM Mini Extreme ISO from Blackmagic also adds a headphone output.
DVE for Picture in Picture; Transitions and Effects
One of the most exciting features on the ATEM Mini is the digital video effects processor; commonly referred to as a "DVE"; that allows picture in picture effects and crazy DVE transitions. The DVE lets you create professional picture in picture effects with customizable 3D borders; shadows and lighting. The image quality is the same as high end ATEM switcher models and the DVE supports position; resize and scale; all in real time. The DVE can also be used to create amazing transitions with 16 different DVE squeeze and DVE push effects for adding excitement to your programming. The DVE features a "fly key" so you can use it with custom graphics to create graphic wipe transitions.
Automatically Converts Any HDMI Input Format
Each of the 8 HDMI inputs feature their own dedicated standards converter. That means the ATEM Mini Extreme ISO will automatically convert 1080p; 1080i and 720p sources to the video standard of the switcher. By default the switcher will set its video format automatically; however you can also set the switcher to a specific video standard you need. The HDMI output is a true "aux" output so you can clean switch each HDMI input or program to this output. You can even "direct" switch input 1 to the HDMI output for low latency eSport productions. If you’re using program/preview switching; the HDMI out can be selected to preview; or on the ATEM Mini Extreme model; it can be selected to display a full multiview. Additionally, it also supports 2 low latency direct loops.
Professional Broadcast Transitions
ATEM Mini includes a wide range of broadcast quality HD native transitions such as mix; dip; wipe and more. All transitions can be customized by adjusting parameters such as duration; border colour; border width; position and direction. You can also use the DVE in transitions; allowing a graphic to be moved over the wipe edge which is called a graphic wipe; and is used in sports programming. To eliminate errors; ATEM Mini has a preview transition feature so you can check your transitions before putting them to air.
Create Amazing Virtual Sets
The Blackmagic Design ATEM Mini Extreme ISO allows you to create amazing virtual sets as it includes 4 upstream chroma keyers. The 4 independent keys, that includes keyer per camera so that you can build a virtual set for up to 4 cameras. The Blackmagic Design ATEM Mini Extreme ISO offers 8 inputs, with 4 to use for cameras and the other 4 can be connected to a virtual set computer for the rendered backgrounds as well as the program video, making it up to 9 separate H.264 video streams in real time. You can do fixed camera virtual sets by loading pre rendered still image backgrounds from the media players and media pool, this without having to move your camera.
- Blackmagic Design ATEM Mini Extreme ISO
- 12 VDC Power Supply with International Plugs
Available M/E Layers | 9 M/E |
Effect Types | 2 x DVE 4 x Luma Key 4 x Chroma Key |
Graphics Memory | 20 Images |
Downstream Keys | 2 x Chroma, Luma, DVE |
Generators | 5 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Switching Type | Pushbutton, Software |
Processing Resolution | 1080p |
Number of Video Input Sources | 8 |
Video Inputs | 8 x HDMI |
Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Inputs | 2 x 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) |
Video Output Channels | 2 |
Video Outputs | 2 x HDMI |
Output Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Audio Outputs | 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
Embedded Audio Output | HDMI: 2-Channel |
Multiview Output | 16-Way Multiview viaHDMI |
Other I/O | 1 x RJ45 2 x USB-C |
HDCP Support | None |
IP Video | H.264: 1920 x 1080 Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 1 Streams |
Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 36 W |
Operating Temperature | 5 to 40°C |
Storage Temperature | -10 to 60°C |
Operating Humidity | 0 to 70% |
Dimensions | 36.98 x 13.64 x 3.96 cm |
Weight | 1.23 kg |
