Blackmagic Design ATEM 2 M/E Advanced Panel
Choose PayGate at checkout for MobiCred Payments.
- Panel for BMD ATEM Switchers
- High-Quality Buttons / Knobs / Controls
- 2 x M/E Rows with 20 x Buttons per Row
- 2 System Control LCDs, Control 4 M/Es
- 4 x Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 8 x On-Air Indicators, 20 x Cross Points
- 3-Axis Joystick, Keypad, 2 x Faders
- USB Type-C Input for Firmware Updates
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM 2 M/E Advanced Panel
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Panel for BMD ATEM Switchers
- High-Quality Buttons / Knobs / Controls
- 2 x M/E Rows with 20 x Buttons per Row
- 2 System Control LCDs, Control 4 M/Es
- 4 x Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 8 x On-Air Indicators, 20 x Cross Points
- 3-Axis Joystick, Keypad, 2 x Faders
- USB Type-C Input for Firmware Updates
Choose PayGate at checkout for MobiCred Payments.
- Panel for BMD ATEM Switchers
- High-Quality Buttons / Knobs / Controls
- 2 x M/E Rows with 20 x Buttons per Row
- 2 System Control LCDs, Control 4 M/Es
- 4 x Gigabit Ethernet Loop Output
- Custom Labeling, Redundant Power Supply
- 8 x On-Air Indicators, 20 x Cross Points
- 3-Axis Joystick, Keypad, 2 x Faders
- USB Type-C Input for Firmware Updates

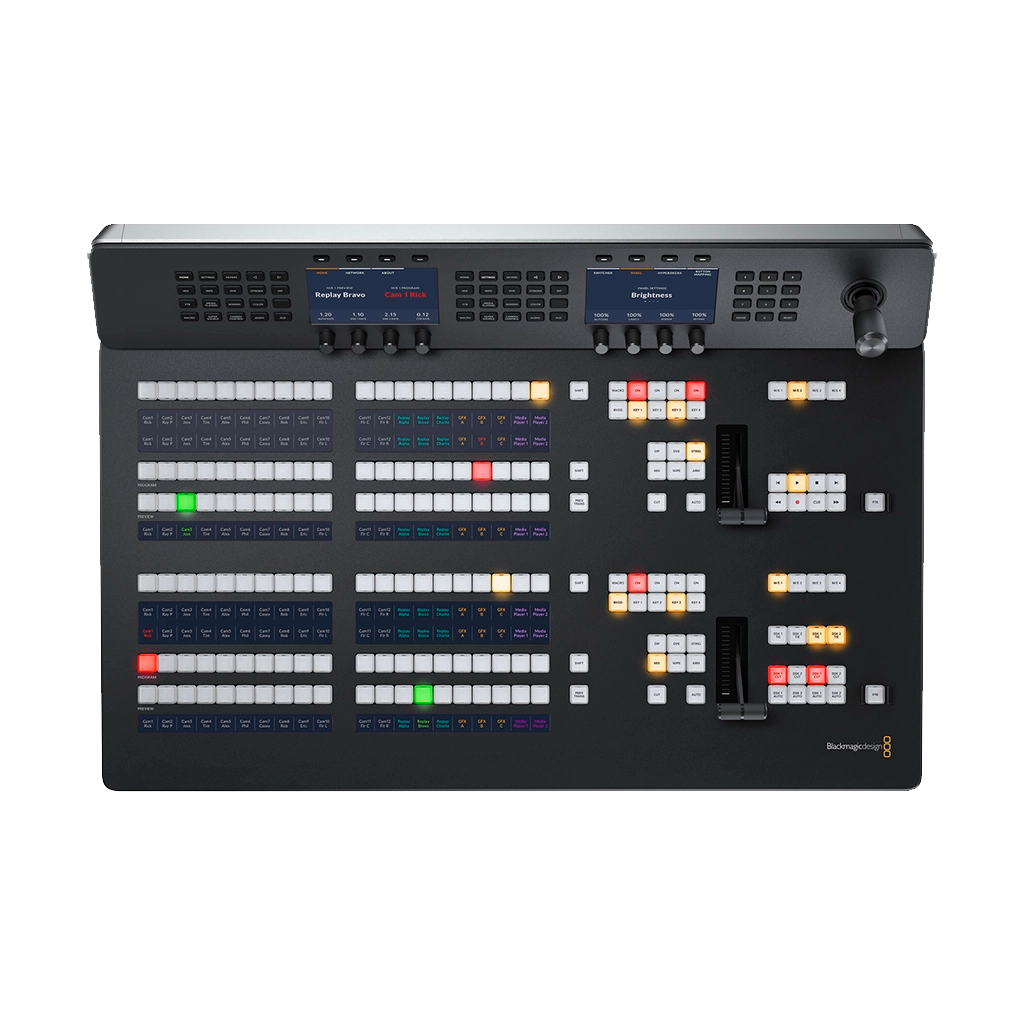

The Blackmagic Design ATEM 2 M/E Advanced Panel is a companion to separately available ATEM Switchers. High-quality buttons, faders, knobs and a joystick make it possible for you to fully customize the panel t your precise needs.
Within complex live productions you will require a versatile control panel, that is made possible with the Blackmagic Design ATEM 2 M/E Advanced Panel allowing you to customize, monitor, and switch your live broadcast events. With features such as camera switching, executing transitions, fades, DVE effects, and it also sports 8 on-air indicators.
The Blackmagic Design ATEM 2 M/E Advanced Panel provides you with two rows of M/E with 20 input buttons per row, two system control LCDs, 20 direct cross points, 40 shifted cross points, two preview transitions, and various DSK transition selectors such as Auto, Cut, and Tie/Preview.
The panel connect to the switcher via Ethernet with four Ethernet loop outputs enabling you to connect to another media-management computer.
Ethernet Connector | 4 x RJ45, 10/100/1000 BaseT |
Other I/O | 1 x USB Type-C, Firmware |
Buttons | 40 x Input Buttons (20 per Row) |
Mix Controller | 20 x Direct Cross Points 40 x Shifted Cross Points 2 x M/E Rows 2 x BKG Next Transition Selectors, Key 1 to Key 4 8 x On-Air Indicators 2 x DSK Transition Selectors: Auto, Cut, Tie/Preview 2 x Preview Transitions |
LCD Display | 2 x System LCDs per Row 20 x LCDs (1 x per Button) |
Controls | 1 x 3-Axis Joystick 1 x Numeric Keypad 2 x Fader Bars 8 x Transport Control Buttons |
Redundant Power | Yes |
Input Voltage | 100 to 240 VAC |
Power Consumption | 150 W |
Dimensions | 111 x 72.5 x 16.6 cm |
Weight | 11 kg |
Blackmagic Design ATEM 2 M/E Advanced Panel
Key Features
- Tri-color LED crosspoint buttons, 20 direct cross points and 40 shifted cross points
- Two M/E rows with 20 input buttons in each row
- Two system control LCDs for each row and LCDs for customizing labels for each button
- Two fader bars, 3-axis joystick, numeric keypad
- Eight on-air indicators
- Two transition previews with transition rate display
Compatible Operating Systems
macOS 10.14 Mojave, 10.15 Catalina or later Windows 10, 64-bit
