Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU)
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 10 x 3G-SDI Inputs, 6 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 28-Channel Audio Mixer
- 4 x Upstream, 1 x Downstream Keyer
- Chroma/Luma Keyers
- Colour/Pattern Generators
- Hardware or Software Mac/Windows Control
Orms Bellville
Orms Cape Town
Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 10 x 3G-SDI Inputs, 6 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 28-Channel Audio Mixer
- 4 x Upstream, 1 x Downstream Keyer
- Chroma/Luma Keyers
- Colour/Pattern Generators
- Hardware or Software Mac/Windows Control
Choose PayGate at checkout for MobiCred Payments.
- Supports 3G/HD-SDI at 10-Bit
- 10 x 3G-SDI Inputs, 6 x 3G-SDI Outputs
- Up to 16-Multiview Monitoring Windows
- Webcam Output via USB Type-C
- Frame Rate/Format Converter per Input
- 28-Channel Audio Mixer
- 4 x Upstream, 1 x Downstream Keyer
- Chroma/Luma Keyers
- Colour/Pattern Generators
- Hardware or Software Mac/Windows Control
With the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU) you have a powerful live event HD switching station, supporting up to 10 individual 3G/HD-SDI inputs, all in one 1 RU chassis.
This unit supports 3G-SDI as well as HD-SDI signals, with connectivity to a wide range of cameras and sources, delivering program output via six 3G-SDI BNC outputs, alternatively a webcam using the USB Type-C.
The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher additionally features multiview output with up to 16 routable windows to display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

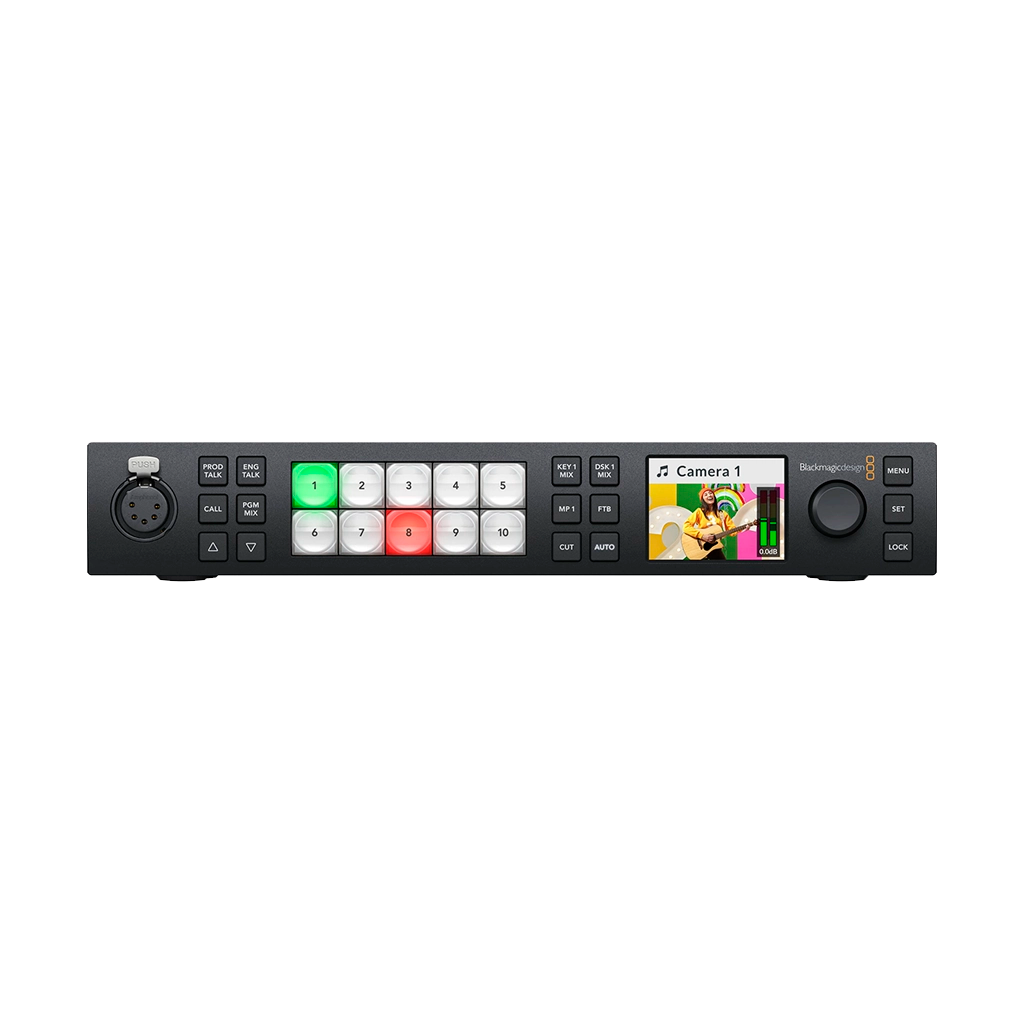

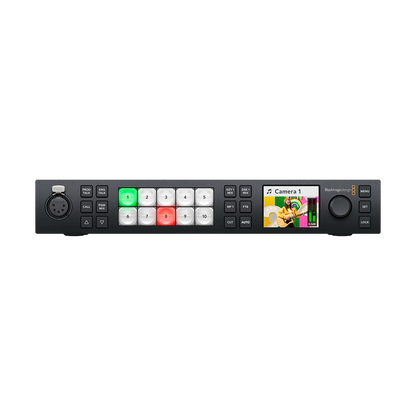

The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU) features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real-time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
Broadcast-Quality Transitions
The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU) offers a wide range of broadcast quality transitions, including mix, dip, wipe, and more. Border colour, border width, position, direction, and a lot more can be customized in the system control menus. Including a powerful digital video effects processor for DVE transitions, which can be used to squeeze the current picture offscreen revealing a new video under it. You will also find a preview transition feature, so you can set up your transitions before you switch it on air.
Built-In DVE
ATEM Constellation features one independent DVE that lets you reposition graphics and create picture-in-picture compositions. You get amazing quality and the DVE supports the position, resize, and scale, all in real-time. The DVE lets you create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting.
Multiview
Configurable to 16, 13, 10, 7, or 4 up view, it includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters.
Professional Broadcast Talkback
Featuring built-in talkback, you are able to be in contact with your team. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ45 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ45 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS.
Media Pool
With the built-in media tool, you are able to store broadcast-quality RGBA graphics as well as animations that can instantly be played back by the two or four media players that simply appear as additional input sources on the unit. This allows you to not have the use of extra SDI inputs for graphics. Holding up to 20 stills and 200 frame animations
Chroma Keyers
For news or virtual set work, ATEM Constellation HD is perfect as it features ATEM advanced keyers for high-quality chroma or luminance keying. The chroma keyer is incredibly powerful and features a colour picker to sample background colours for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground colour corrector so you can match the "look" of the foreground layer to the background layer, making seamless compositions possible. The keyer can also be used for pattern and DVE keying. You get four ATEM Advanced Keyers.
Upstream Chroma Keyers
The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher features four upstream chroma keyers per M/E row, providing the building virtual sets. For virtual sets, external image processors can be used, or you can even build a fixed camera virtual set by loading pre-rendered still image backgrounds from the media players and media pool.
Multi-Rate 3G-SDI Input
With the multi-rate 3G-SDI input connections the ATEM Constellation is compatible with all types of HD video structures. All HD television standards are supported (720p, 1080i, as well as 1080p formats.
The SDI inputs will also handle embedded audio and mix audio from all video inputs. Plus, the program outputs include talkback, tally, and camera control information. That means you can connect any of the switcher SDI outputs back to the camera for program return, camera control, and talkback.
Audio
The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU) - is a world-first that can embrace live professional audio productions. All SDI inputs are connected to a built-in Fairlight audio mixer that features a 6-band parametric EQ, compressor, limiter, noise gate, and expander on each input. The Fairlight audio mixer even has additional inputs for mixing audio from analogue inputs, talkback microphones for voice-over, and more.
ATEM Software Control Panel
The Software Control Panel provides you with total control over your switcher and is included. The switcher enables multiple users to connect via Ethernet and work from different locations of the same event.
The ATEM Software Control also lets you access camera control, audio mixing, media, macro programming, and even control of HyperDeck disk recorders. You can even save the full state of the switcher as XML files, plus all media is backed up from the media pool. You can run the software on Mac or Windows.
Supports Optional Control Panels
The Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher's advanced panels feature the industry-standard, familiar M/E style layout. Each of the channels features built-in LCDs for menus as well as customizable illumination colour, a DVE joystick, and a T-bar fader.
Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher (1 RU)
Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher
Available M/E Layers | 1 M/E |
Effect Types | 4 x Chroma Key 5 x Luma Key 1 x DVE, Stinger |
Downstream Keys | 1 x Chroma, Luma, DVE |
Generators | 2 x Color 5 x Pattern |
Audio Mixing | 28-Channel Mixing |
Processing
Switching Type | Pushbutton, Software |
Processing Resolution | 1080p |
Colour Processing | 10-Bit 4:2:2 |
Input
Number of Video Input Sources | 10 |
Video-Input Connectors | 10 x BNC (3G-SDI / HD-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Input Connectors | 2 x 1/4" TRS Stereo Analog Female |
Input Audio Format | Analog |
Output
Video Output Channels | 6 |
Video Output Connectors | 6 x BNC (3G-SDI / HD-SDI) 1 x USB Type-C (USB Video) (Program) |
Output Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Embedded Audio Output | SDI USB Type-C |
Multiview Output | 16-Way Multiview viaSDI |
Connectivity

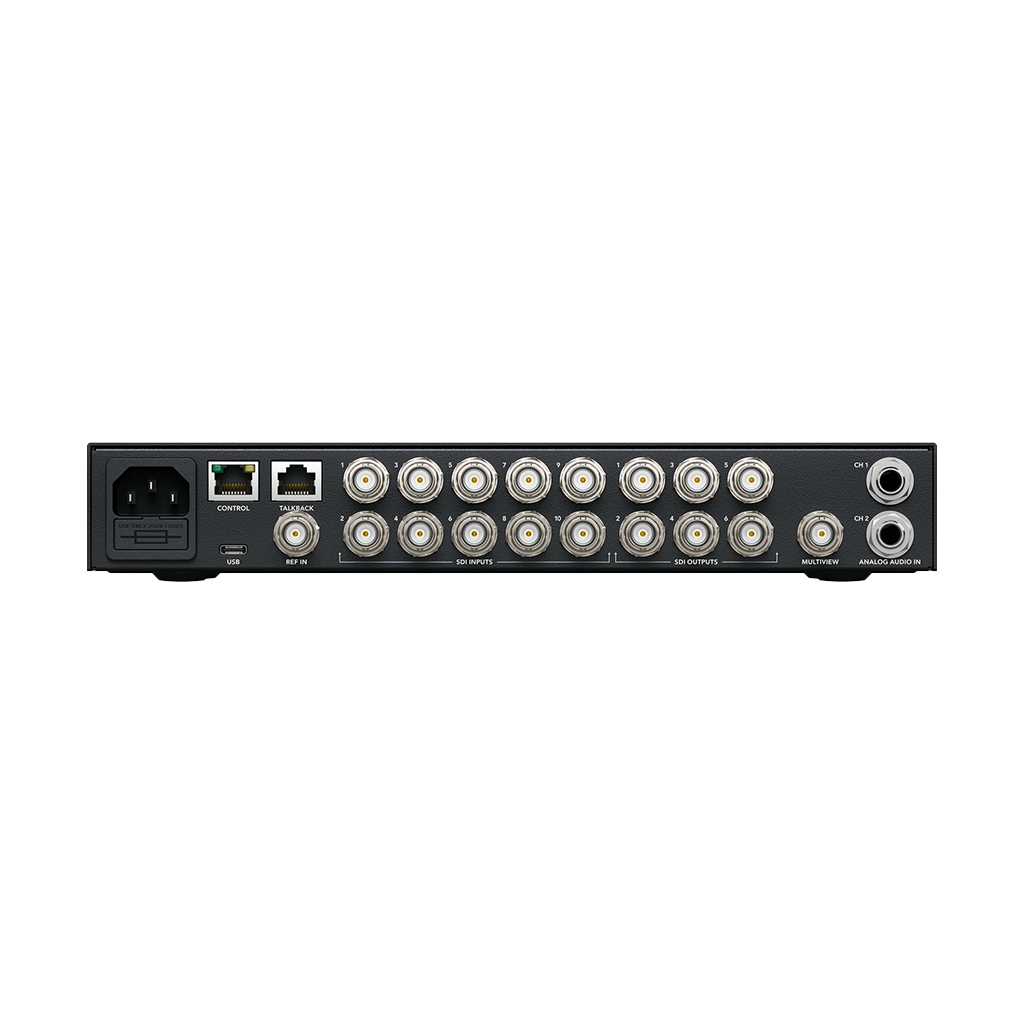

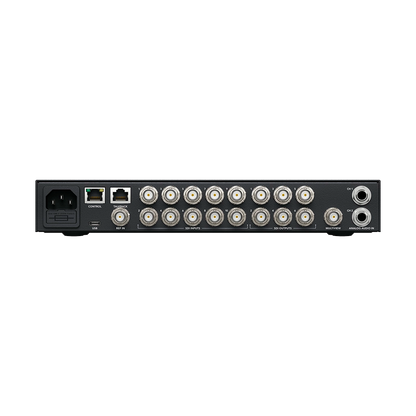

Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output |
Video Standard Compliance | SMPTE 292M/296M/424M/425M-A/425M-B |
HDCP Support | None |
IP Video | 1280 x 720 to 1920 x 1080 Encoding |
Display
Display Size | 2.2" |
Hardware
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 |
Power Connector | 1 x IEC C14 Input |
Power Consumption | Device: 36 W |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General
Rack Form Factor | 1 RU |
Dimensions | 27.9 x 17.63 x 4.42 cm |
Weight | 1.87 kg |
