Blackmagic Design ATEM 1 M/E Advanced Panel 20
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Colour Backlit Buttons
Choose options
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Colour Backlit Buttons
- Control Panel for ATEM Switchers
- 20 Input Buttons
- 2 System Control LCDs
- 4 x Upstream & 4 x Downstream Keyers
- 1 x M/E Row
- Joystick for Precise DVE Control
- Ergonomically Designed T-Bar
- Single-Button Fade to Black
- Dedicated Preview Transition Button
- Colour Backlit Buttons

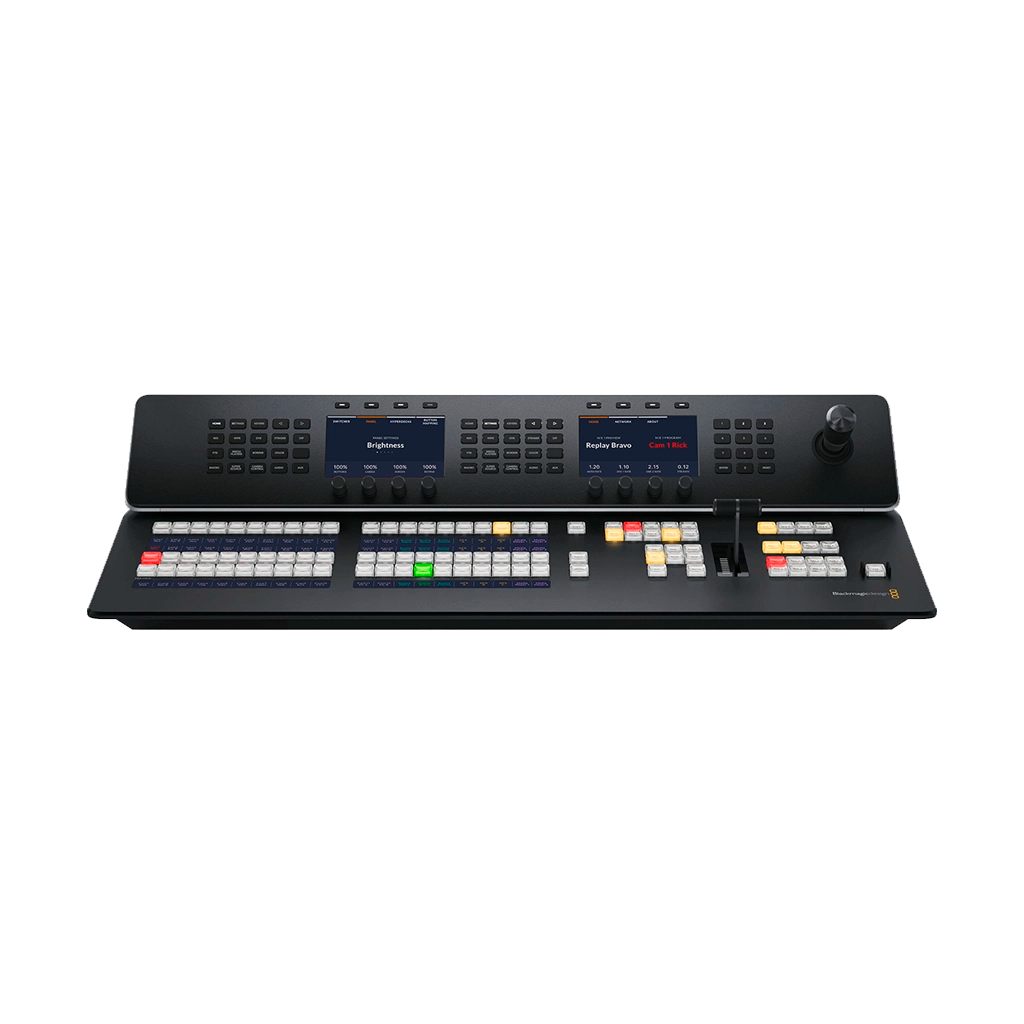

The Blackmagic Design ATEM 1 M/E Advanced Panel 20 offers you the ability to control your BND ATEM. With the Blackmagic Design ATEM 1 M/E Advanced Panel 20 you have access to all the features of any BlackMagic Design ATEM Switcher, providing tactile accessibility along with two independent system control LCDs from where you can manage switching tasks during production.
On the rear of the Blackmagic Design ATEM 1 M/E Advanced Panel 20 you will find four-port Ethernet connectivity to ensure no additional network equipment is required. It will also ensure the unit will seamlessly integrate into any live production application.
A wide array of colour backlit buttons, 20 input buttons, and buttons for controlling up to four upstream and four downstream keyers also four M/E rows. On the Blackmagic Design ATEM 1 M/E Advanced Panel 20 there is a dynamic 3-axis joystick as well as an ergonomically designed T-bar to facilitate precise, real-time DVE control. This provides targeted adjustments prowess for wipes, fades, and other broadcast transitions. In addition to allowing you to create adjustable auto transitions, the panel has a dedicated preview transition button and a single-button Fade to Black option that is applicable to the entire output, all at once.
On the Blackmagic Design ATEM 1 M/E Advanced Panel 20 there is also a USB-C port for firmware updates. Mains power is provided via an optional power cord connected to the IEC input, which also offers a second input option for redundant power. Due to the compact design, the unit will easily fit into standard equipment racks for it to be integrated into fly-away kits or broadcast trucks.
Select and Customize Transitions
The Blackmagic Design ATEM 1 M/E Advanced Panel offers you dedicated buttons for each transition type. A system control LCD will display all the options for the transition, this will allow you to change the parameters without navigating through menus. That gives you multiple ways to switch. Simply select a new source on the preview bus, then press CUT for a cut transition or AUTO to use the selected transitions such as mix, dip, wipe or DVE.
Mix, Dip, Wipe, DVE and More
Mix transition will smoothly blend between sources just like an NLE cross dissolve. Standard SMPTE wipes are included and wipes can have edge softening for smooth dreamy transitions that are more exciting than simple cross dissolves. Dip transitions create a dip-to-colour effect, however, because you can dip to any video source, you could create really innovative effects! DVE transitions use the DVE to create crazy moves where the whole foreground image moves./p>
Transform Wipes Into Exciting Effects
Prameters can be transformed into existing effects by accessing transitions. Wipe patterns can be selected directly on the LCD, customisation can also be performed to suit your production style. Parameters can also be adjusted, such as symmetry, and softness as well as the width and softness of borders.
Get Perfect Green Screen Keying
The system control knobs are ideal for when doing chroma keying, for finely adjusting parameters and cleaning key edges. Unlike software control where you need to look at the user interface, the ATEM Advanced Panels have control knobs that you can hold while adjusting key parameters and looking at the video output live to ensure the key is seamless. Only fine adjustment of key settings live while watching the video, ensures your key is perfect.
Manually Blend Transitions
Live performances does require transitions to be controlled manually, the T-Bar control lets you ride transitions perfectly as part of the live performance.
Perfect and Predictable Transitions
Just below the panel fader bar is the auto transition button. Selecting auto will instantly perform the transition type you have set. This ensures you can accurately select your source and transition type before triggering the action, so you always know what is going to happen and there's much less chance of mistakes going to air. Auto transitions can be programmed for durations from 1 to 250 frames and the benefit is each transition is consistent through your program.
Simulate New Effects While On Air
On the Blackmagic Design ATEM 1 M/E Advanced Panel you will find a preview button, this allows you to preview a transition before it is activated live on air and making mistakes. This allows for preparing of complicated transitions and multi-layered key effects.
Finish Your Program with Style
The entire output of the switcher is controlled by the fade to black button. Selecting the FTB smoothly fades the programme output at a preset transition rate.
Because FTB ends all processing, all video layers will also fade together, audio can even also be faded along with video. You will even find button guards to prevent accidental pressing of these buttons.
Get Precise DVE Control
Simply by moving the joystick, you are able to move elements around on the screen. Offering full 3 Axis control (X, Y and Z) positions of wipe and position the ATEM Constellation DVEs. It is also ideal to position pictures in live pictures, you can scale or resize the image to create the perfect picture.
Change Switcher Settings from the Menus
On the Blackmagic Design ATEM 1 M/E Advanced Panel each system control LCD features a direct access keypad with a button for each function and LCD and soft knobs and buttons. Pressing a keypad button to see the parameters being displayed on the large LCD so you can use soft buttons and knobs to change settings.
Change Video Outputs with a Single Button Press
Along with each button, each M/E row features a dedicated "select bus" for routing video into processing and selecting sources to the aux outputs. With so many aux outputs, you can select any source into any output, just like an SDI router. Conveniently located above the ME row buttons, the select bus lets change sources with a single button press so it's very fast to use. There are even labels to show you what source is on each button. The select bus also lets you directly select inputs for other internal processing such as the keyers and DVE.
Manage Built-In Graphics and Titles
The Blackmagic Design ATEM 1 M/E Advanced Panel enables you to select stills from the media pool in the panel LCD menus, then simply with the press of the media button, you are able to access the media player and change which image in the media pool is sent to the media player as a video source. You can select any loaded still by scrolling through the list of media pool images, which are listed showing the original file name of each image. This means you can quickly change stills and titles right from the same panel you are working on, eliminating the need to change control panels just to change a title.
Trigger Macros at the Touch of a Button
Built-in macros are another benefit, enabling you to easily record your own custom macros and trigger them at the press of a button. So no computer is needed, you trigger from the same panel switching from. Because the macros are stored inside the ATEM Constellation, if any changes are made they will appear on all connected hardware or software control panels.
Control Your ATEM Switcher from Anywhere in the World
The Blackmagic Design ATEM 1 M/E Advanced Panel uses an ethernet connection to the ATEM Constellation, herewith you are able to set up any combination of panels needed. Now you can have multiple panels working together in parallel and at the same time from anywhere in the world.
