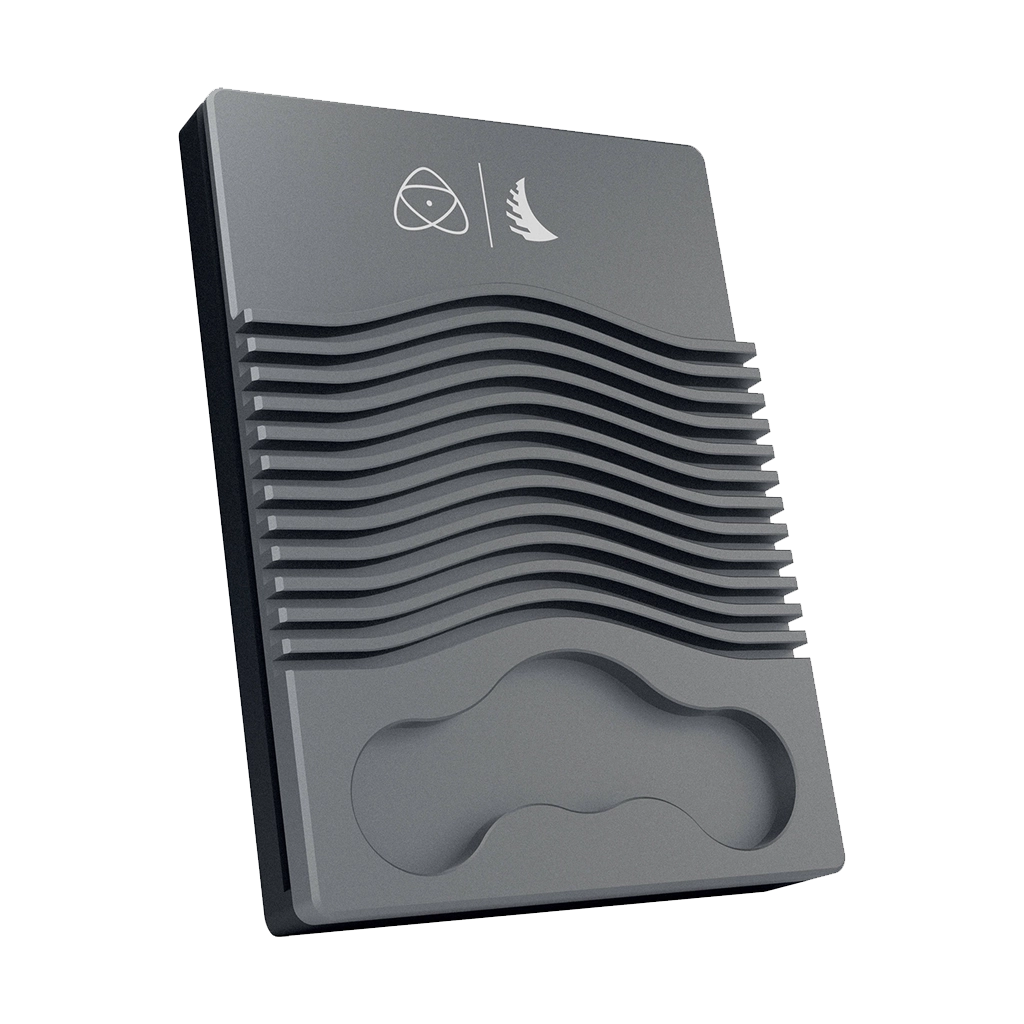

Angelbird Atomos Master Caddy 4K RAW (500GB)
Choose PayGate at checkout for MobiCred Payments.
- 500GB SSD Designed for Atomos Products
- For Sumo, Shogun, and Ninja Series
- Unified Caddy/SSD Design
- No Assembly Required
- ECC and TRIM Support
- Up to 560 MB/s Sequential Read Speed
- Up to 530 MB/s Sequential Write Speed
- CNC-Machined Housing
Orms Bellville
Orms Cape Town
Angelbird Atomos Master Caddy 4K RAW (500GB)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 500GB SSD Designed for Atomos Products
- For Sumo, Shogun, and Ninja Series
- Unified Caddy/SSD Design
- No Assembly Required
- ECC and TRIM Support
- Up to 560 MB/s Sequential Read Speed
- Up to 530 MB/s Sequential Write Speed
- CNC-Machined Housing
Choose PayGate at checkout for MobiCred Payments.
- 500GB SSD Designed for Atomos Products
- For Sumo, Shogun, and Ninja Series
- Unified Caddy/SSD Design
- No Assembly Required
- ECC and TRIM Support
- Up to 560 MB/s Sequential Read Speed
- Up to 530 MB/s Sequential Write Speed
- CNC-Machined Housing
The Angelbird Atomos Master Caddy 4K RAW (500GB) was made to interface directly with Master Caddy products for Atomos that support 4k video (HD video).
Atomos's Sumo, Shogun, and Ninja series recorders in the Inferno, Flame, Studio, and Assassin categories will support these drives.
The Angelbird Atomos Master Caddy 4K RAW (500GB) includes TRIM memory management and ECC to provide stable and fast read/write speeds. The drive features up to 560 MB/s sequential read speed with 540 MB/s sustained read speed and up to 530 MB/s sequential write speed with 500 MB/s maintained write speed.
Compatibility
- Sumo
- Shogun
- Shogun Inferno
- Shogun Studio
- Shogun Flame
- Ninja Assassin
- Ninja Flame
Drive Features
- Temperature sensor
- Overload protection
- TRIM
- Built-in EDC, ECC function
- EMS protection
- Adaptive thermal protection
Angelbird Atomos Master Caddy 4K RAW (500GB)
Storage Capacity | 500 GB |
Capacity | 500 GB |
Interface | SATA 6 Gb/s |
Interface | SATA III (6 Gb/s) |
Write Speed | Up to 510 MB/s |
Transfer Speed | Up to 550 MB/s |
Maximum Read Speed | 560 MB/s 540 MB/s |
Maximum Write Speed | 530 MB/s 500 MB/s |
IOPS | Up to 86,000 |
Access Time | Approx. 65 µs / 40 µs (R/W) |
MTBF | >1,500,000 hours |
Endurance (Total Bytes Written) | 1500 TB |
ECC | Built-in DEC/ECC function |
Data Retention | 10 years at 77°F / 25°C |
Mean Time Between Failures (MTBF) | 2,400,000 Hours |
Input Voltage | 5 VDC ±10% |
Power Usage | Idle: 1.35 W Max.: 4.7 W |
DC Input Power | 5 VDC |
Shock Resistance | 1000 G/0.5 ms |
Power Consumption | 1.35 W (Idle) 4.7 W (Maximum) |
Vibration Resistance | 2.17 Grms |
Compliance | RoHS, FCC, CE, REACH |
Certifications | CE, FCC, REACH, RoHS, as per Manufacturer |
Dimensions | 104 x 75.5 x 15.4 mm |
Operating Temperature | -20 to 105°C |
Storage Temperature | -40 to 85°C |
Weight | 220 g |
Operating Humidity | 5 to 95% |
Operating Shock | 1000 G / 0.5 ms |
Operating Vibration | 2.17 G |
Dimensions | 104 x 75.5 x 11.7 mm |
Weight | 220 g |
